Forward Flushing Setup

  1. Install both GE 45268-9  fitting O-ring onto GE 45268-10  adapter.

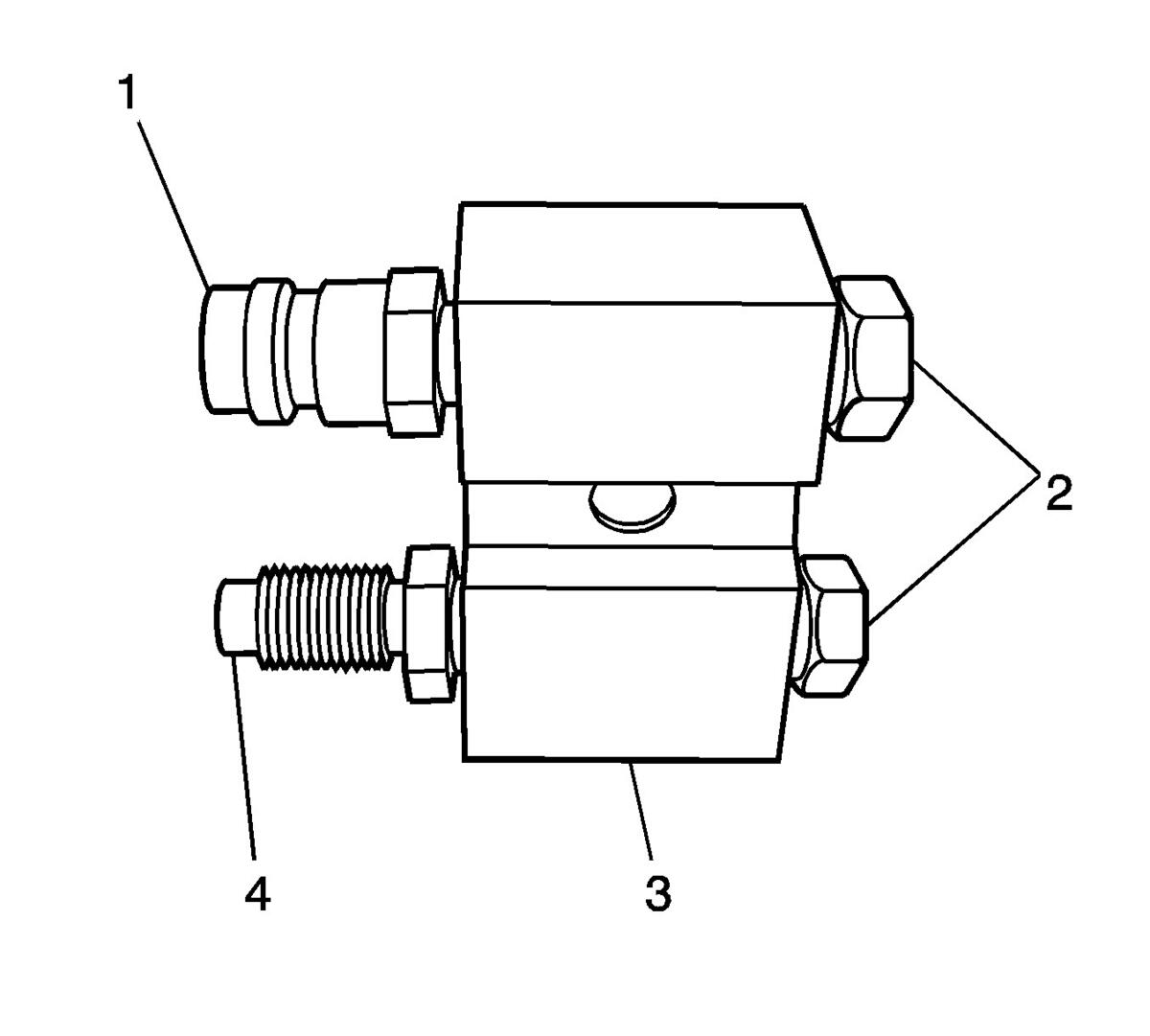

    Fig 1: Identifying J 45268-2, J 45268-7, J 45268-8 & J 45268-9
    GM1162447Courtesy of GENERAL MOTORS COMPANY
    NOTE: Forward flow refrigerant flushing is recommended for contaminated refrigerant or PAG oil.
    NOTE: Inspect and lubricate GE-45268  adapter kit fitting O-rings. Refer to Air Conditioning O-Ring Seal Replacement .
  2. Install GE 45268-8  fitting O-ring onto suction side of GE 45268-10  adapter.
  3. Install GE 45268-7  fitting O-ring onto discharge side of GE 45268-10  adapter.
