Floor Rear Air Outlet Duct Replacement - Left Side

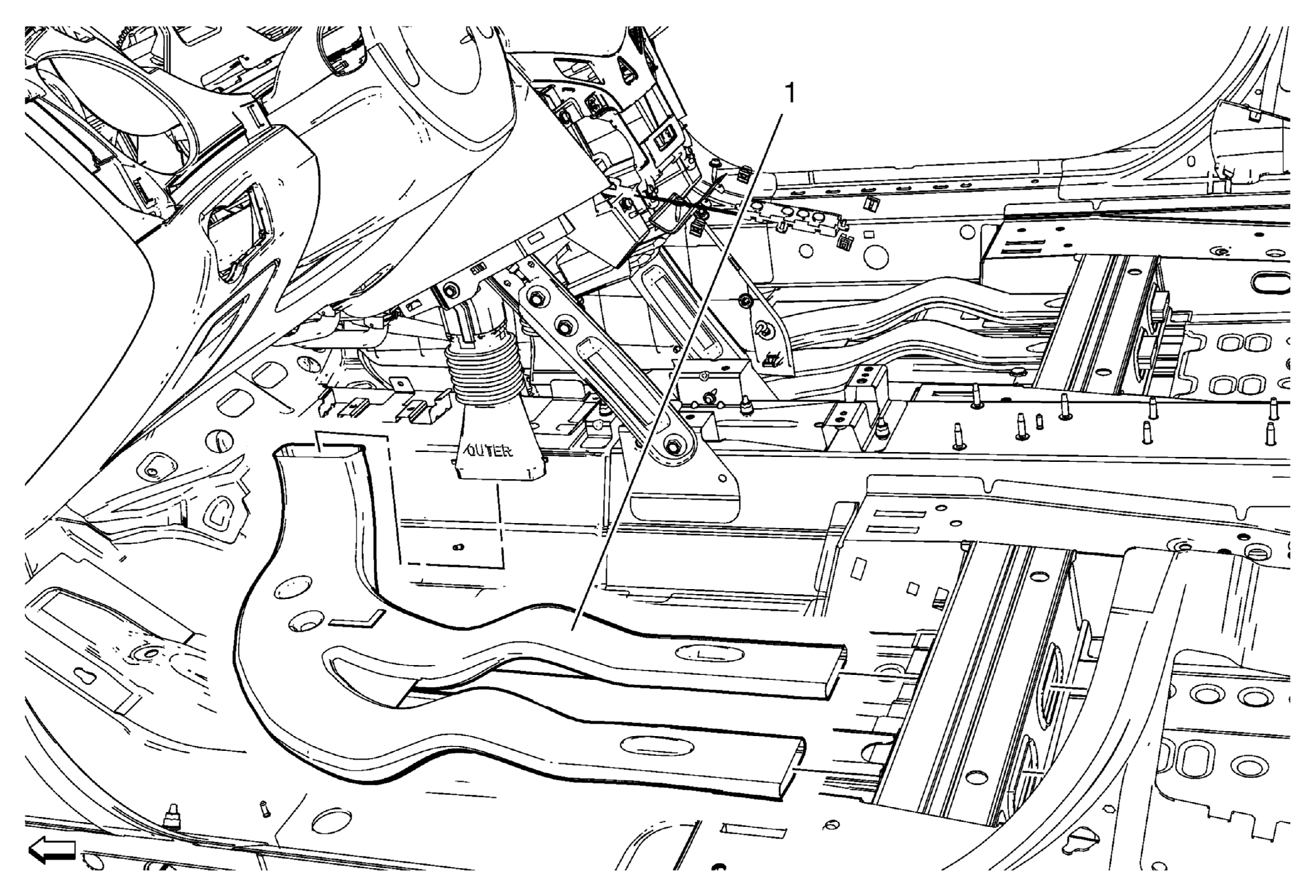

Fig 1: Floor Rear Air Outlet Duct - Left Side
GM2027598Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedures
Remove front floor panel carpet. Refer to Front Floor Panel Carpet Replacement .
1 Floor Rear Air Outlet Duct
