Floor Front Air Outlet Duct Adapter Replacement

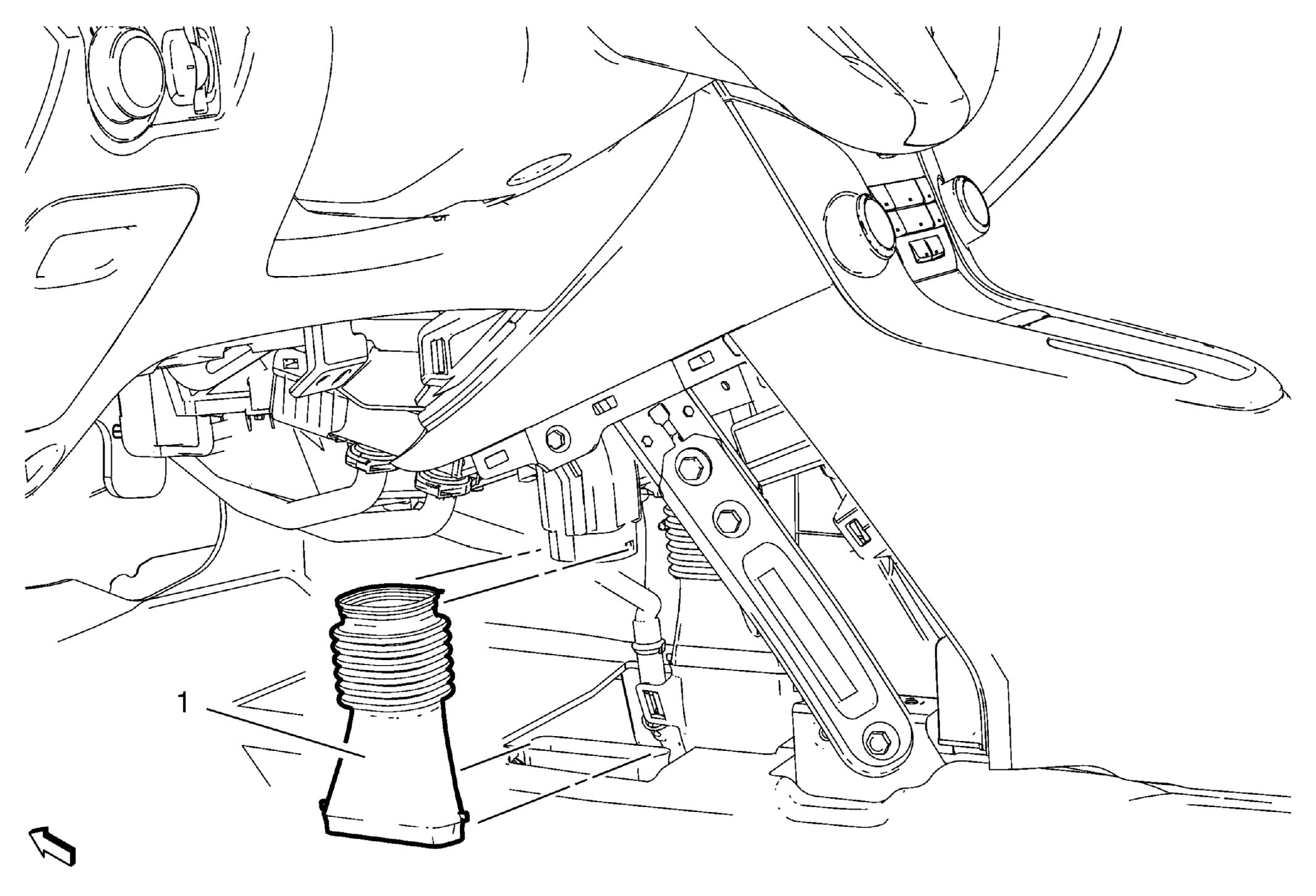

Fig 1: Floor Front Air Outlet Duct Adapter
GM2511647Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedures
Remove the instrument panel lower trim panel- left side. Refer to Instrument Panel Lower Trim Panel Replacement - Left Side .
1 Floor Front Air Outlet Duct Adapter
