Compressor Pressure Relief Valve Replacement (1.8L LUW)

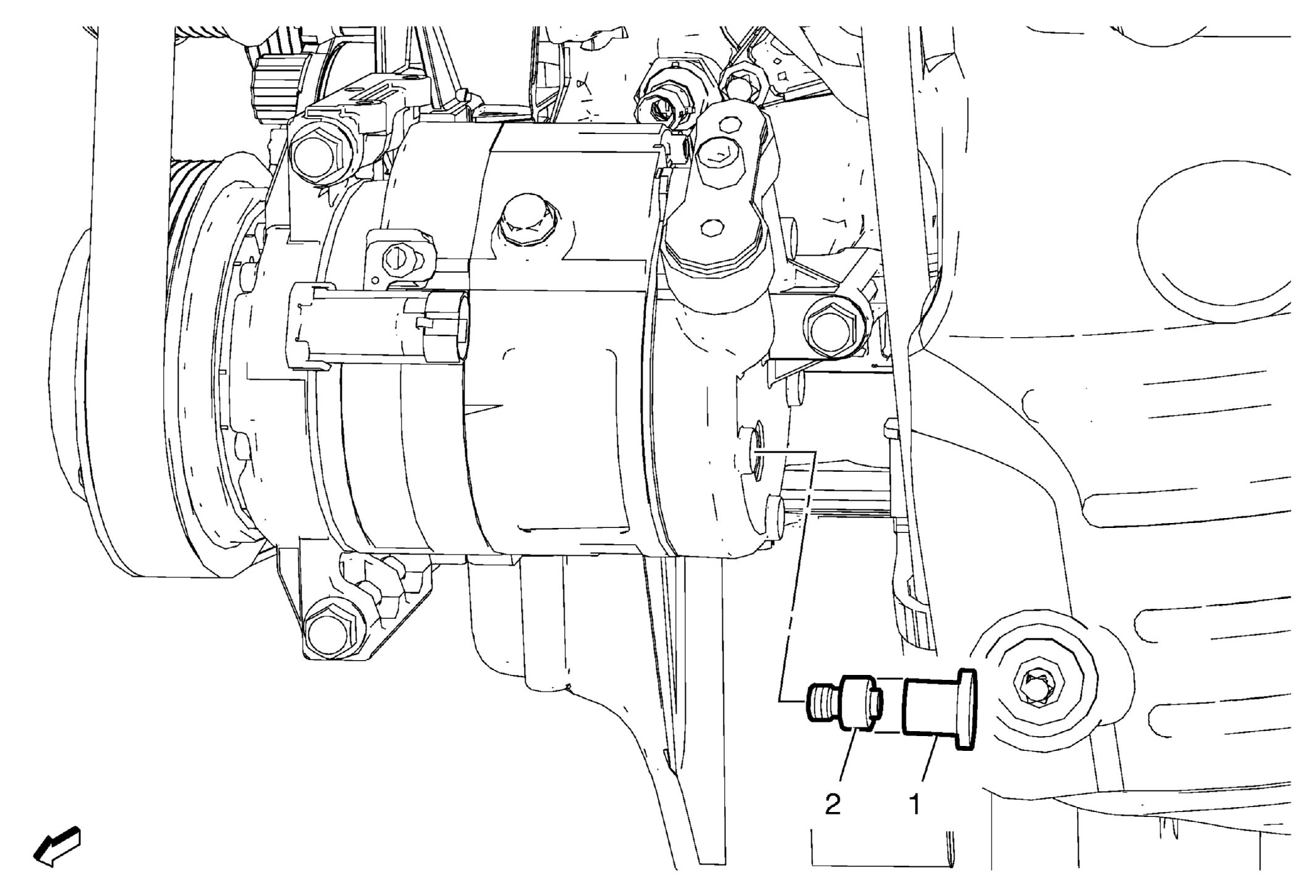

Fig 1: Compressor Pressure Relief Valve (1.8L LUW)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Recover the refrigerant. Refer to Refrigerant Recovery and Recharging .
1	Air Conditioning Compressor Pressure Relief Valve Cap
2	Air Conditioning Compressor Pressure Relief Valve CAUTION: Refer to Fastener Caution Tighten  10 N.m (89 lb in)
