Body Air Outlet Deflector Replacement

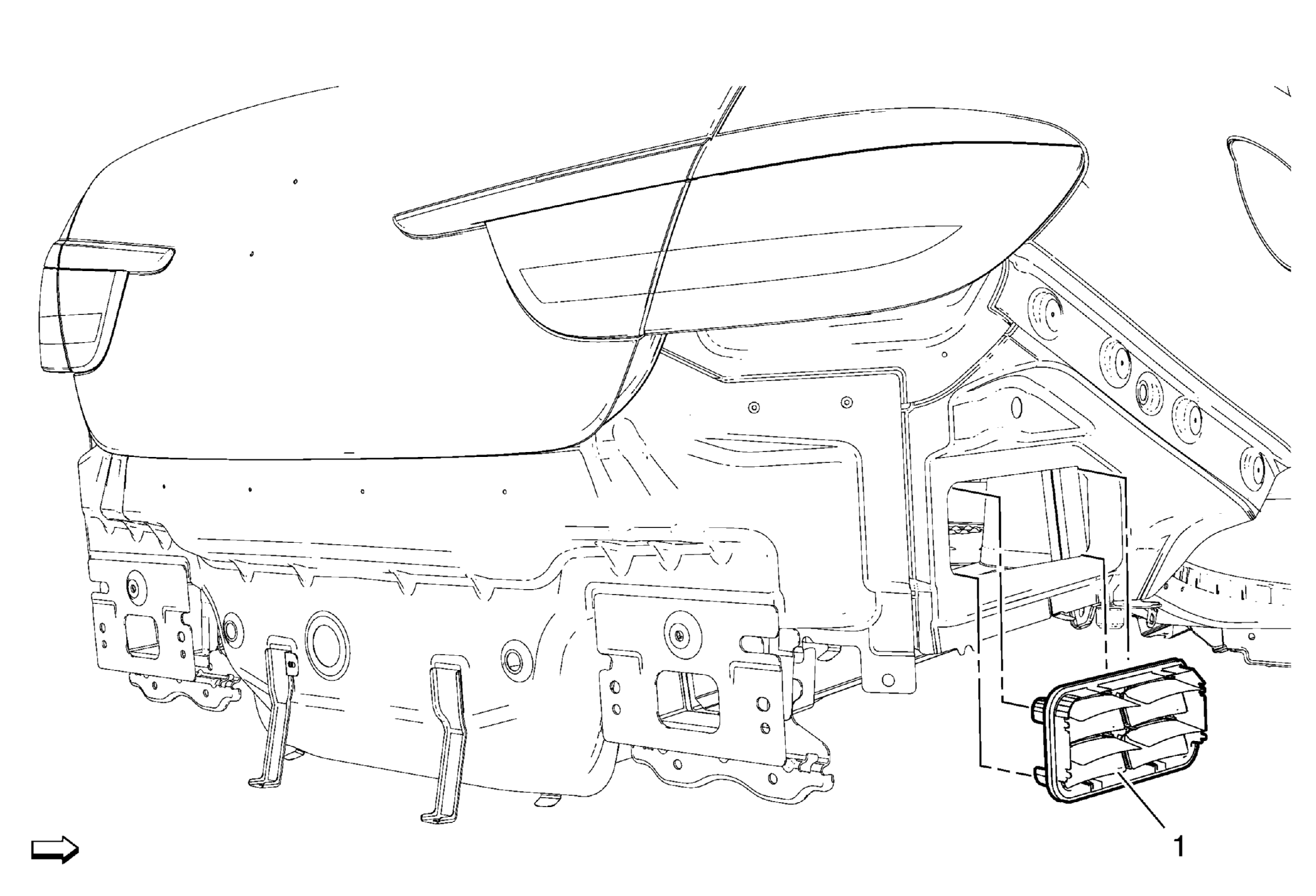

Fig 1: Body Air Outlet Deflector - (Notchback)
GM2371622Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedures
Remove the rear bumper fascia. Refer to Rear Bumper Fascia Replacement .
1 Body Air Outlet Deflector
Procedure
Unclip 4 body air outlet deflector tabs.
