Removal Procedure

  1. Recover the refrigerant. Refer to Refrigerant Recovery and Recharging .
  2. Remove the service port valve core (1) using GE-46246  remover.

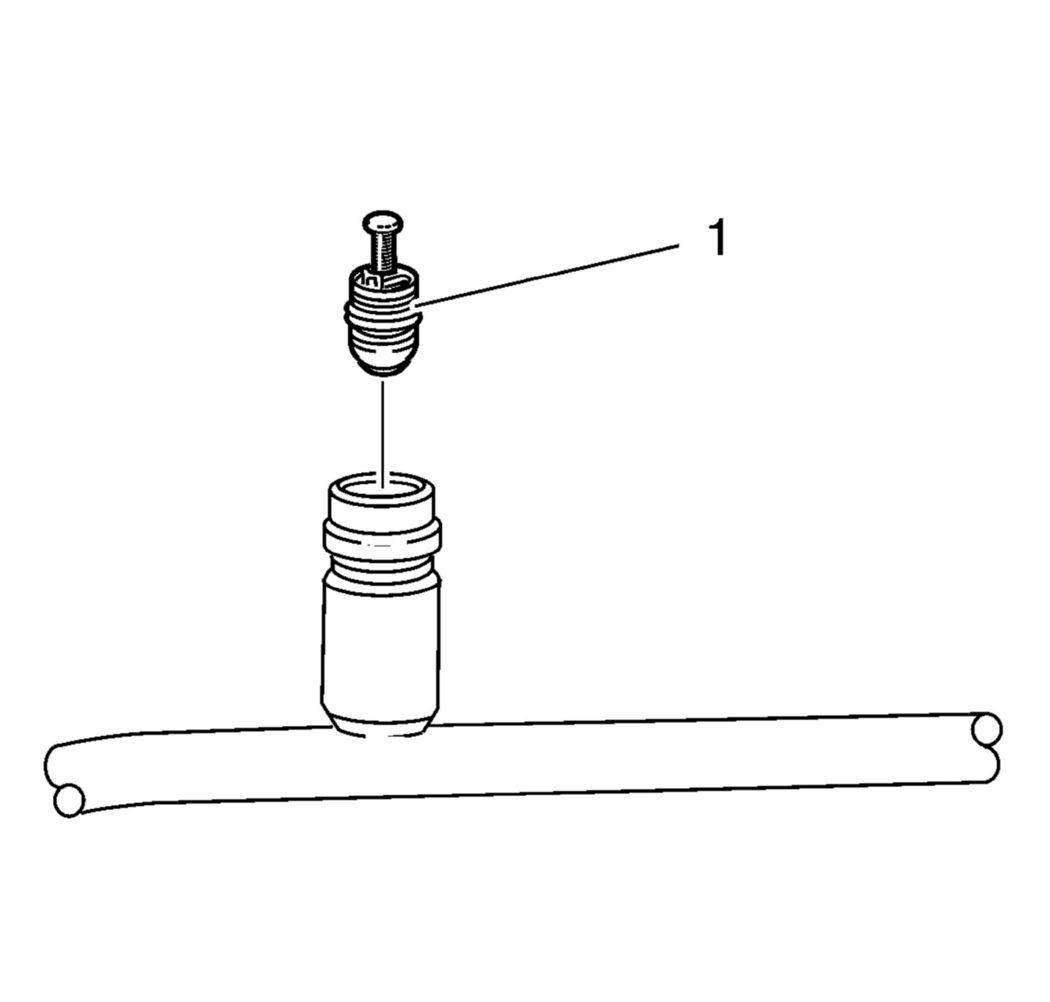

    Fig 1: Service Port Valve Core
    GM2026977Courtesy of GENERAL MOTORS COMPANY
