Installation Procedure

  1. Uncap air conditioning components.
  2. Install NEW sealing washers (3).

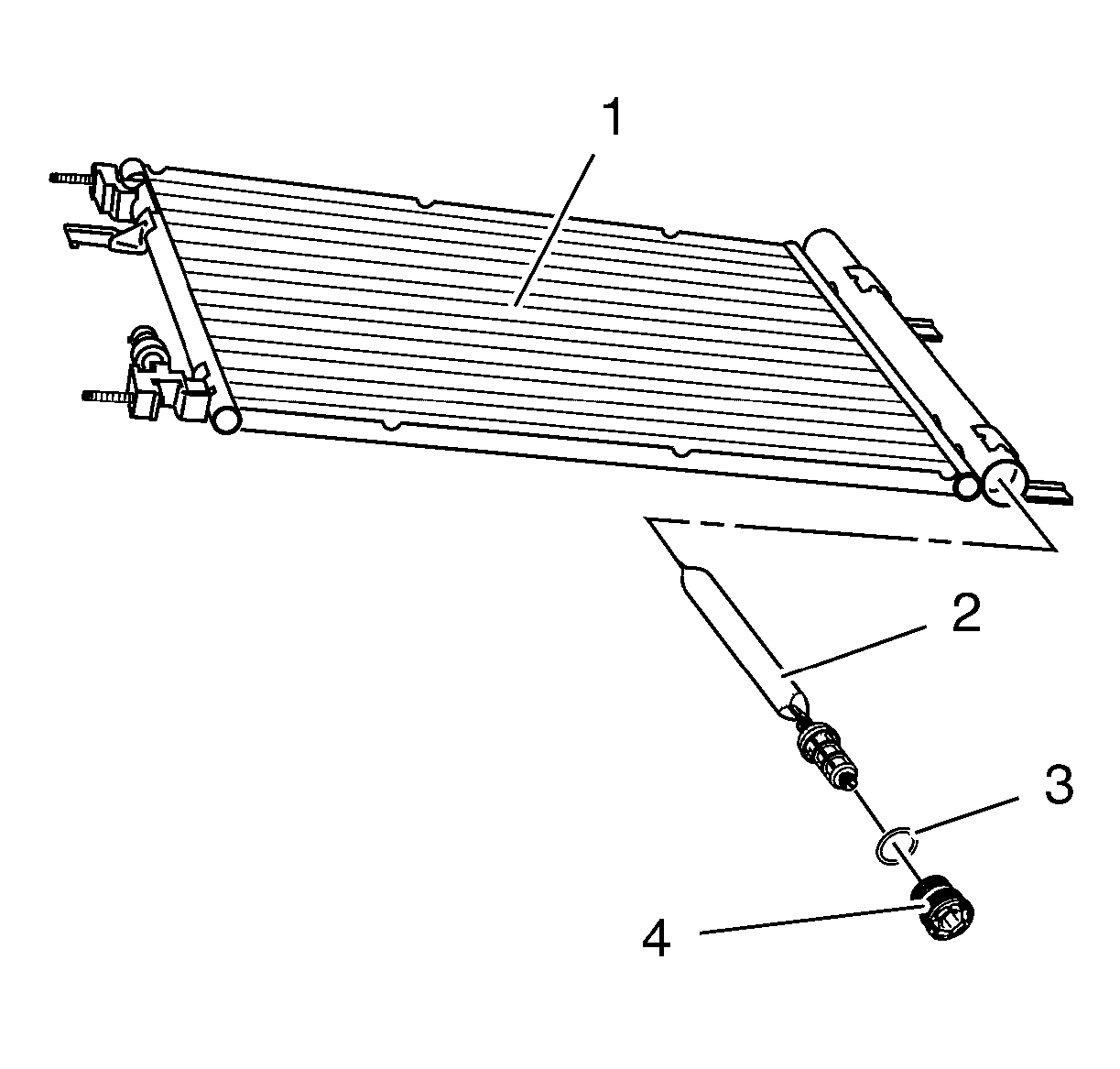

    Fig 1: Air Conditioning Receiver And Dehydrator Plug
    GM2026975Courtesy of GENERAL MOTORS COMPANY
  3. Install the air conditioning refrigerant desiccant (2) into air conditioning condenser (1).
  4. Install the air conditioning receiver and dehydrator plug (4).
  5. Install the front bumper fascia opening lower cover. Refer to Front Bumper Fascia Opening Lower Cover Replacement .
  6. Evacuate and charge the refrigerant system. Refer to Refrigerant Recovery and Recharging .
  7. Leak test the fittings using the GE 39400-A  detector.
  8. Connect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection .
