Air Conditioning Evaporator and Blower Module Drain Hose Replacement

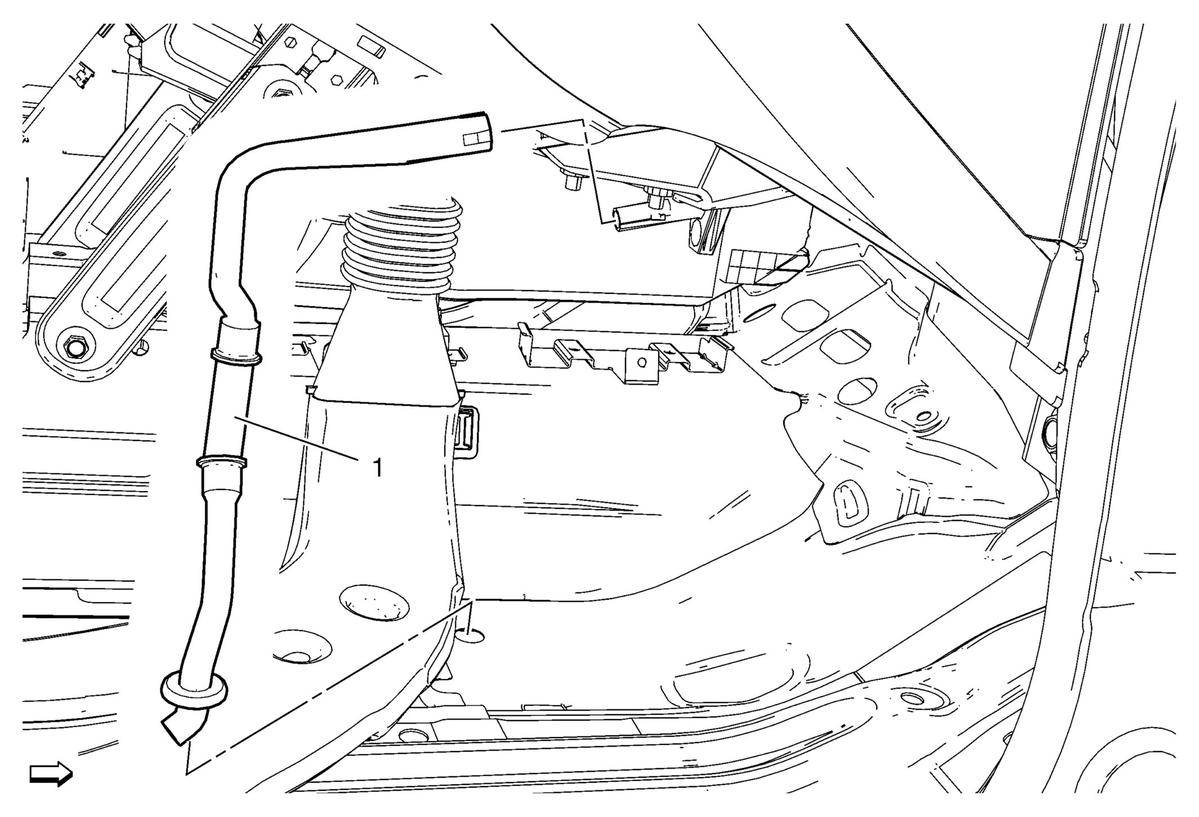

Fig 1: Air Conditioning Evaporator And Air Conditioning Blower Module Drain Hose

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures  Remove front floor panel carpet passenger side. Refer to Front Floor Panel Carpet Replacement .
1	Air Conditioning Evaporator and Blower Module Drain Hose
