Installation Procedure

  1. Install air conditioning condenser (1).

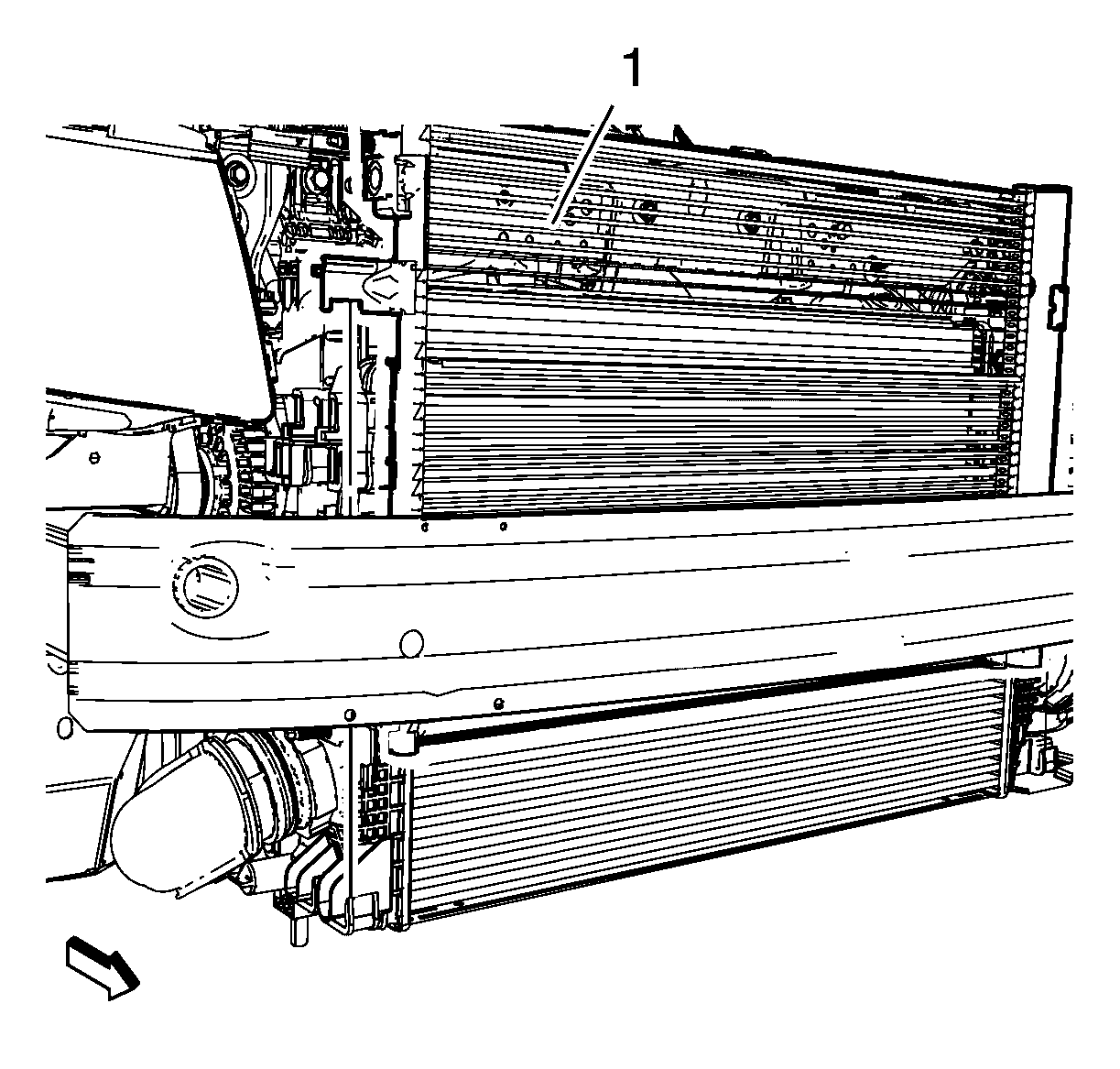

    Fig 1: Air Conditioning Condenser
    GM2028079Courtesy of GENERAL MOTORS COMPANY
  2. Install air conditioning refrigerant pressure sensor. Refer to Air Conditioning (A/C) Refrigerant Pressure Sensor Replacement .
  3. Install air conditioning condenser hose (1, 2) and air conditioning condenser hose bolt and tighten to 19 N.m (14 lb ft).

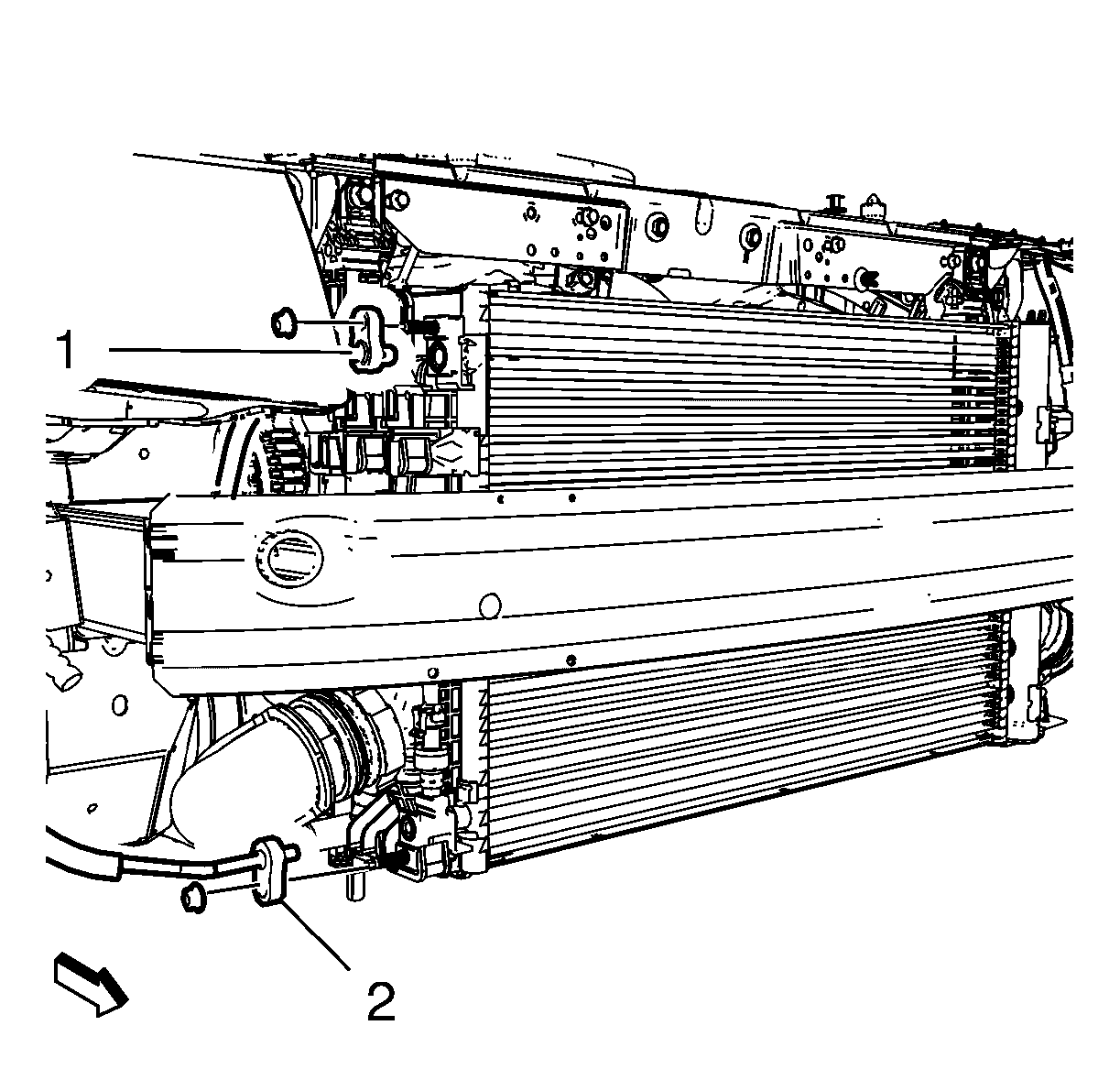

    Fig 2: Air Conditioning Condenser Hose
    GM2028076Courtesy of GENERAL MOTORS COMPANY
    CAUTION: Refer to Fastener Caution .
  4. Install air conditioning compressor and condenser hose to air conditioning condenser. Refer to Air Conditioning Compressor and Condenser Hose Replacement (2.0L Diesel LUZ) , Air Conditioning Compressor and Condenser Hose Replacement (1.4L LUV)  and Air Conditioning Compressor and Condenser Hose Replacement (1.8L LUW and LWE) .
  5. Install air intake duct (1).

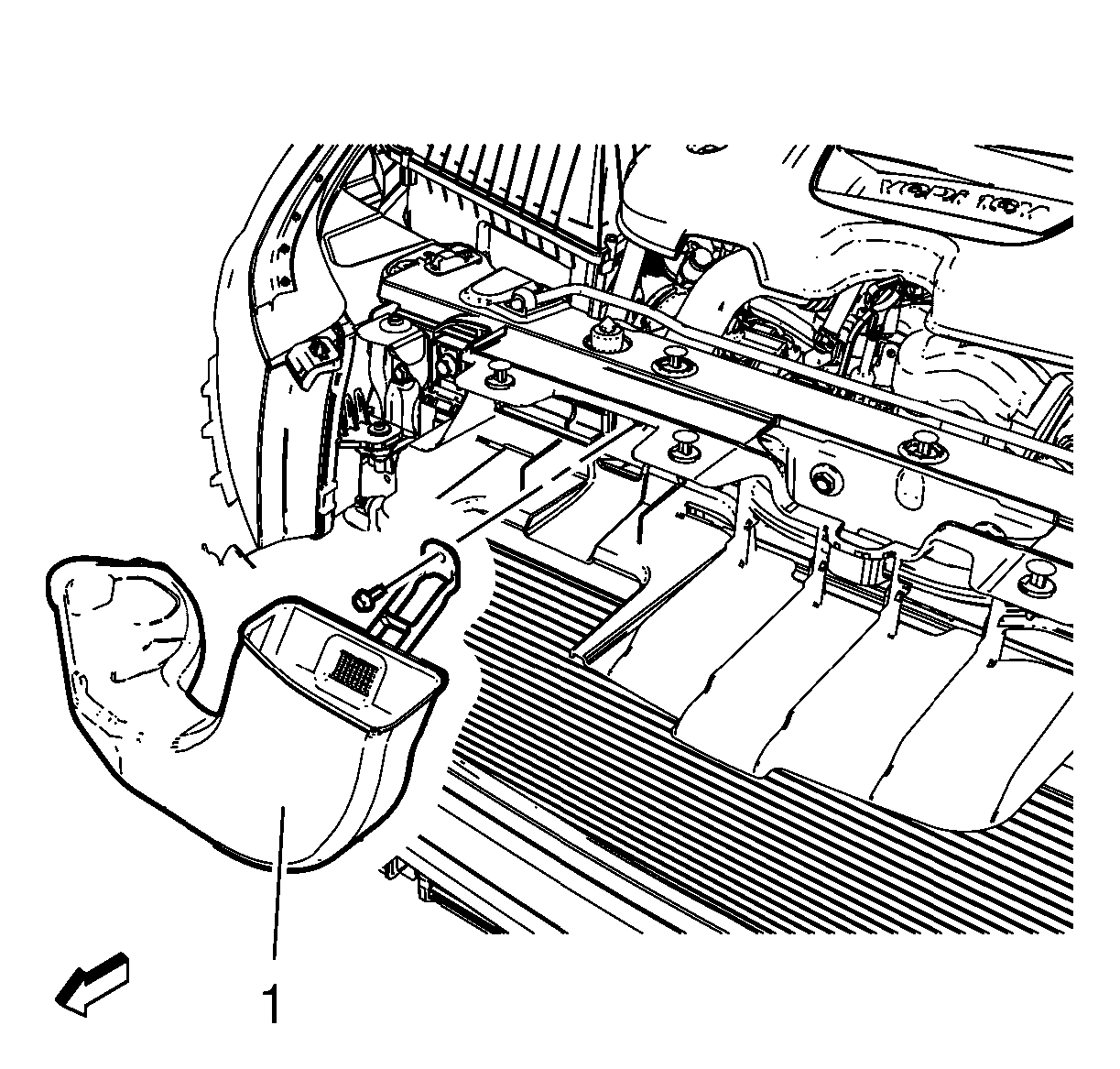

    Fig 3: Air Intake Duct
    GM2028073Courtesy of GENERAL MOTORS COMPANY
  6. Install front bumper fascia. Refer to Front Bumper Fascia Replacement .
  7. Evacuate and charge the refrigerant system. Refer to Refrigerant Recovery and Recharging .
