Installation Procedure

  1. Install the air conditioning compressor and the condenser hose (3).

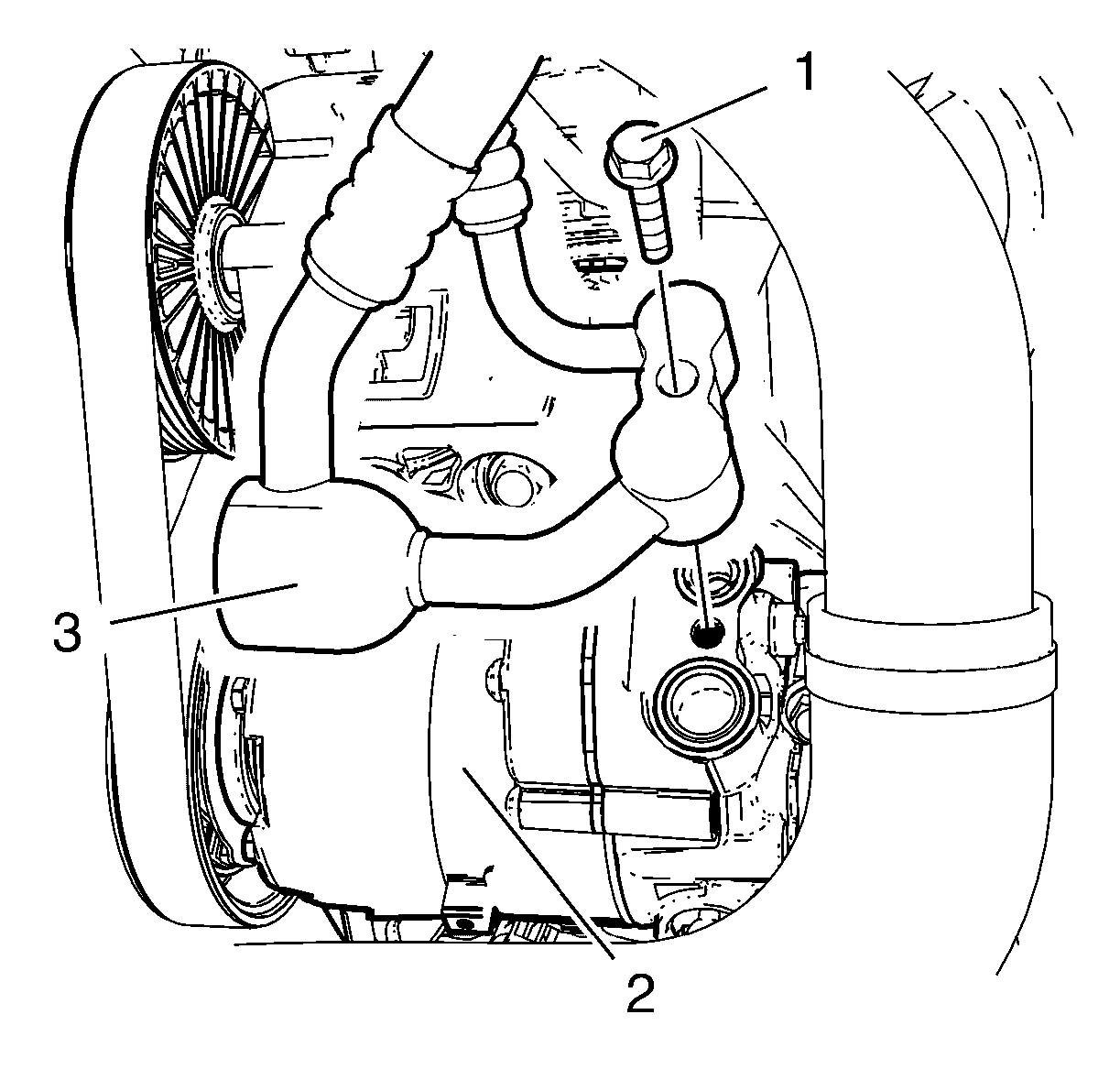

    Fig 1: A/C Compressor And Condenser Hose Bolt
    GM2189474Courtesy of GENERAL MOTORS COMPANY
    NOTE: Use NEW O-ring seals. Refer to Air Conditioning O-Ring Seal Replacement .
  2. Install the air conditioning compressor and the condenser hose bolt (1) to the A/C compressor (2) and tighten to 19 N.m (14 lb ft).
    CAUTION: Refer to Fastener Caution .
  3. Install the air conditioning compressor and the condenser hose nut (3) to the A/C condenser (4) and tighten to 19 N.m (14 lb ft).
    Fig 2: Air Conditioning Compressor, Condenser, Refrigerant Hose & Nut
    GM2189353Courtesy of GENERAL MOTORS COMPANY
  4. Install air conditioning compressor and condenser hose nut (1) to refrigerant hose (2) and tighten to 19 N.m (14 lb ft).
  5. Install the front bumper fascia. Refer to Front Bumper Fascia Replacement .
  6. Evacuate and charge the refrigerant system. Refer to Refrigerant Recovery and Recharging .
  7. Connect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection .
