Installation Procedure

  1. Install 4 NEW air conditioning compressor and condenser hose seals. Refer to Air Conditioning System Seal Replacement .
  2. Install air conditioning compressor and condenser hose.
  3. Install air conditioning compressor and condenser hose nut (1) to air conditioning evaporator hose (2). Tighten nut to 19 N.m (14 lb ft).

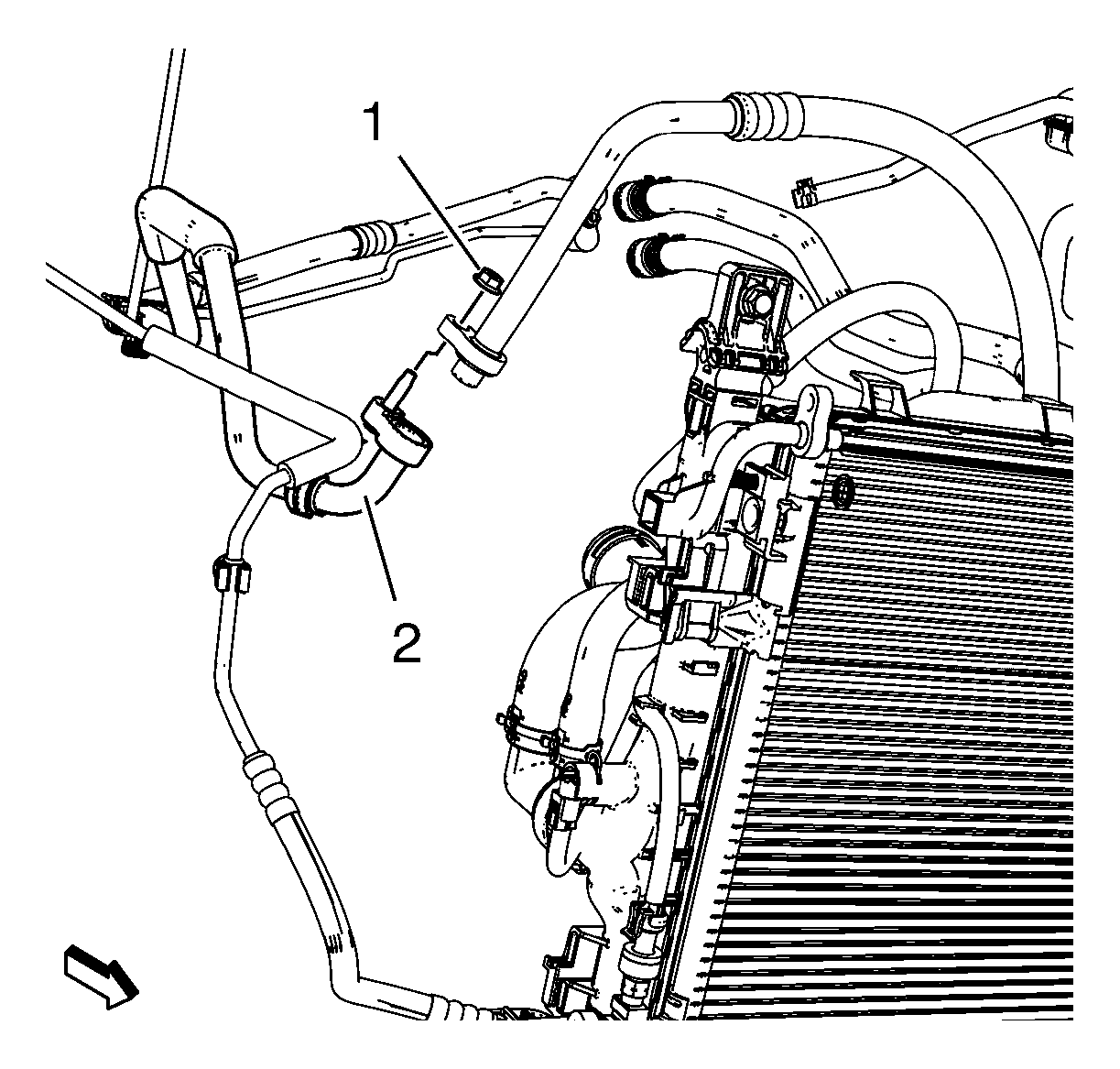

    Fig 1: A/C Compressor/Condenser Hose Nut & Refrigerant Hose
    GM2027259Courtesy of GENERAL MOTORS COMPANY
    CAUTION: Refer to Fastener Caution .
  4. Install air conditioning compressor and condenser hose bolt (1) to air conditioning compressor (2). Tighten bolt to 19 N.m (14 lb ft).

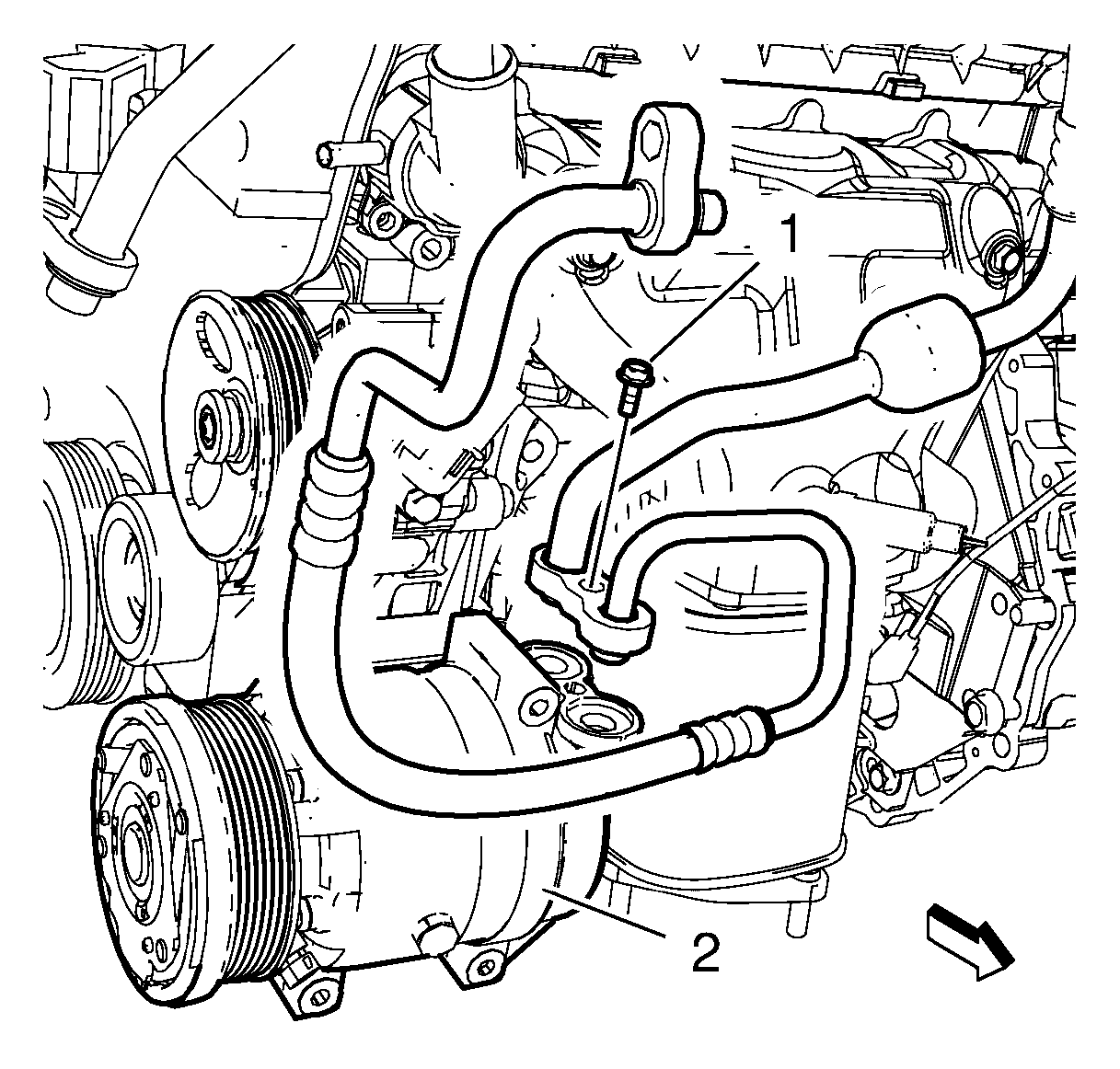

    Fig 2: Air Conditioning Compressor
    GM2189046Courtesy of GENERAL MOTORS COMPANY
  5. Install air conditioning compressor and condenser hose nut (1) to air conditioning condenser (2). Tighten nut to 19 N.m (14 lb ft).

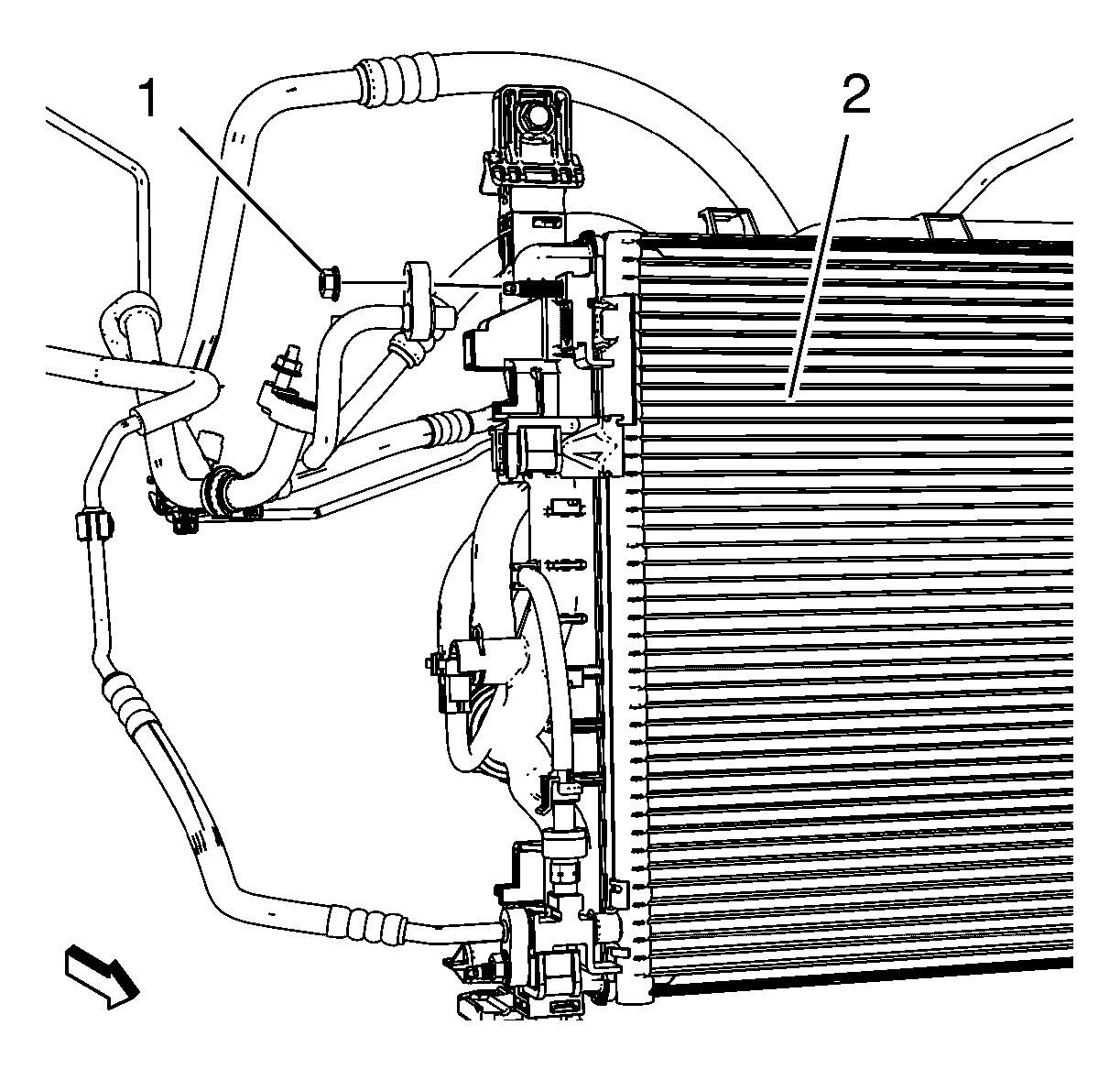

    Fig 3: Air Conditioning Condenser
    GM2027253Courtesy of GENERAL MOTORS COMPANY
  6. Install front bumper fascia. Refer to Front Bumper Fascia Replacement .
  7. Evacuate and charge the refrigerant system. Refer to Refrigerant Recovery and Recharging .
