Installation Procedure

  1. Install 4 NEW system seals to the air conditioning compressor and condenser hose. Refer to Air Conditioning System Seal Replacement .
  2. Install air conditioning compressor and condenser hose.
  3. Install air conditioning compressor and condenser hose bolt (1) tighten to 19 N.m (14 lb ft).

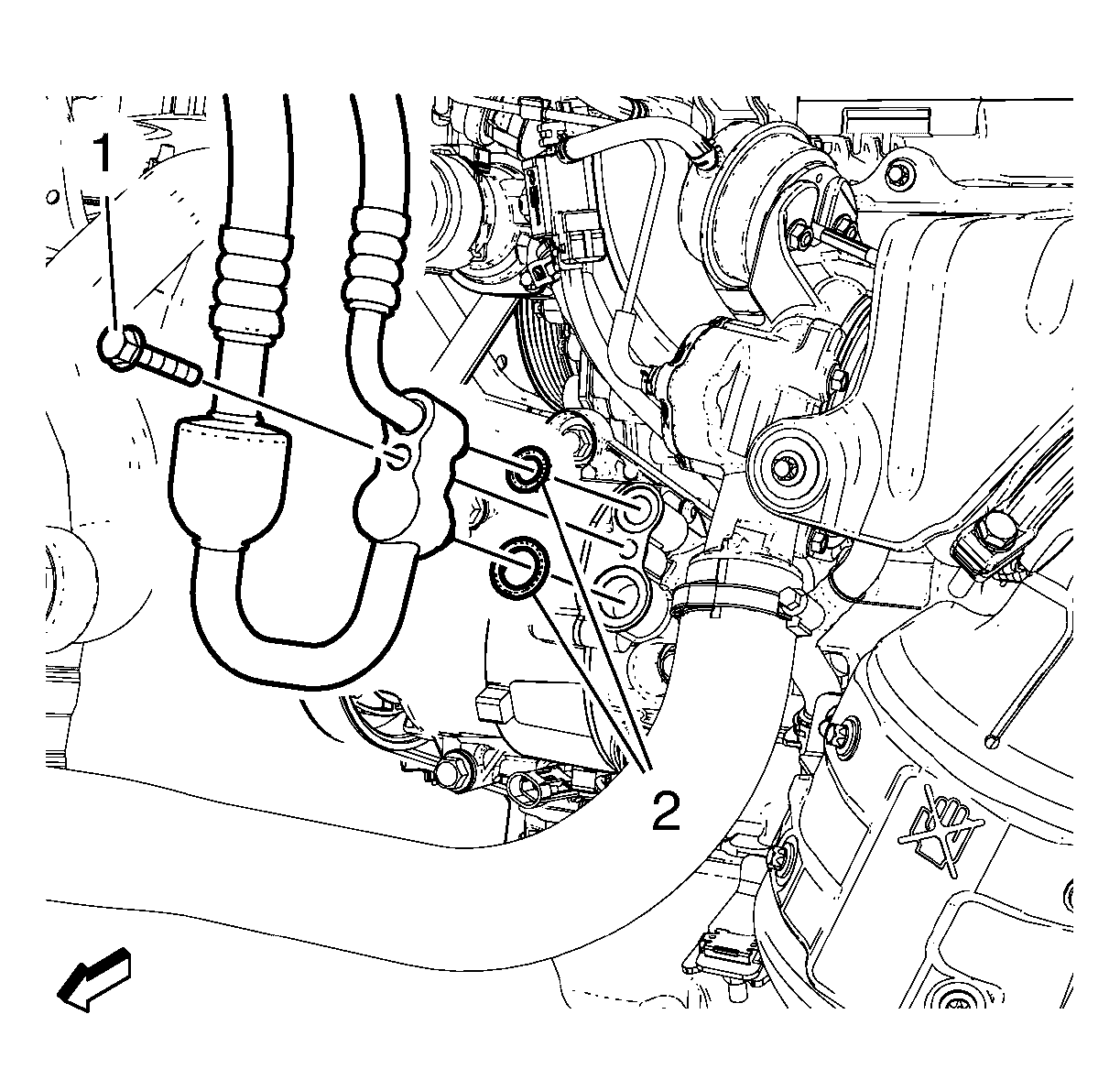

    Fig 1: Condenser Hose Bolt
    GM2189379Courtesy of GENERAL MOTORS COMPANY
    CAUTION: Refer to Fastener Caution .
  4. Install air conditioning compressor and condenser hose nut (3) to air conditioning condenser (4) and tighten to 19 N.m (14 lb ft).

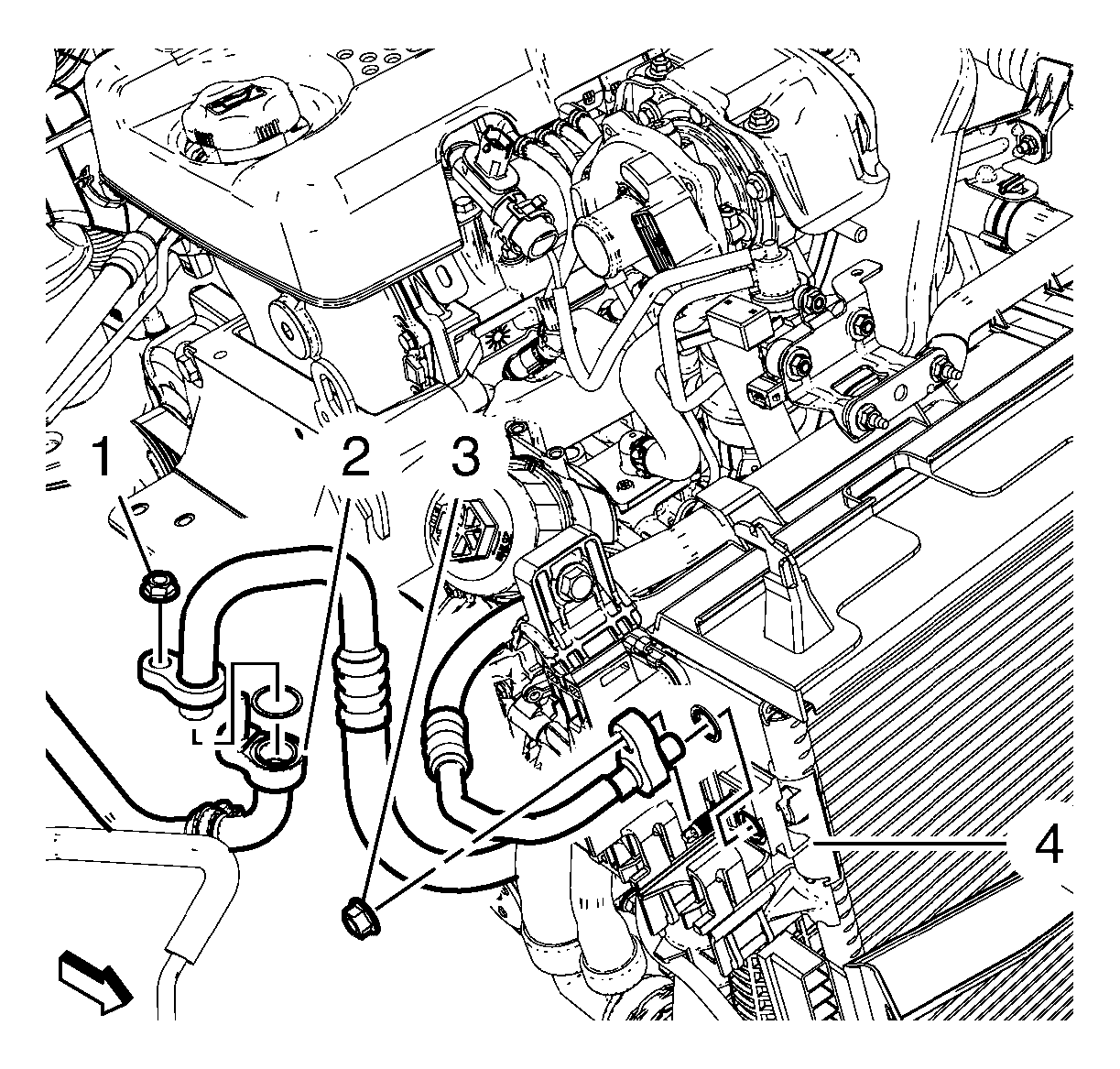

    Fig 2: Air Conditioning Compressor, Condenser, Refrigerant Hose & Nut
    GM2189353Courtesy of GENERAL MOTORS COMPANY
  5. Install air conditioning compressor and condenser hose nut (1) to air conditioning refrigerant hose (2) and tighten to 19 N.m (14 lb ft).
  6. Install headlamp - right side. Refer to Headlamp Replacement .
  7. Install front bumper fascia. Refer to Front Bumper Fascia Replacement .
  8. Evacuate and charge the refrigerant system. Refer to Refrigerant Recovery and Recharging .
