Air Conditioning Compressor Oil Drain Plug Replacement (2.0L Diesel LUZ)

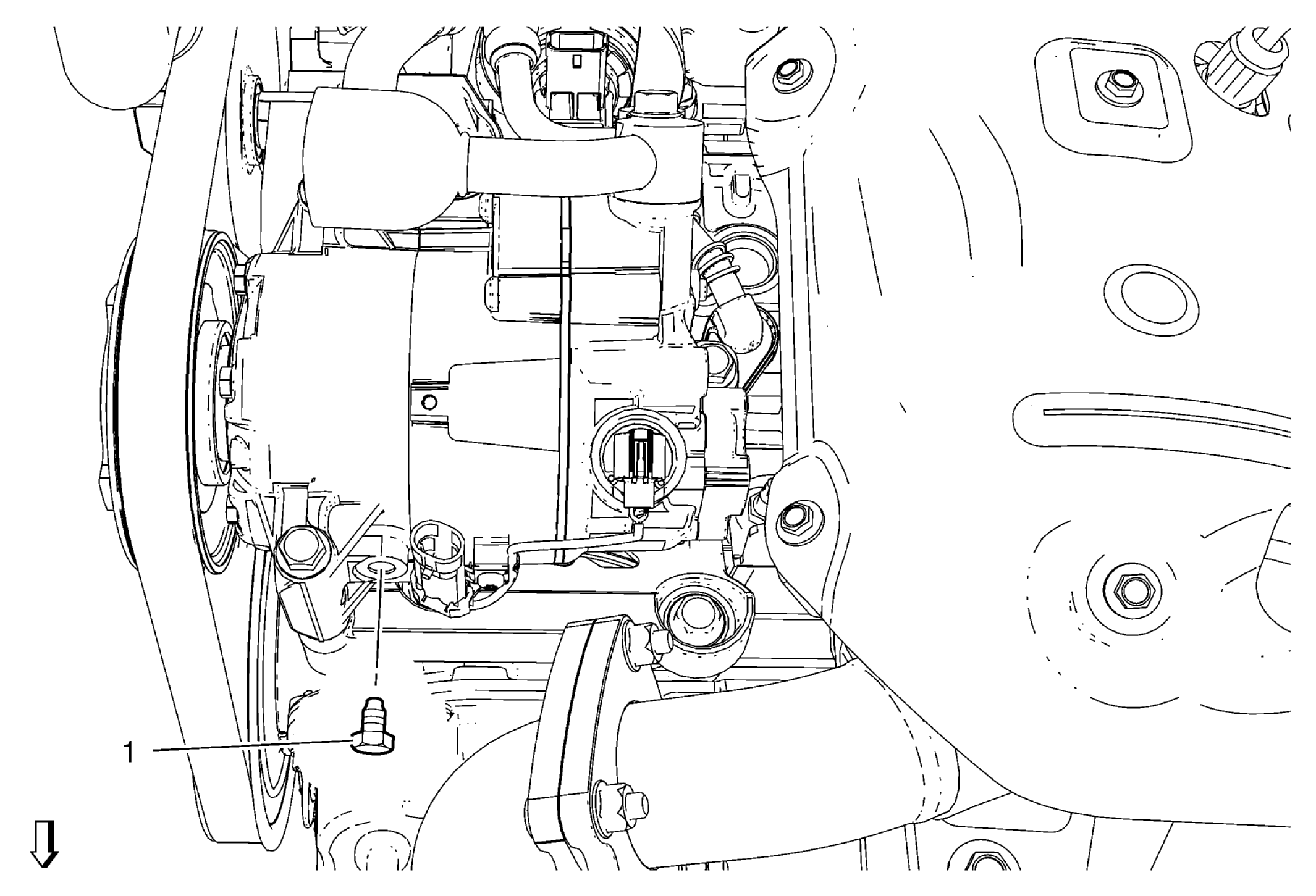

Fig 1: Air Conditioning Compressor Oil Drain Plug Replacement (2.0L Diesel LUZ)
GM2189469Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Disconnect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection .
  2. Recover the refrigerant. Refer to Refrigerant Recovery and Recharging .
  3. Remove the front compartment insulator. Refer to Front Compartment Insulator Replacement .
1 Air Conditioning Compressor Oil Drain Plug
CAUTION: Refer to Fastener Caution .

Tighten
15 N.m (11 lb ft)
