Air Conditioning Compressor Oil Drain Plug Replacement (1.4L LUV)

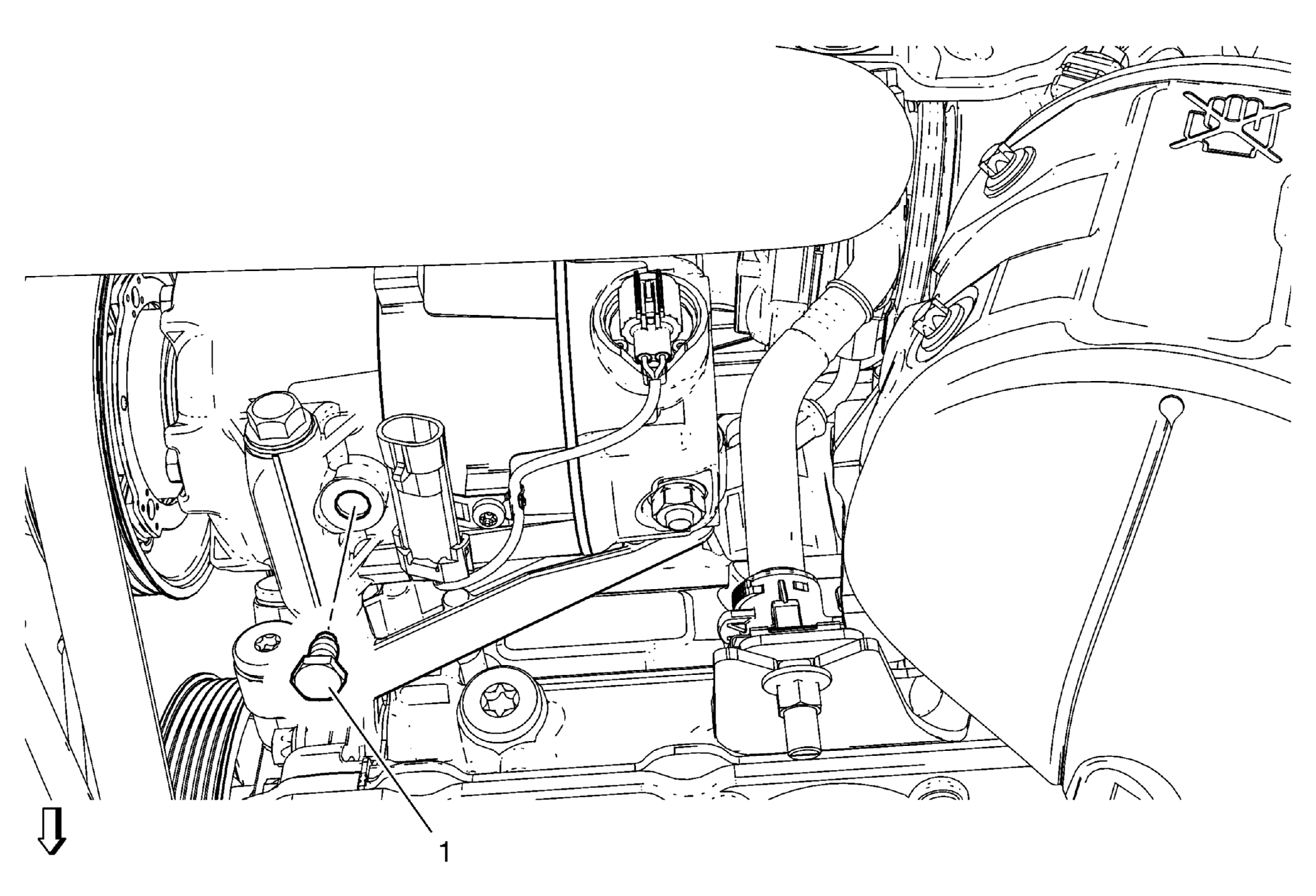

Fig 1: Air Conditioning Compressor Oil Drain Plug - (1.4L LUV)
GM2189369Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedures
Recover the refrigerant. Refer to Refrigerant Recovery and Recharging .
1 Air Conditioning Compressor Oil Drain Plug
CAUTION: Refer to Fastener Caution .

Tighten
15 N.m (11 lb ft)
