Module Power and Ground, Blower Control and Serial Data

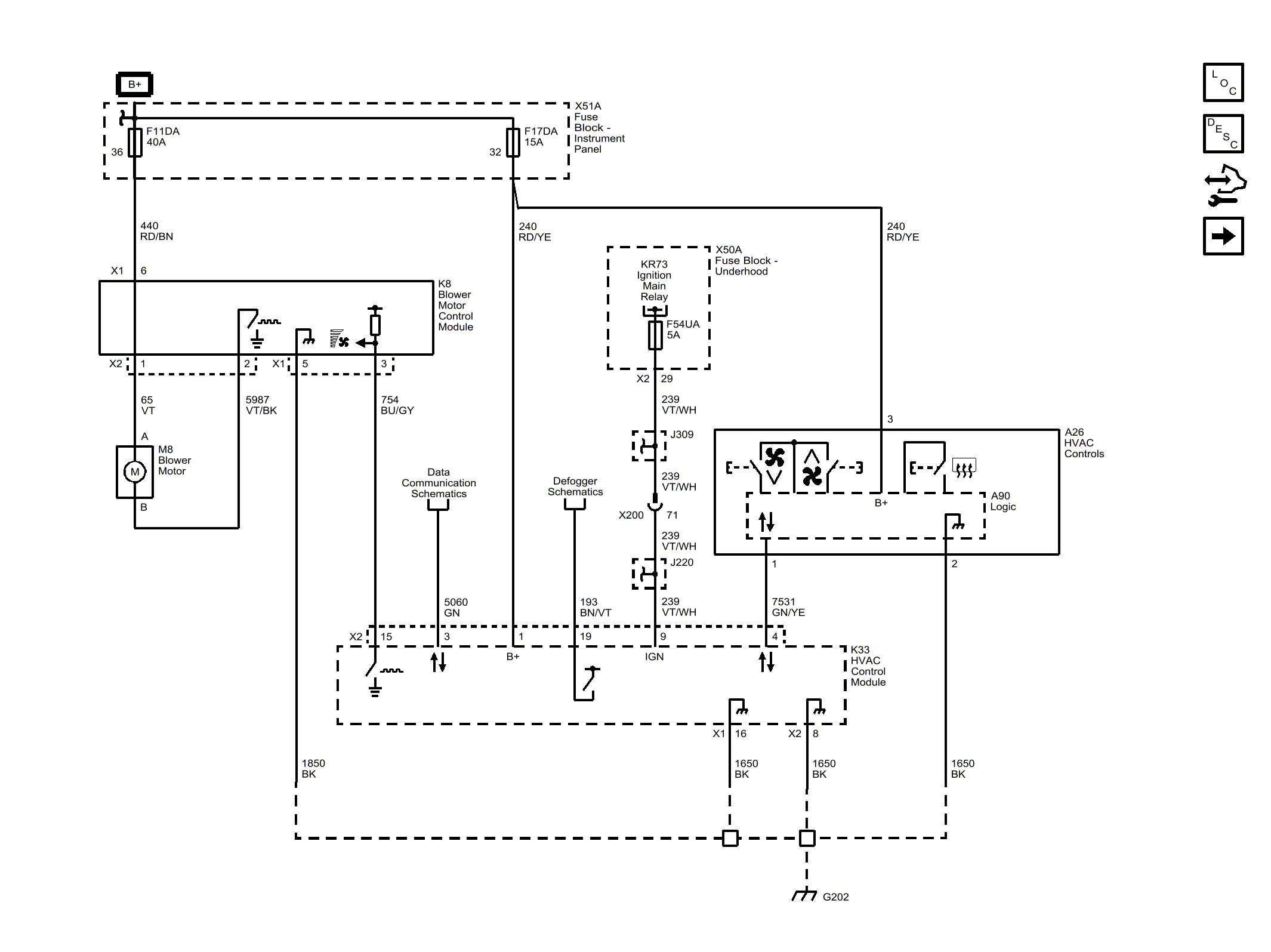

Fig 1: Module Power and Ground, Blower Control and Serial Data

GM3814476

Courtesy of GENERAL MOTORS COMPANY
