Evaporator Temperature Sensor and Compressor Controls (C67)

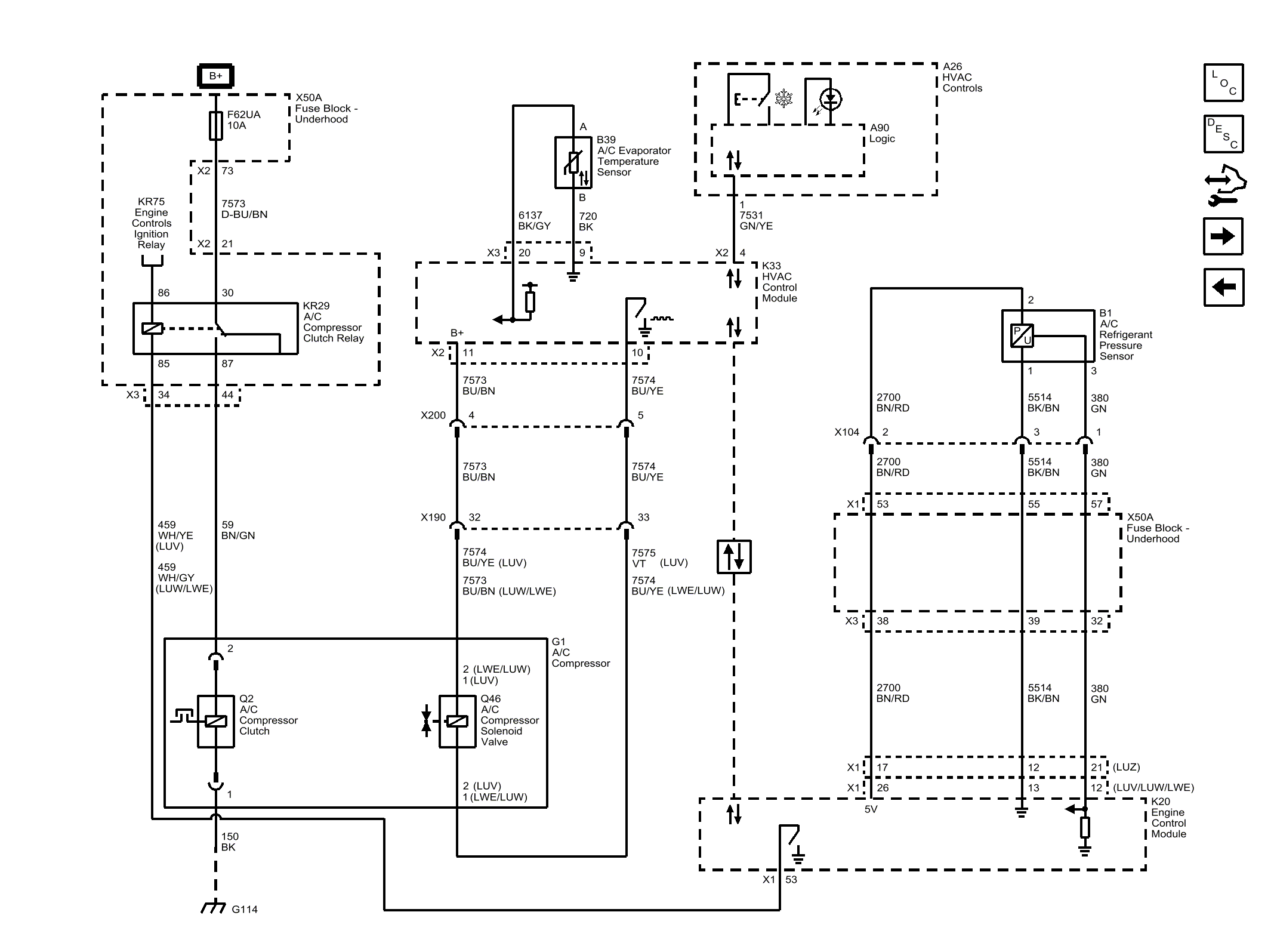

Fig 1: Evaporator Temperature Sensor and Compressor Controls (C67)

GM3814478

Courtesy of GENERAL MOTORS COMPANY
