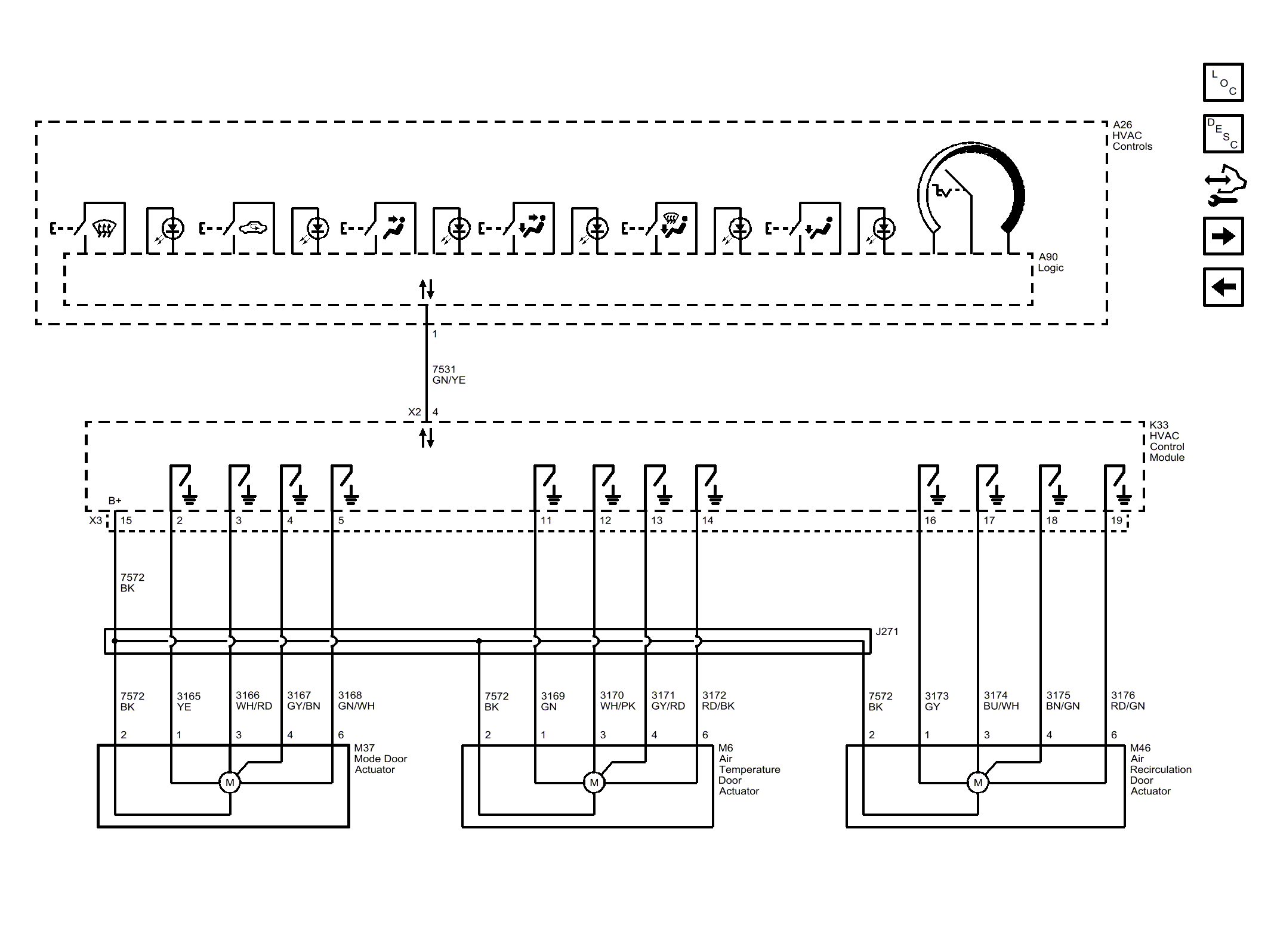

Home >> Chevrolet >> 2015 >> Cruze LT, Automatic Trans >> Repair and Diagnosis >> Heating, Ventilation & A/C (HVAC) >> HVAC Control Systems >> HVAC System - Manual >> Schematic Wiring Diagrams >> HVAC Wiring Schematics >> Air Delivery and Temperature Controls
