Inside Air Temperature Sensor Replacement

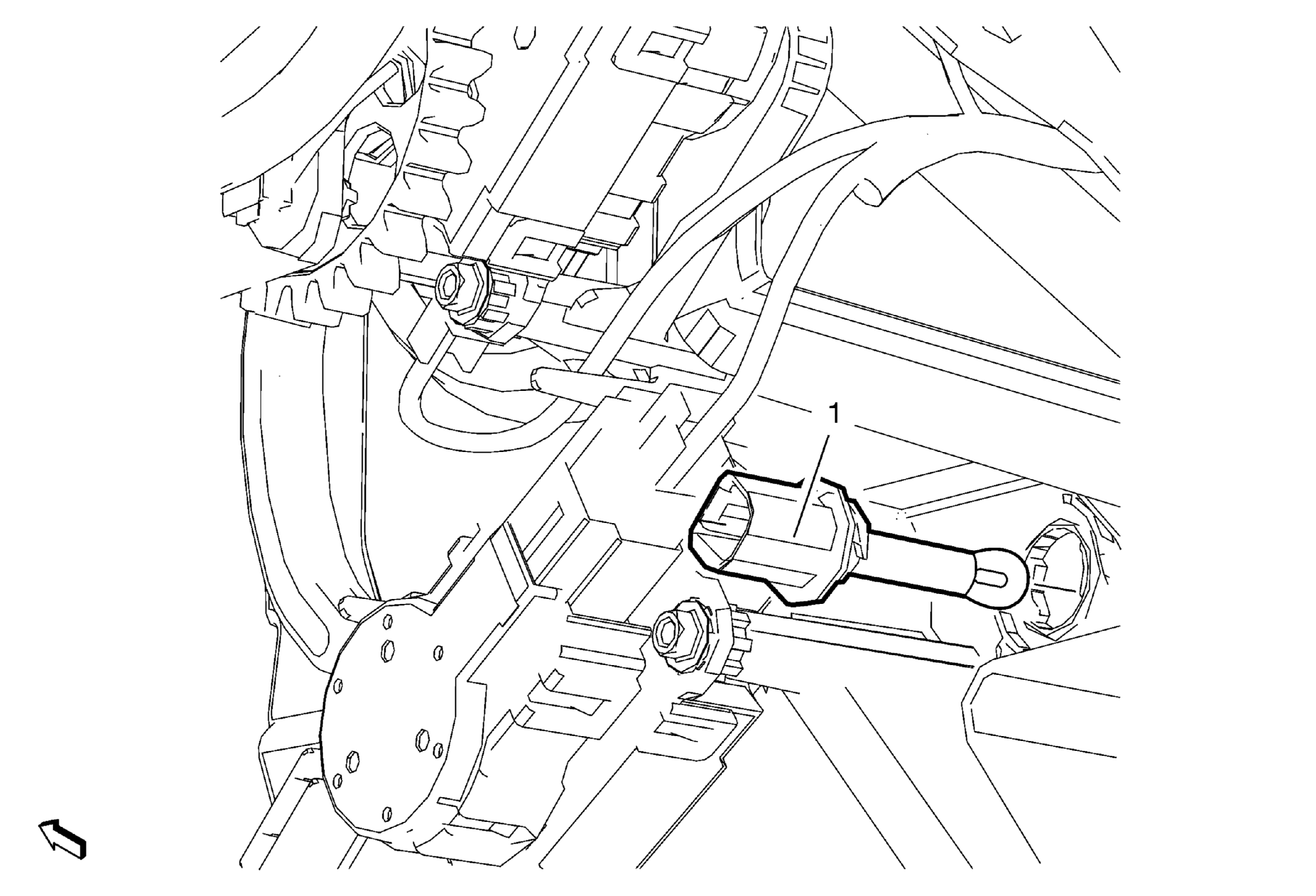

Fig 1: Inside Air Temperature Sensor And Wiring Harness Connector

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the floor air outlet duct - left side. Refer to Floor Air Outlet Duct Replacement - Left Side .
1	Inside Air Temperature Sensor Procedure Disconnect the electrical connector. Rotate the inside air temperature sensor to remove.

Callout

Component Name

Preliminary Procedures
Remove the floor air outlet duct - left side. Refer to Floor Air Outlet Duct Replacement - Left Side .

Inside Air Temperature Sensor

Procedure
