Ambient Air Quality Sensor Replacement

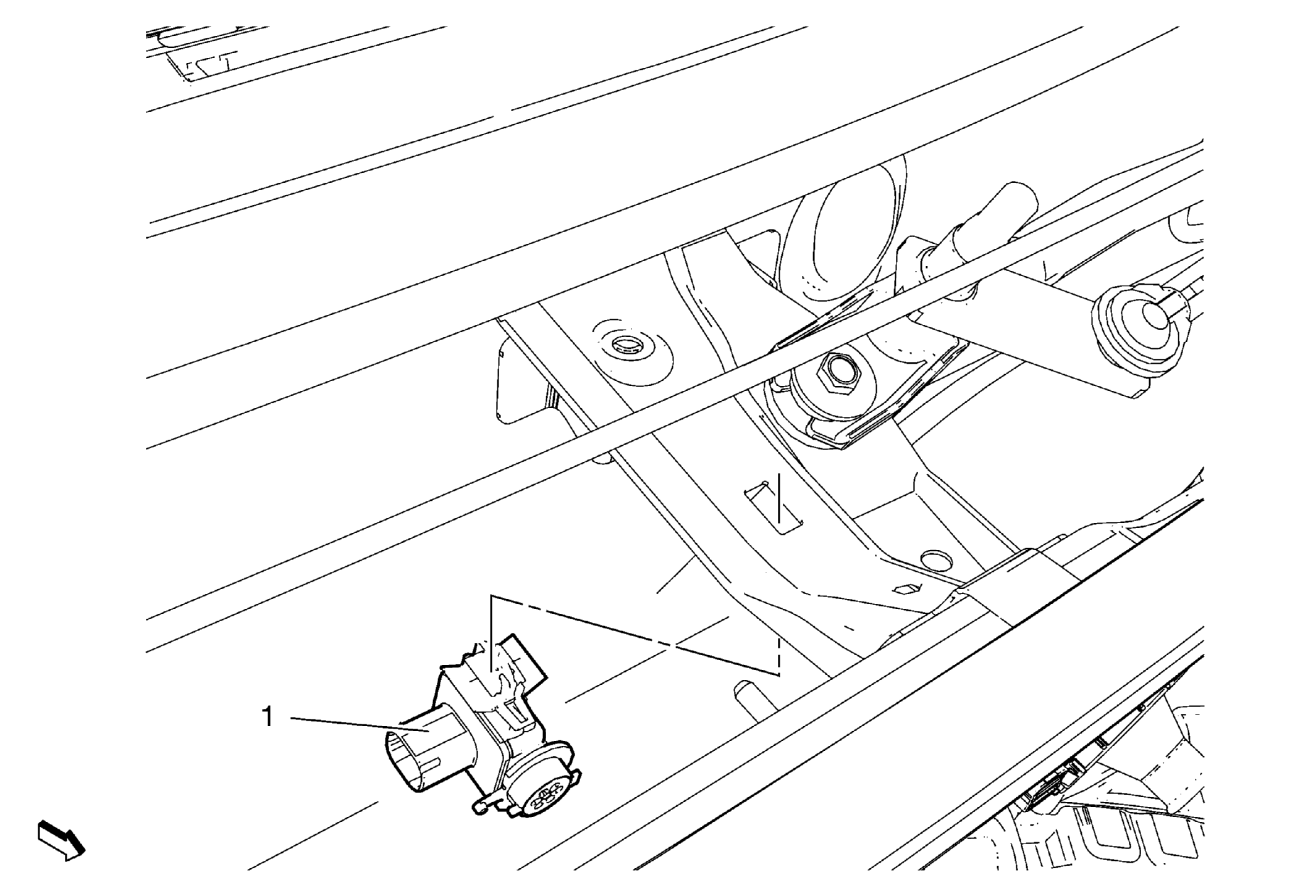

Fig 1: Ambient Air Quality Sensor
GM2027768Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove air inlet grille panel. Refer to Air Inlet Grille Panel Replacement .
1 Ambient Air Quality Sensor
Procedure
Disconnect wiring connector
