Air Conditioning Refrigerant Temperature Sensor Replacement - Right Side

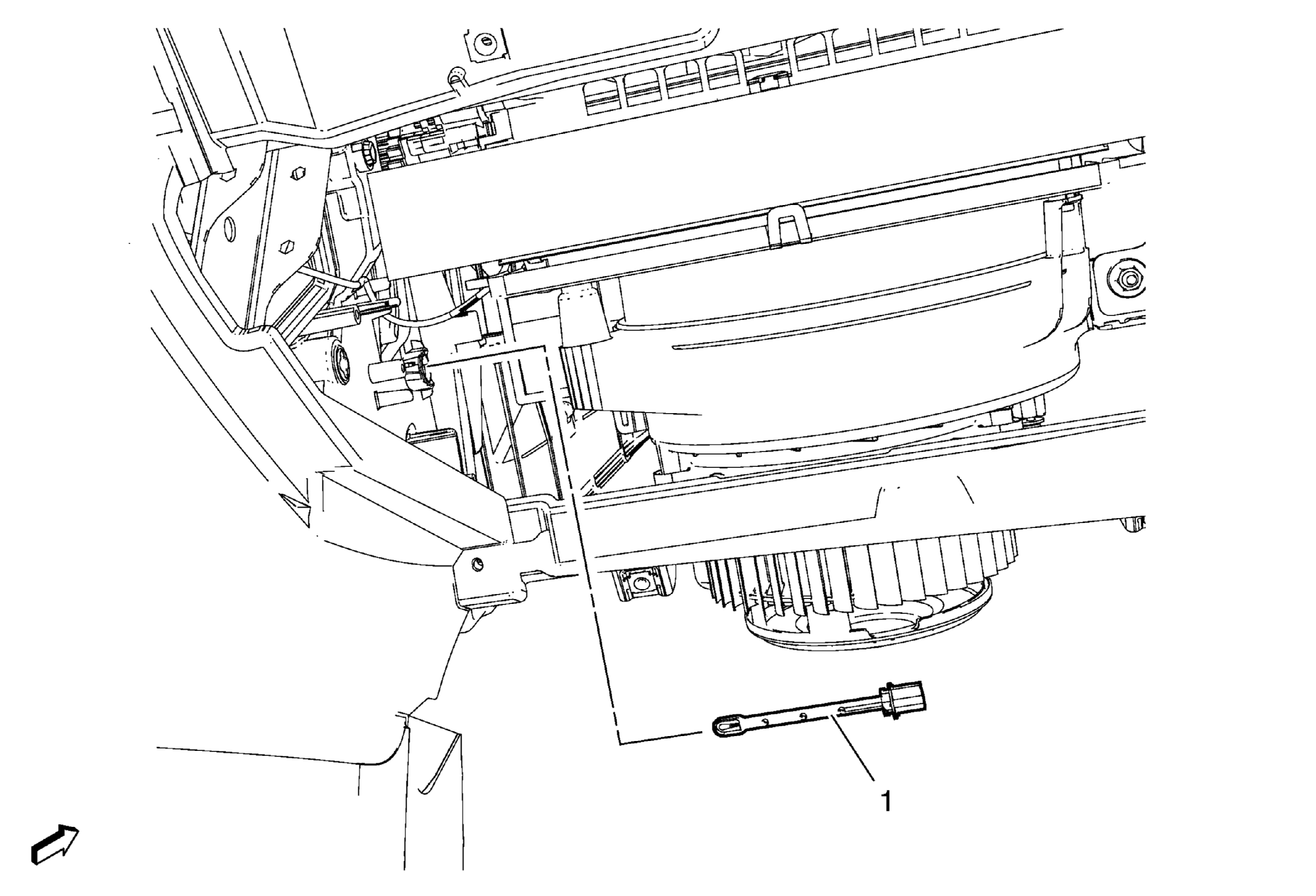

Fig 1: Air Conditioning Refrigerant Temperature Sensor - Right Side (Left Hand Drive)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures  Remove the heater and blower and air conditioning control module. Refer to Heater and Blower and Air Conditioning Control Module Replacement .
1	Air Conditioning Refrigerant Temperature Sensor - Right Side. Procedure  Disconnect the electrical connector.
