Removal Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection .
  2. Disconnect the secondary air injection pump inlet hose (1) from the secondary air injection pump (3) and the air cleaner assembly (2). Refer to Plastic Collar Quick Connect Fitting Service .

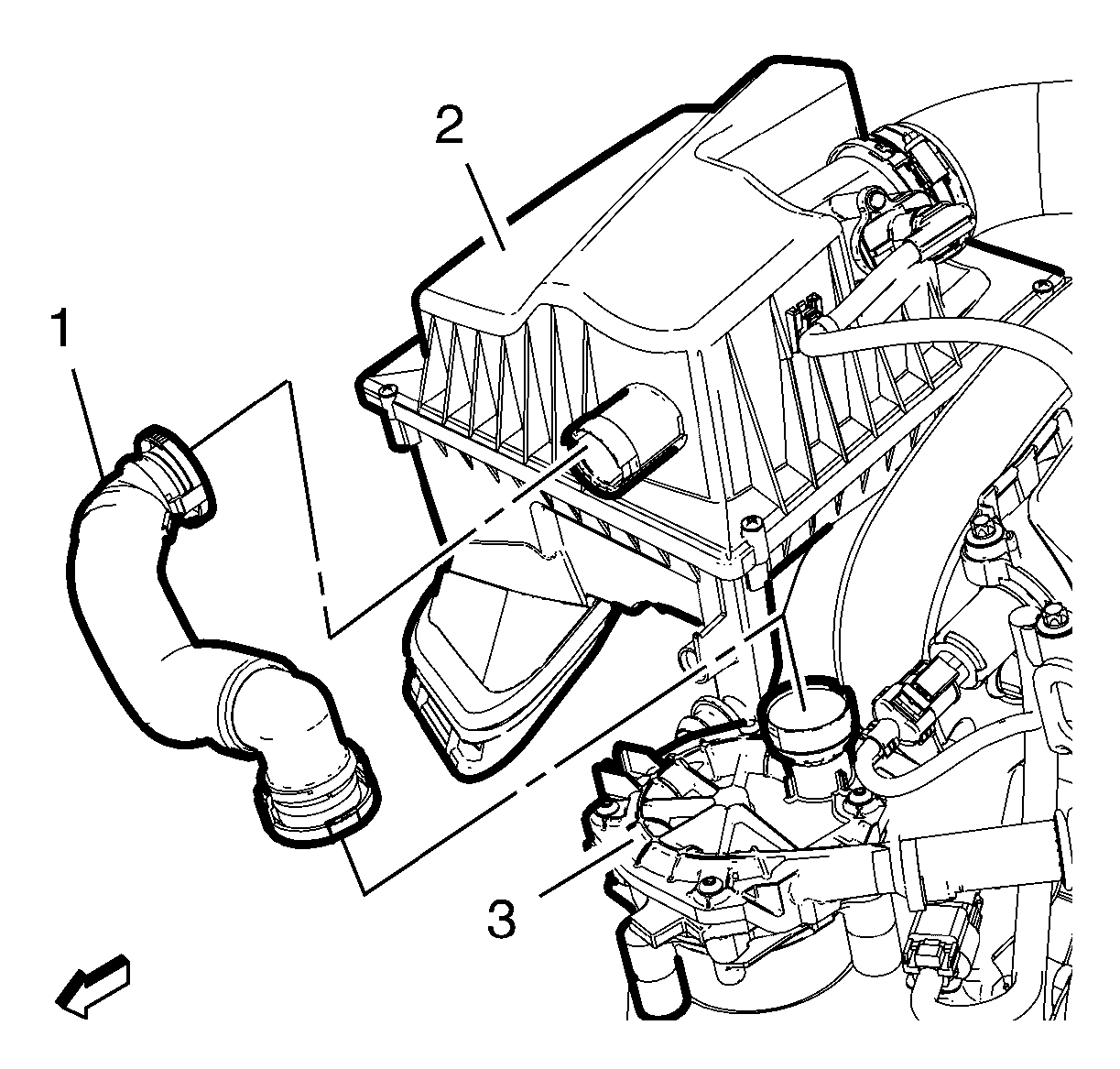

    Fig 1: Secondary Air Injection Pump Inlet Hose
    GM2834314Courtesy of GENERAL MOTORS COMPANY
  3. Disconnect the electrical connector from the secondary air injection pump (1).

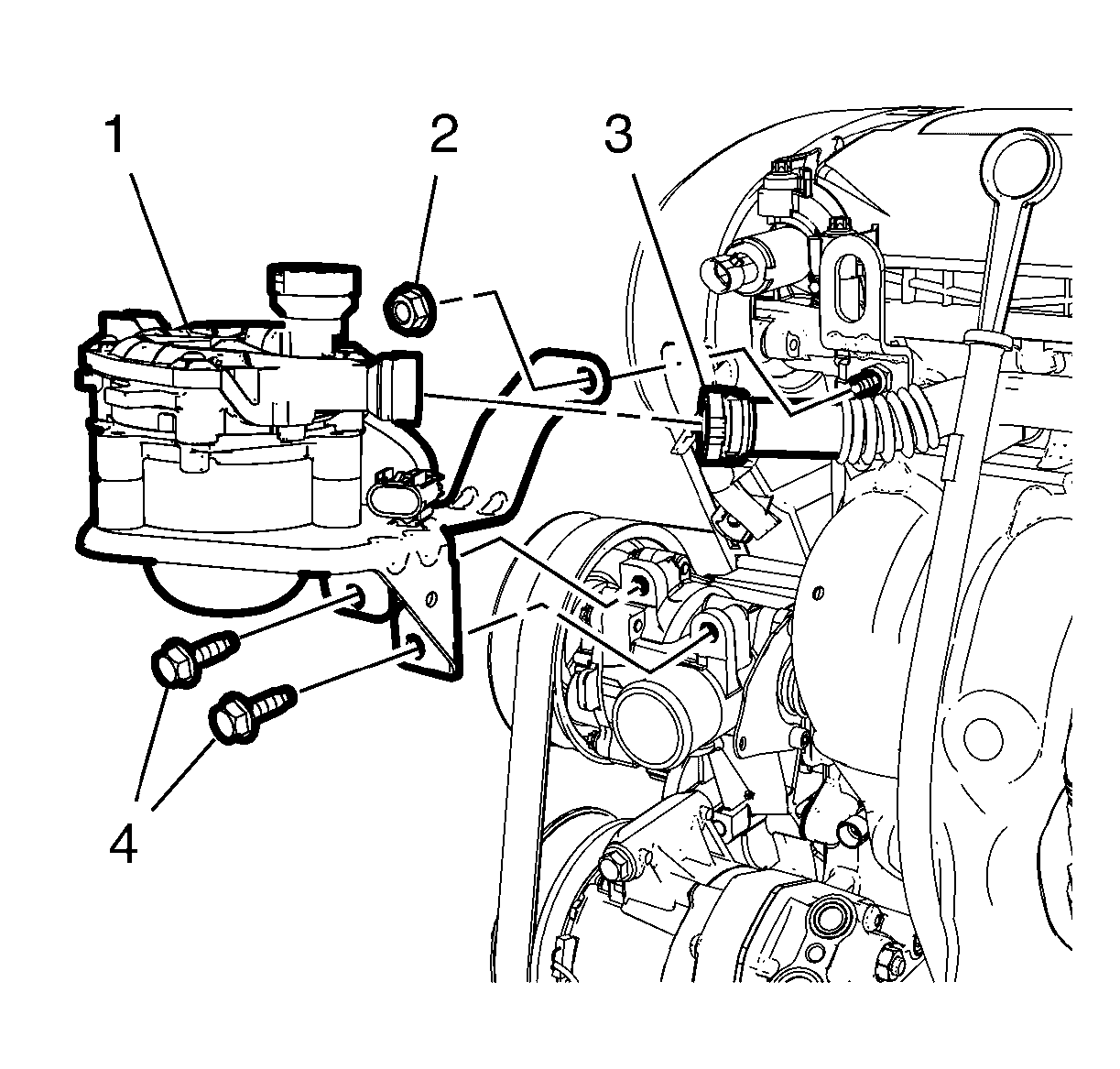

    Fig 2: Secondary Air Injection Pump Pipe
    GM2781588Courtesy of GENERAL MOTORS COMPANY
  4. Disconnect the secondary air injection pump pipe (3). Refer to Plastic Collar Quick Connect Fitting Service .
  5. Remove the secondary air injection pump nut (2) and the 2 secondary air injection pump bolts (4).
  6. Remove the secondary air injection pump (1).
