Secondary Air Injection Pump Pipe Replacement

WARNING: This page is about a different variant/trim than selected.

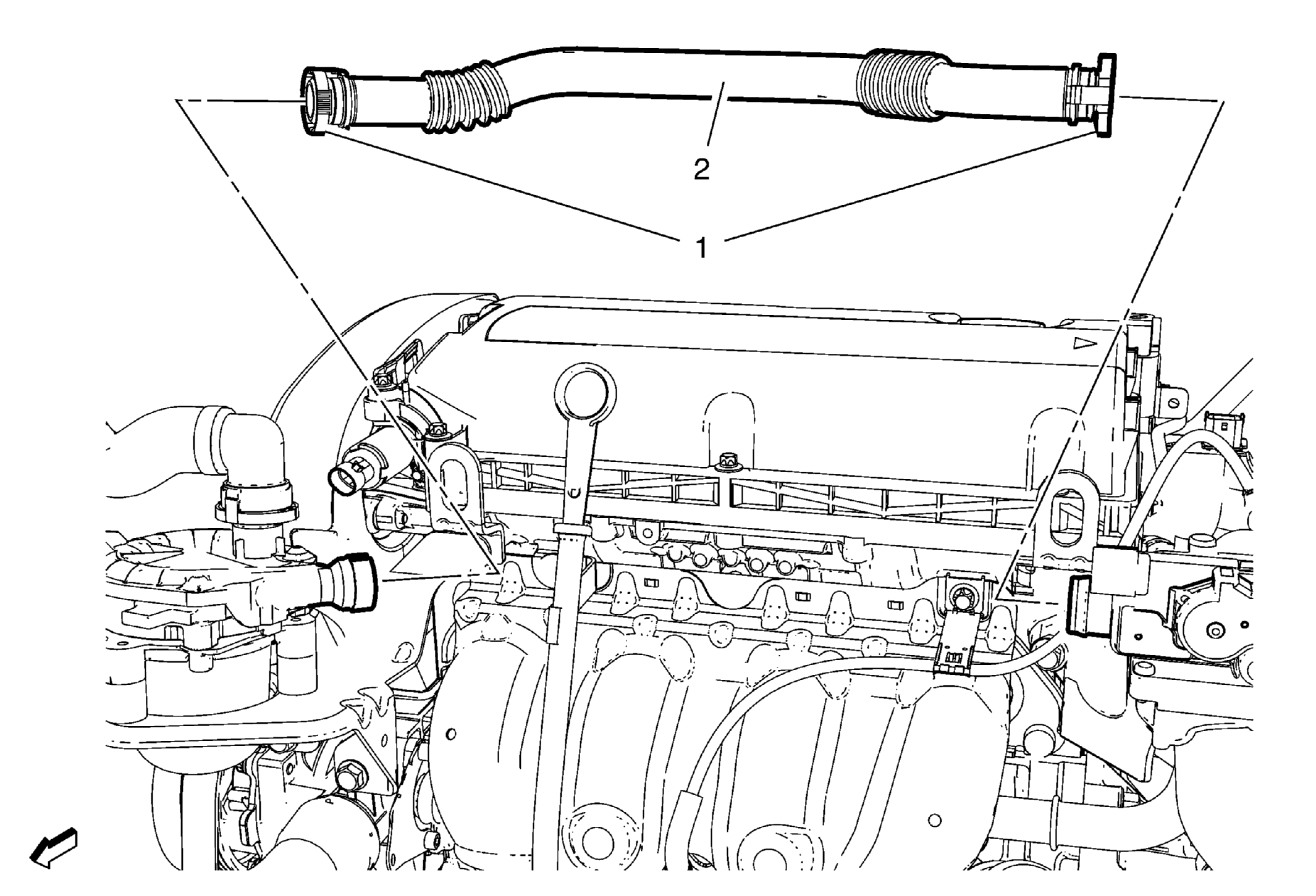

Fig 1: Secondary Air Injection Pump Pipe
GM2834333Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Pipe Retainer (Qty: 2)
Refer to Plastic Collar Quick Connect Fitting Service .
2 Secondary Air Injection Pump Pipe.
Procedure
Disconnect the pipe from the secondary air injection pump and the secondary air injection check valve.
