Removal Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection .
  2. Disconnect the secondary air injection pump pipe (1) from the secondary air injection check valve (2). Refer to Plastic Collar Quick Connect Fitting Service .

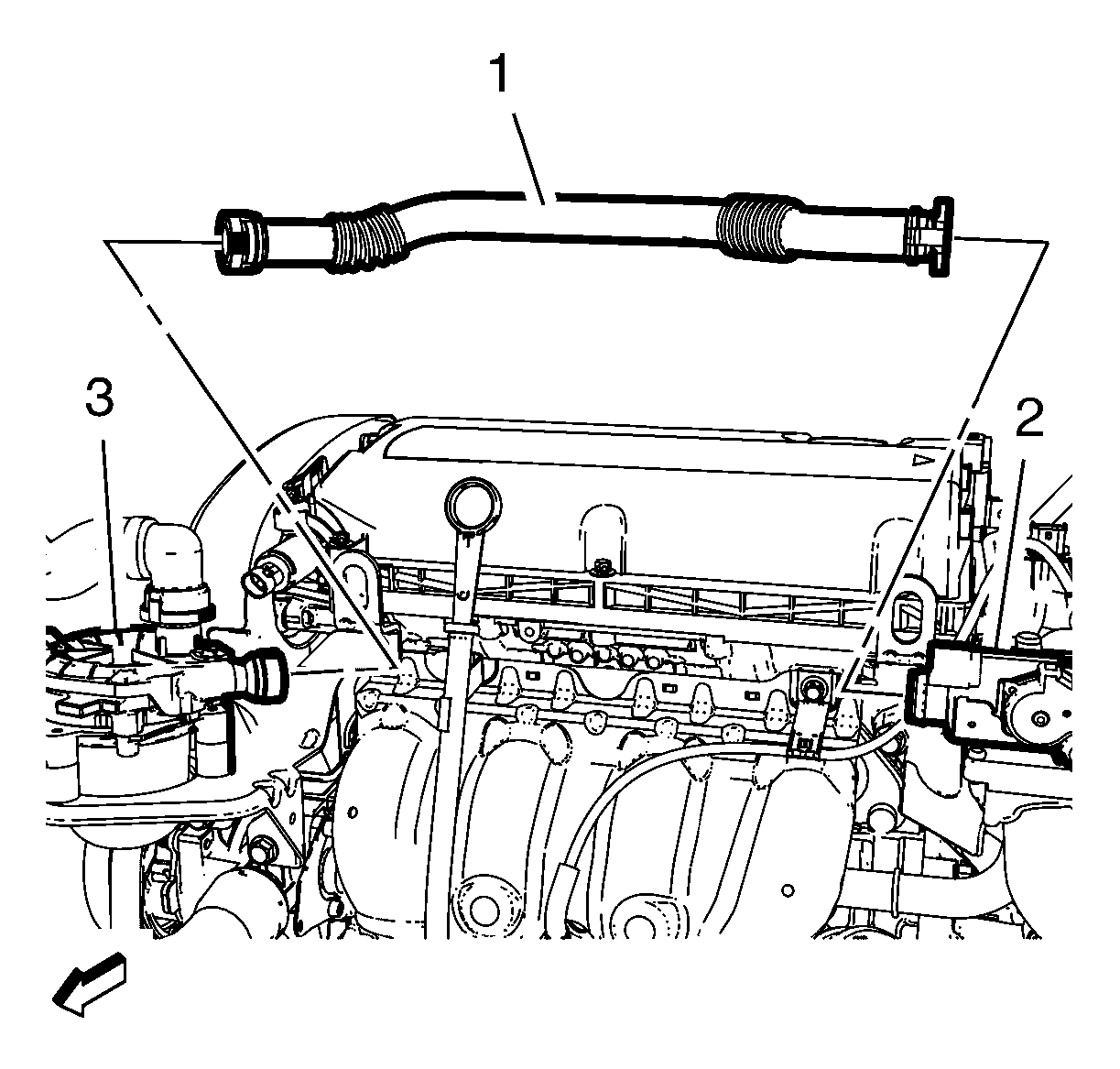

    Fig 1: Secondary Air Injection Pump Pipe
    GM2834332Courtesy of GENERAL MOTORS COMPANY
  3. Disconnect the electrical connector from the secondary air injection check valve (2).

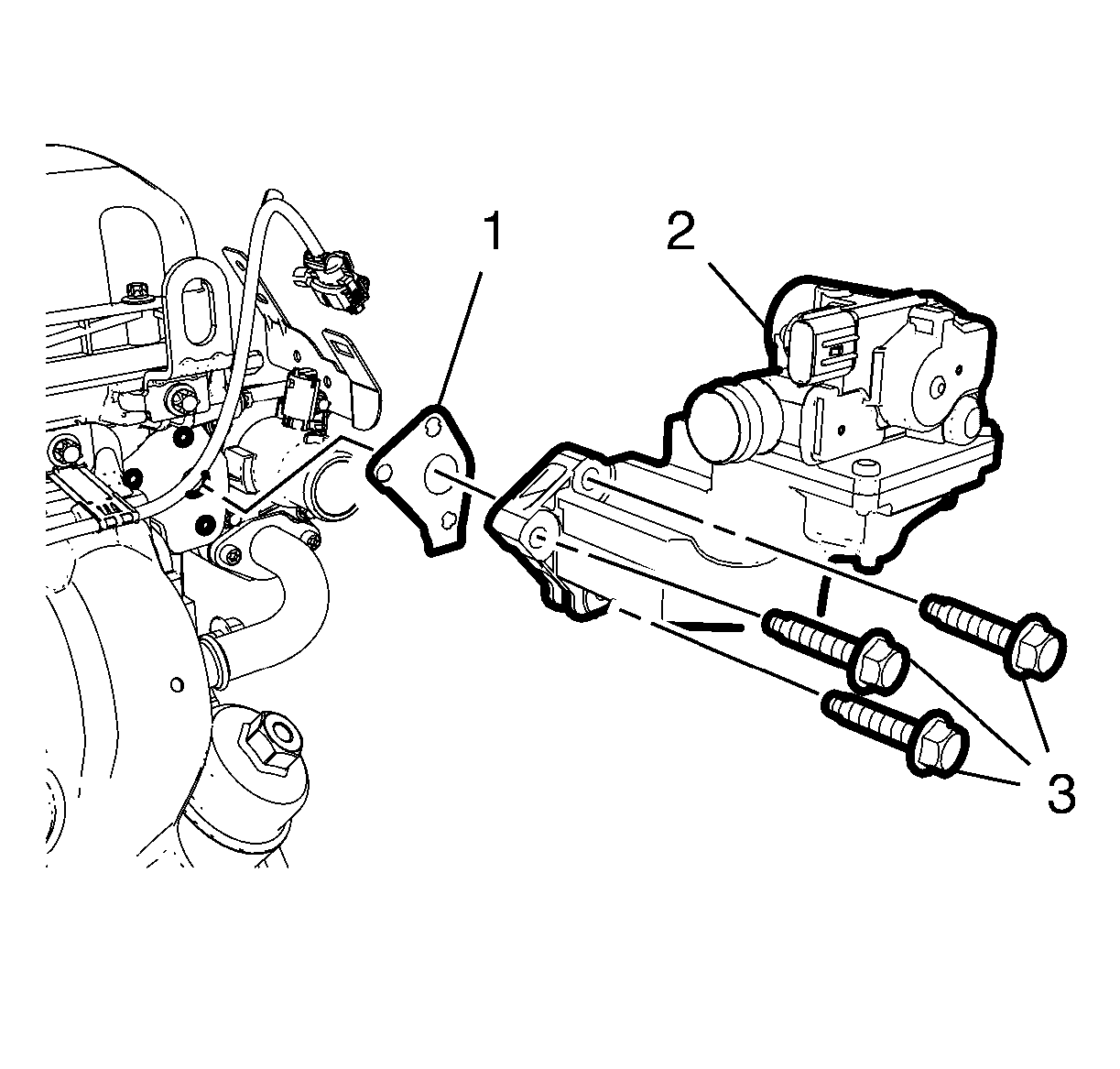

    Fig 2: Secondary Air Injection Check Valve Bolts
    GM2781590Courtesy of GENERAL MOTORS COMPANY
  4. Remove the 3 secondary air injection check valve bolts (3).
  5. Remove and DISCARD the secondary air injection check valve gasket (1).
  6. Remove the secondary air injection check valve (2).
