Manifold Absolute Pressure Sensor Replacement

WARNING: This page is about a different variant/trim than selected.

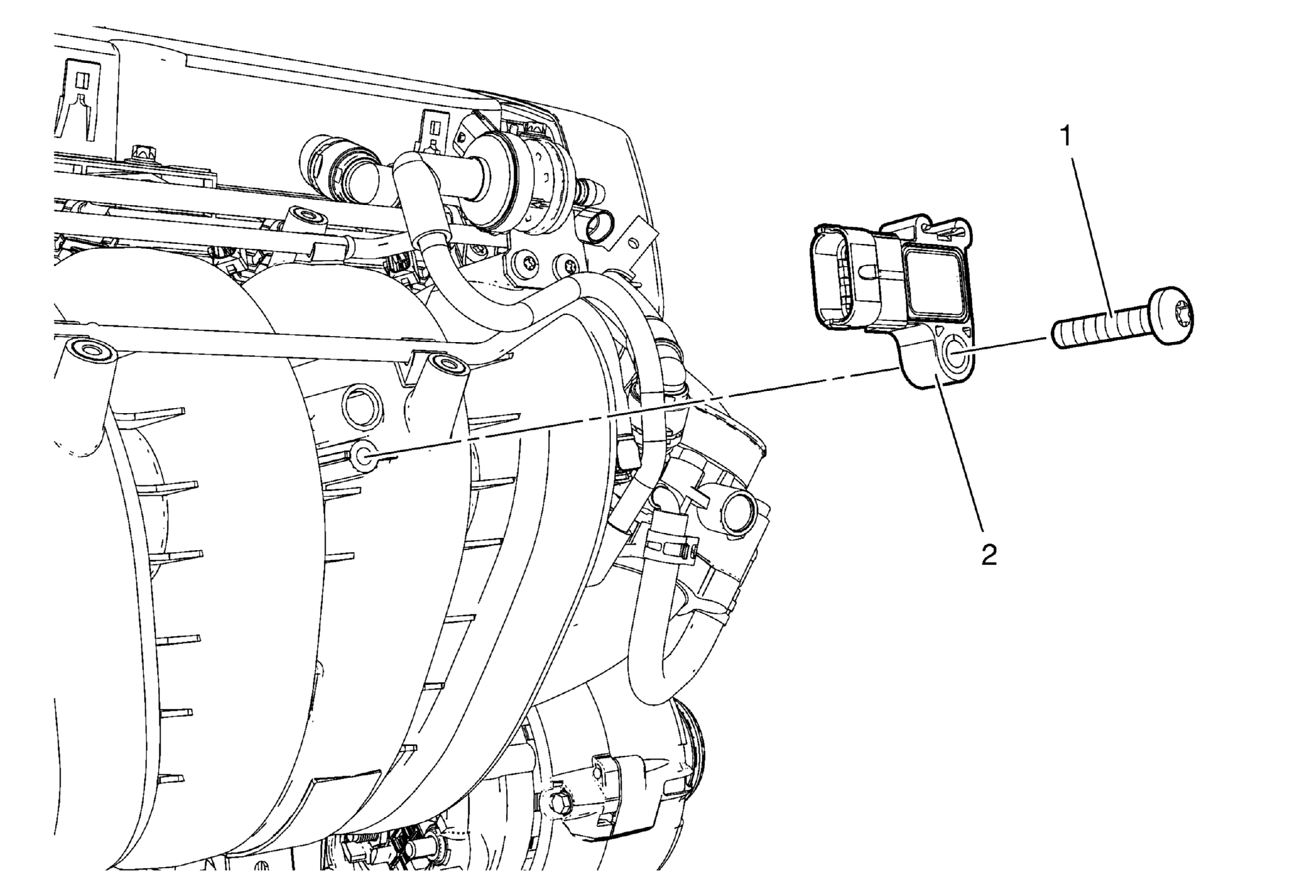

Fig 1: Manifold Absolute Pressure Sensor

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Manifold Absolute Pressure Sensor Bolt CAUTION: Refer to Fastener Caution . Tighten 6 N.m (53 lb in)
2	Manifold Absolute Pressure Sensor Procedure Disconnect the electrical connector.
