Installation Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Install the EN-6009  remover/installer (1).

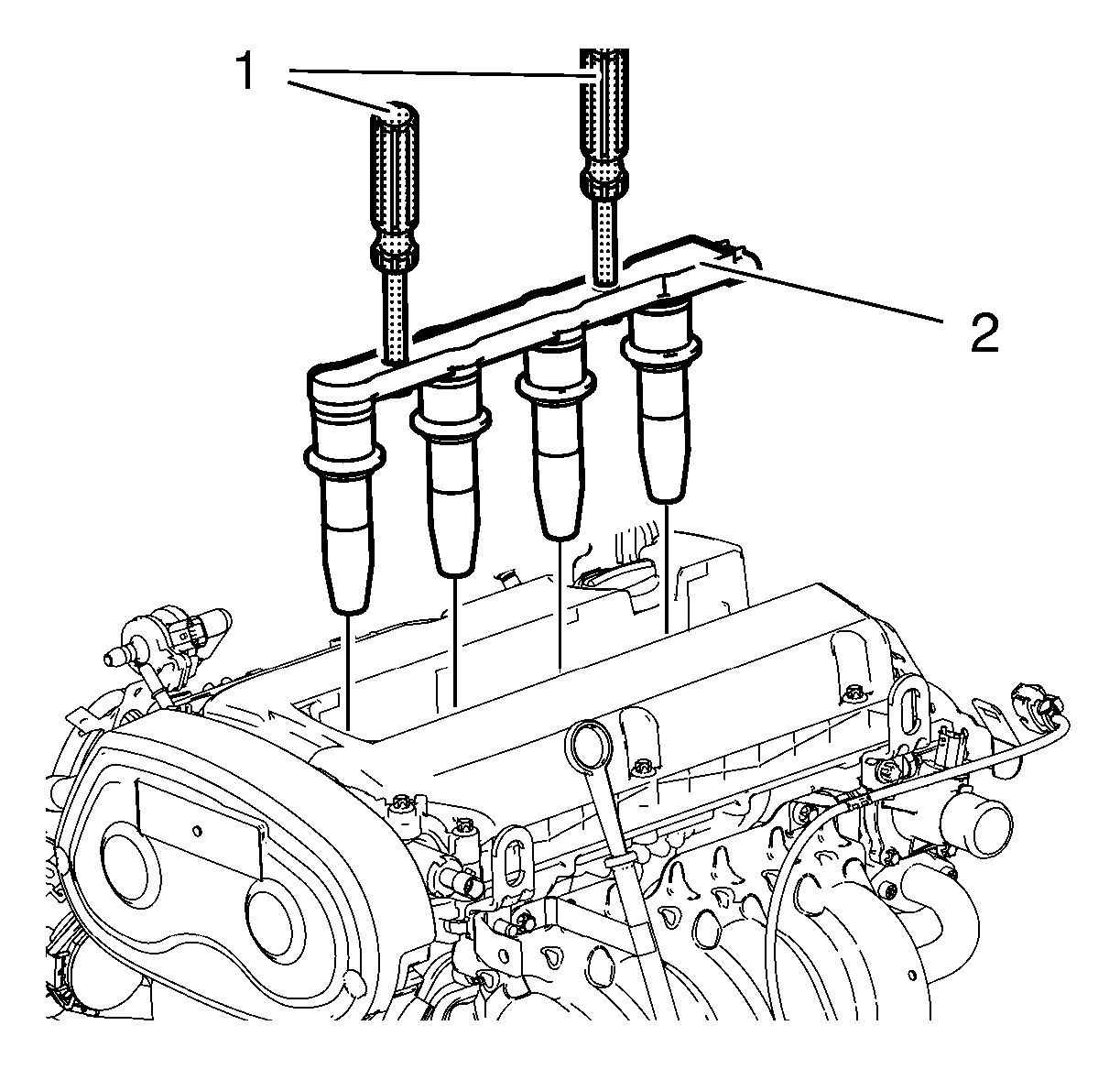

    Fig 1: Ignition Coil Module And Special Tool
    GM2026537Courtesy of GENERAL MOTORS COMPANY
  2. Remove the ignition coil (2).
  3. Remove the EN-6009  remover/installer (1).
  4. Install the 2 ignition coil bolts an tighten to 9 N.m (80 lb in).
    CAUTION: Refer to Fastener Caution .
  5. Install the ignition coil cover in the direction of the arrow.
    NOTE: Note the arrow on the cover.
  6. Connect the ignition coil plug (2).

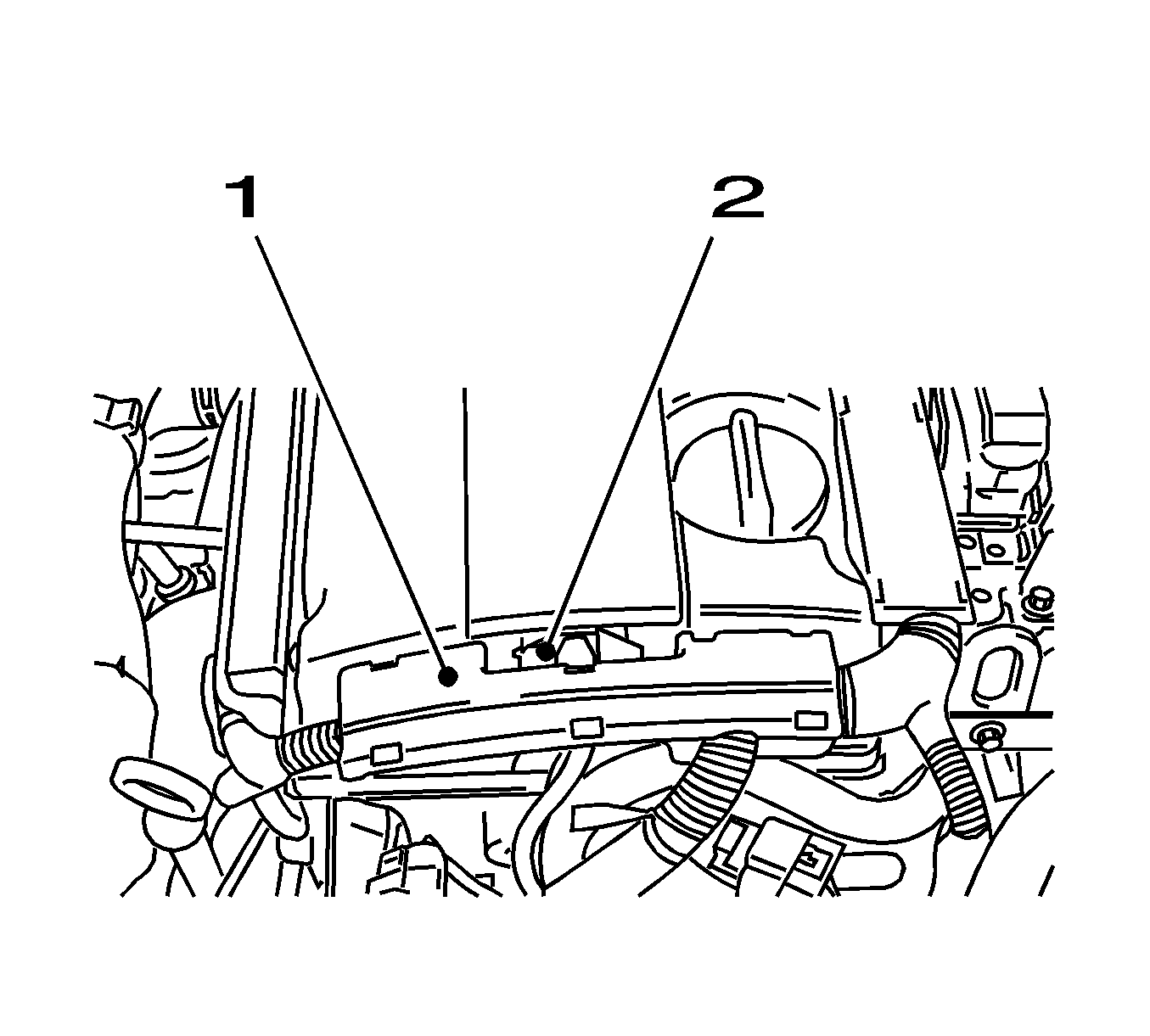

    Fig 2: View Of Engine Wiring Trough And DIS-ignition Module Wiring Harness Plug
    GM1937023Courtesy of GENERAL MOTORS COMPANY
  7. Install the engine wiring harness guide (1) at the cylinder head.
