Installation Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Install the fuel tank vent pipe (3) and close the fuel pipe clip (2).

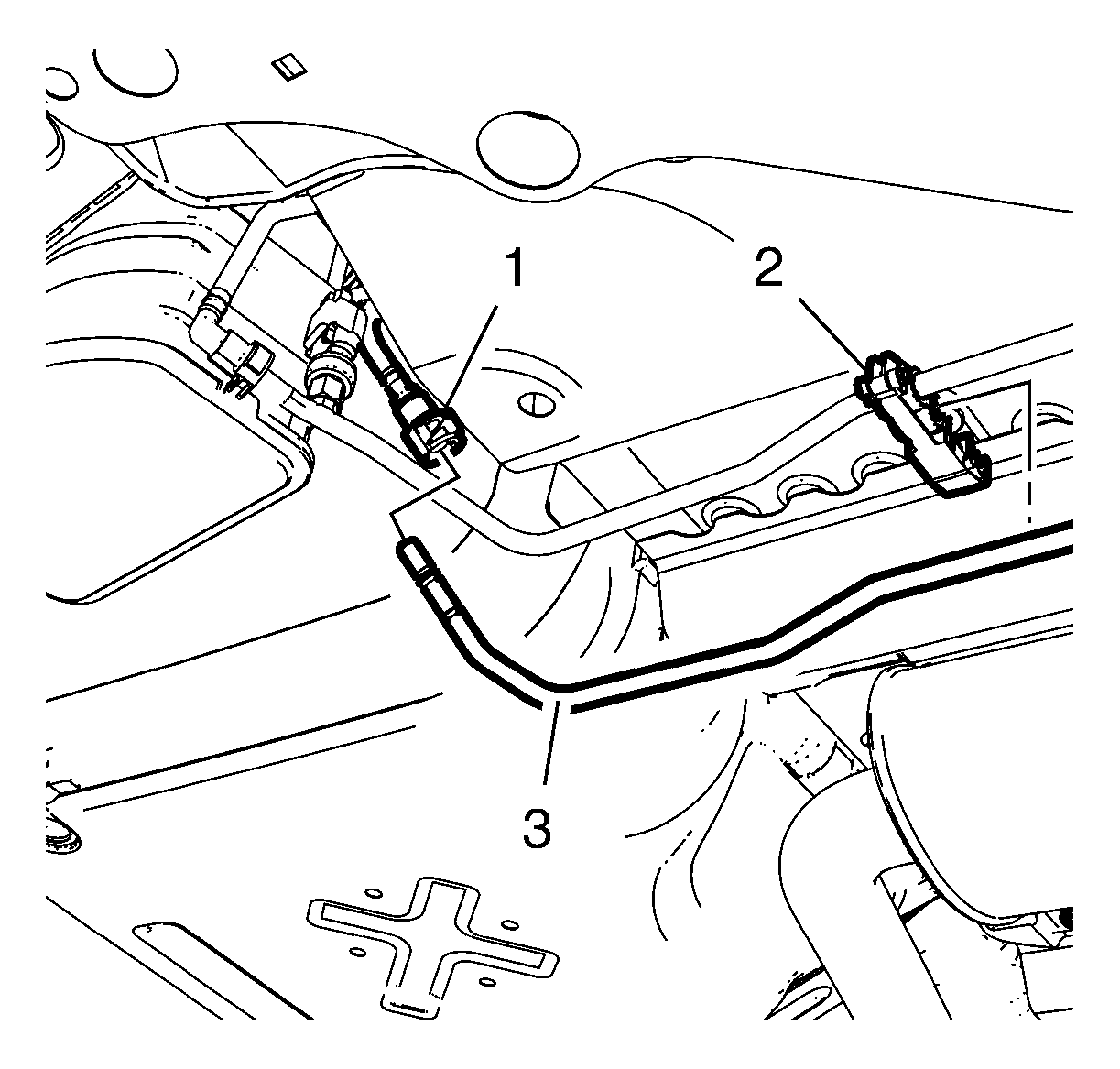

    Fig 1: Evaporative Emission Canister Fuel Vent Pipe Connector
    GM2372983Courtesy of GENERAL MOTORS COMPANY
  2. Remove the caps from emission canister fuel vent pipe and fuel tank vent pipe.
  3. Connect the emission canister fuel vent pipe to fuel tank vent pipe. Refer to Plastic Collar Quick Connect Fitting Service .
  4. Install the lower bulk head clip.
    Fig 2: Fuel Feed Pipe And Clips
    GM2191622Courtesy of GENERAL MOTORS COMPANY
  5. Close the 4 fuel pipe clips (2).
  6. Rotate the right frame reinforcement to its original position.
    Fig 3: Front Exhaust Hanger Bracket And Bolt
    GM2538049Courtesy of GENERAL MOTORS COMPANY
  7. Install the exhaust front hanger bracket bolt (3).
  8. Install the frame reinforcement bolt (2).
  9. Tighten the NEW exhaust front hanger bracket bolt (3) to 22 N.m (16 lb ft).
    CAUTION: Refer to Fastener Caution .
    CAUTION: Refer to Torque-to-Yield Fastener Caution .
  10. Tighten the NEW frame reinforcement bolt (2) a first pass to 60 N.m (44 lb ft).
    CAUTION: Refer to Torque-to-Yield Fastener Caution .
  11. Tighten the NEW frame reinforcement bolt (2) a final pass to an additional 30 - 45 degrees, using the EN-45059  meter.
  12. Tighten the drivetrain and front suspension frame bolt (1) to 160 N.m (118 lb ft).
  13. Lower the vehicle.
  14. Install the fuel tank vent pipe (1) to the upper bulkhead clip.

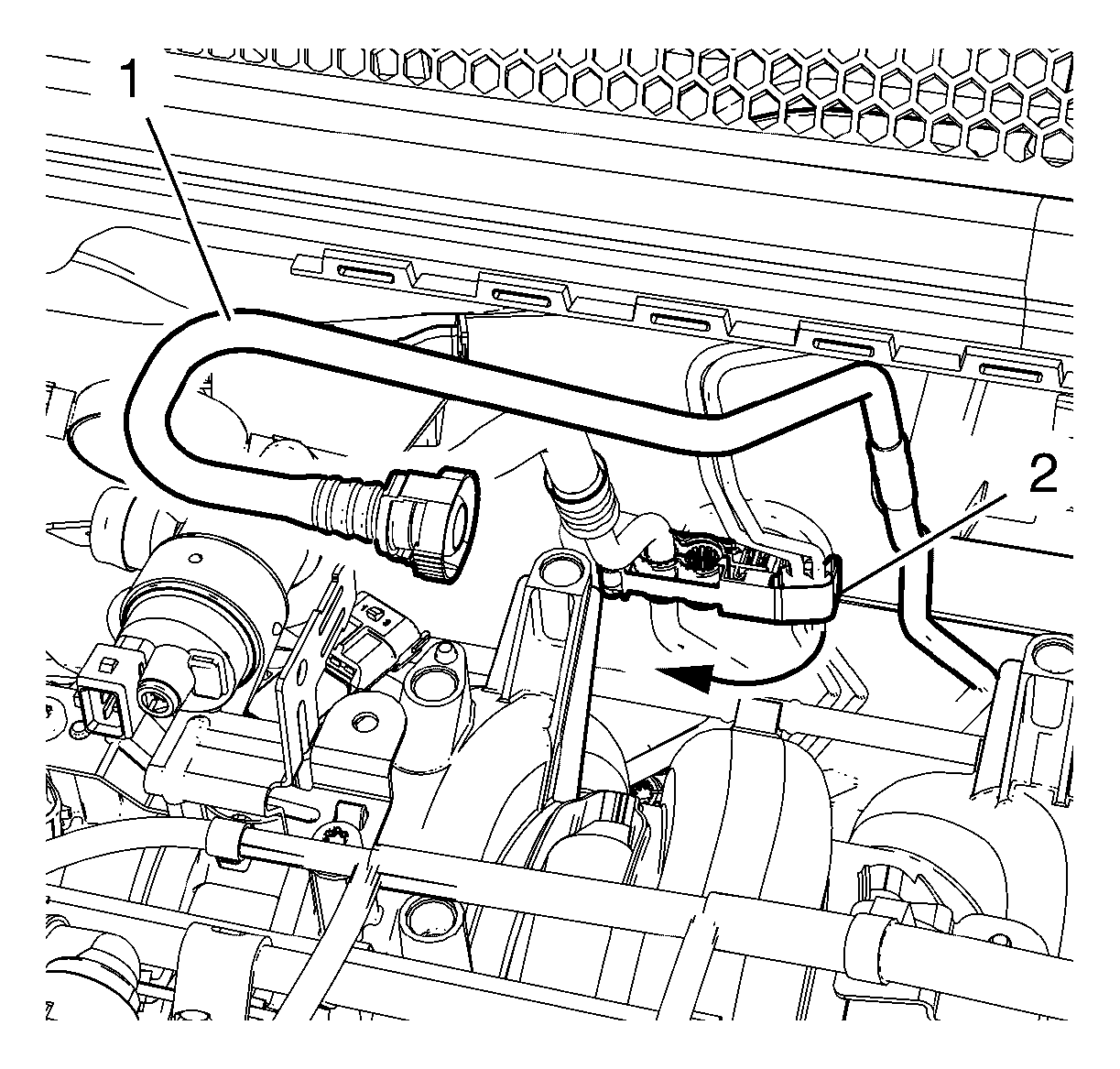

    Fig 4: Fuel Tank Vent Pipe
    GM2191617Courtesy of GENERAL MOTORS COMPANY
  15. Close the upper bulk head clip (2).
  16. Install the fuel tank vent pipe (2) to the evaporative emission canister purge solenoid valve (1) and to the clip (3).

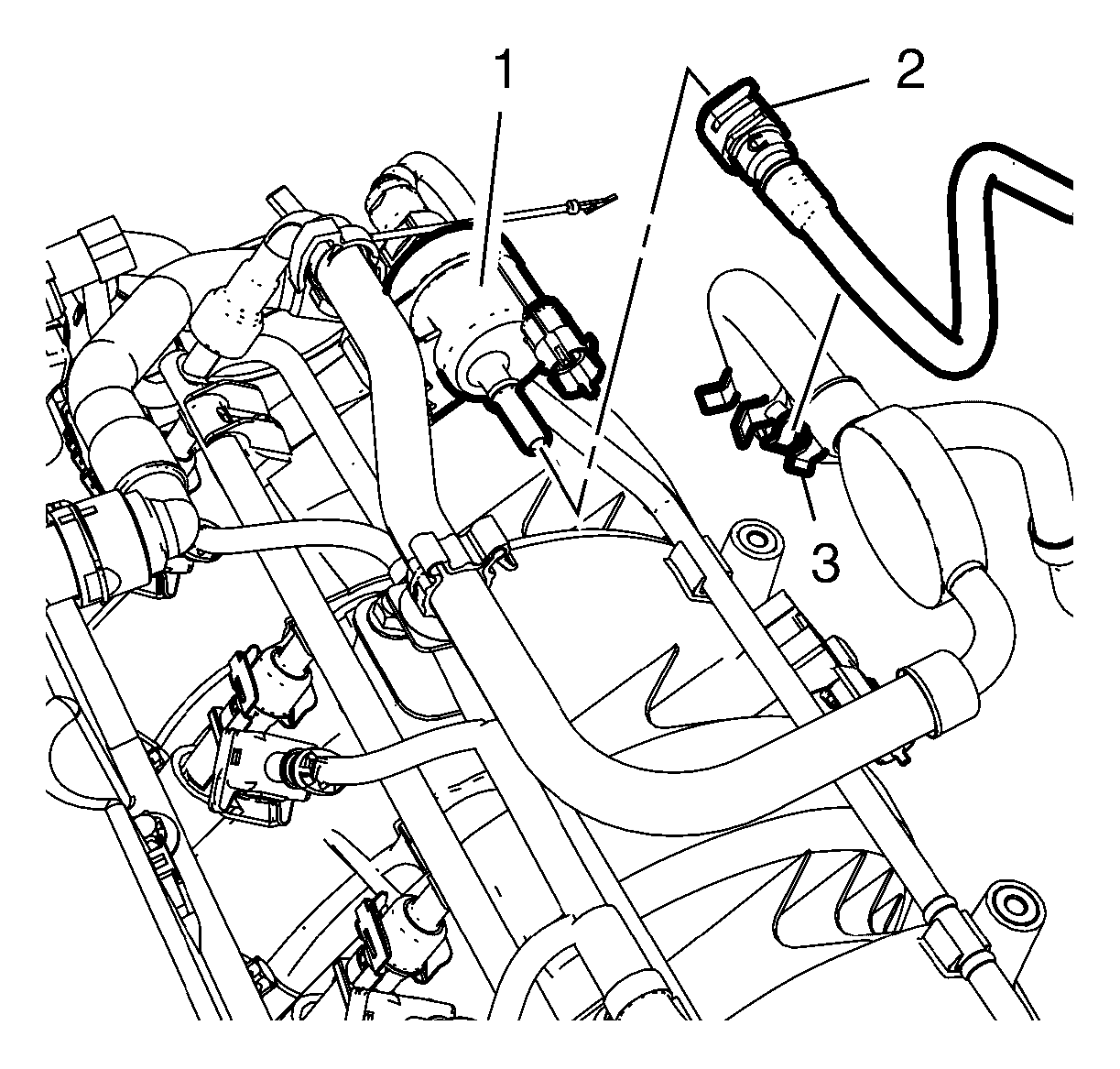

    Fig 5: Fuel Tank Vent Pipe And Evaporative Emission Canister Purge Solenoid Valve
    GM2372982Courtesy of GENERAL MOTORS COMPANY
  17. Connect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection .
