Disassemble Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Remove the fuel tank fuel pump module. Refer to Fuel Tank Fuel Pump Module Replacement .
  2. Disconnect the fuel tank pressure sensor electrical connector (1) from the fuel tank pressure sensor (2).

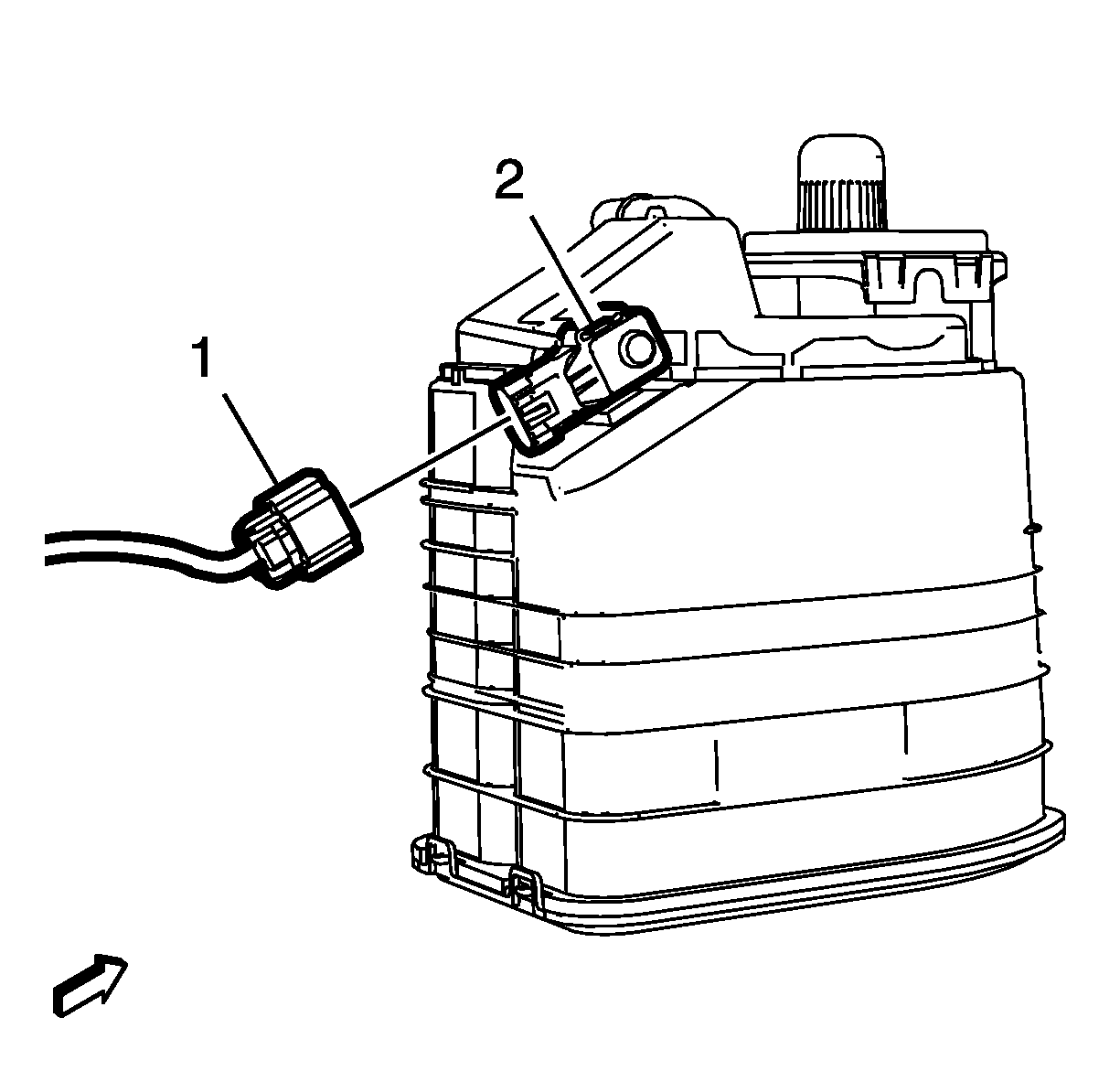

    Fig 1: Fuel Tank Pressure Sensor Electrical Connector
    GM3352067Courtesy of GENERAL MOTORS COMPANY
  3. Disconnect the fuel tank vent pipe (2).
    Fig 2: Evaporative Emission Canister
    GM2373051Courtesy of GENERAL MOTORS COMPANY
    WARNING: Always wear safety goggles when working with fuel in order to protect the eyes from fuel splash.
  4. Disconnect the evaporative emission canister wiring harness plug (3).
  5. Remove the evaporative emission canister (1) from the evaporative emission canister bracket by releasing tab and lifting it upwards.
  6. Remove the fuel tank baffles. Refer to Fuel Tank Baffle Replacement .
