Installation Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Remove the caps from the fuel feed tank pipe and from the fuel feed pipe.

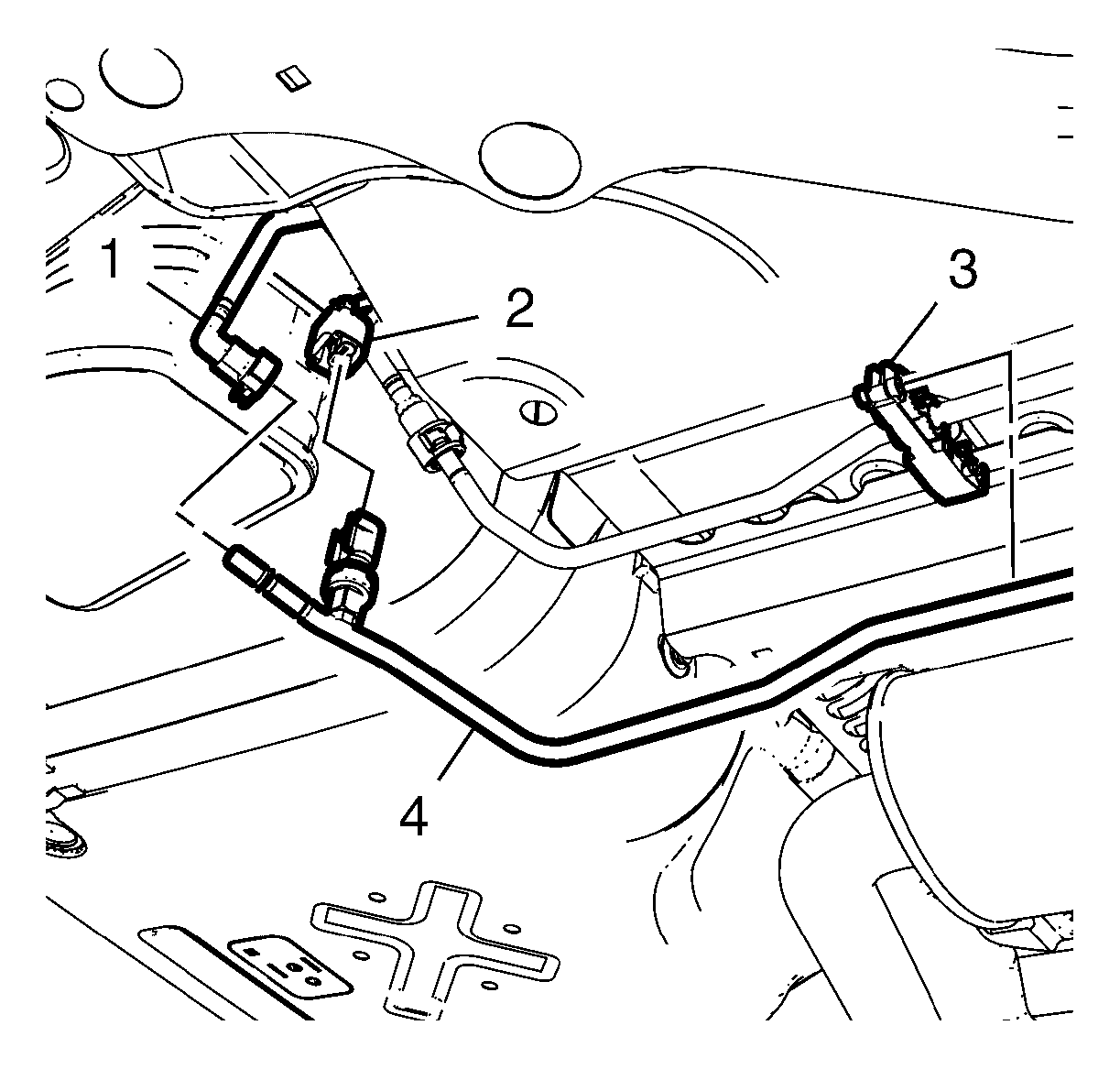

    Fig 1: Fuel Tank Feed Pipe Connector
    GM2372986Courtesy of GENERAL MOTORS COMPANY
  2. Install the fuel feed pipe (4) and close the fuel pipe clip (3).
  3. Connect the fuel tank feed pipe connector (1) to fuel feed pipe (4). Refer to Plastic Collar Quick Connect Fitting Service
  4. Connect the wiring harness plug (2).
  5. Install the lower bulk head clip.
    Fig 2: Fuel Feed Pipe And Clips
    GM2191622Courtesy of GENERAL MOTORS COMPANY
  6. Close the 4 fuel pipe clips (2).
  7. Rotate the right frame reinforcement to its original position.
    Fig 3: Front Exhaust Hanger Bracket And Bolt
    GM2538049Courtesy of GENERAL MOTORS COMPANY
  8. Install the exhaust front hanger bracket bolt (3).
  9. Install the frame reinforcement bolt (2).
  10. Tighten the NEW exhaust front hanger bracket bolt (3) to 22 N.m (16 lb ft).
    CAUTION: Refer to Fastener Caution
    CAUTION: Refer to Torque-to-Yield Fastener Caution
  11. Tighten the NEW frame reinforcement bolt (2) to 60 N.m (44 lb ft).
  12. Tighten the drivetrain and front suspension frame bolt (1) to 160 N.m (118 lb ft).
  13. Lower the vehicle.
  14. Install the fuel feed pipe (1) to the upper bulkhead clip.
    Fig 4: Fuel Feed Pipe And Fuel Pipe Clip
    GM2191616Courtesy of GENERAL MOTORS COMPANY
  15. Close the upper bulk head clip (2).
  16. Remove the caps from the fuel feed pipe (2) and from the multiport fuel injection fuel rail (1).
    Fig 5: Fuel Feed Pipe
    GM2372979Courtesy of GENERAL MOTORS COMPANY
  17. Install the fuel feed pipe (2) to the multiport fuel injection fuel rail (1).
  18. Clip in the fuel feed pipe (2) to the fuel feed pipe clip (3).
  19. Connect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection
