Engine Coolant Temperature Sensor Replacement - Radiator Side

WARNING: This page is about a different variant/trim than selected.

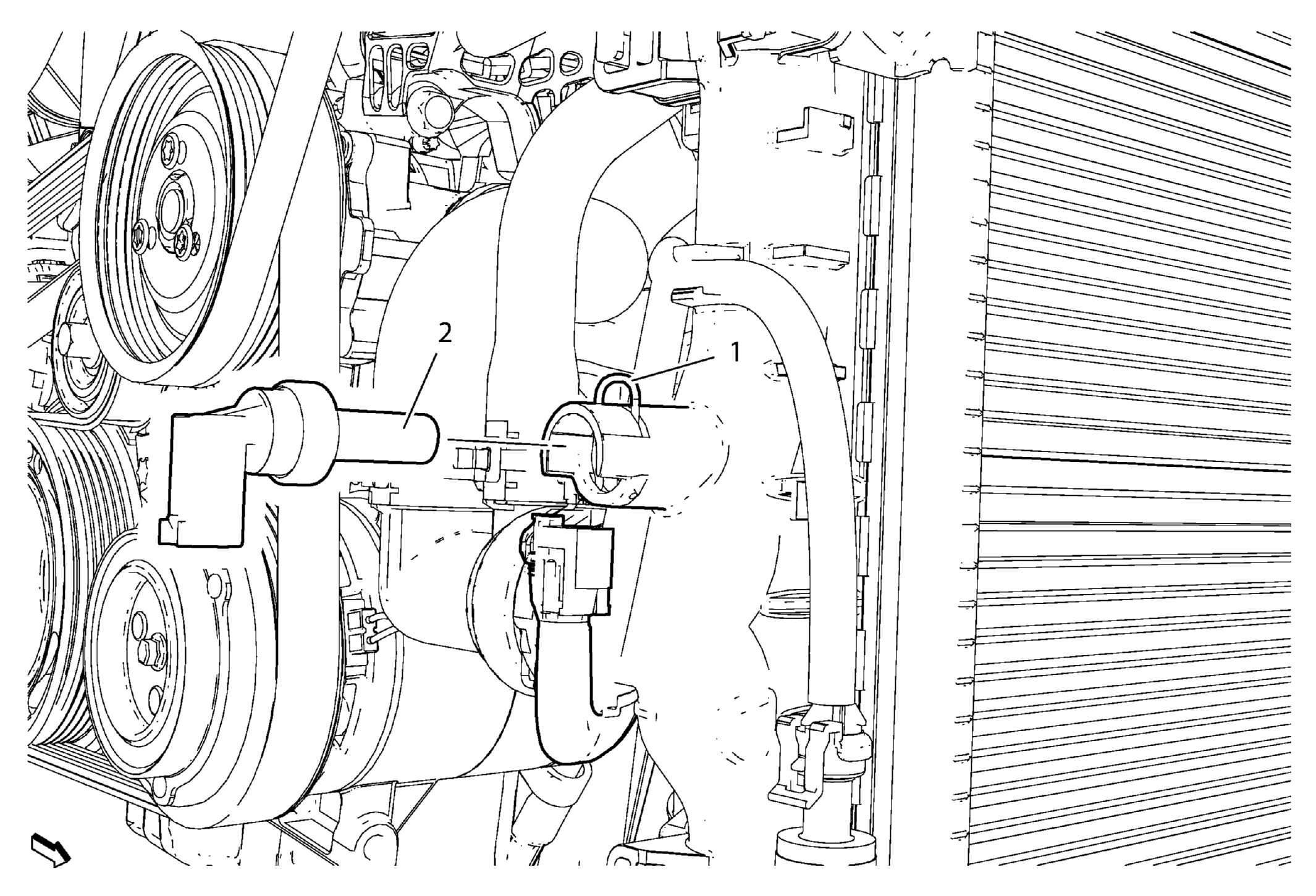

Fig 1: Engine Coolant Temperature Sensor (Radiator) Side

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Drain the cooling system. Refer to Cooling System Draining and Filling (GE-47716 Fill) and Cooling System Draining and Filling (Static Fill) . Disconnect the electrical connection.
1	Retaining Clamp
2	Engine Coolant Temperature Sensor

Callout

Component Name

Preliminary Procedure

Retaining Clamp

Engine Coolant Temperature Sensor
