Crankshaft Position Sensor Replacement
WARNING: This page is about a different variant/trim than selected.

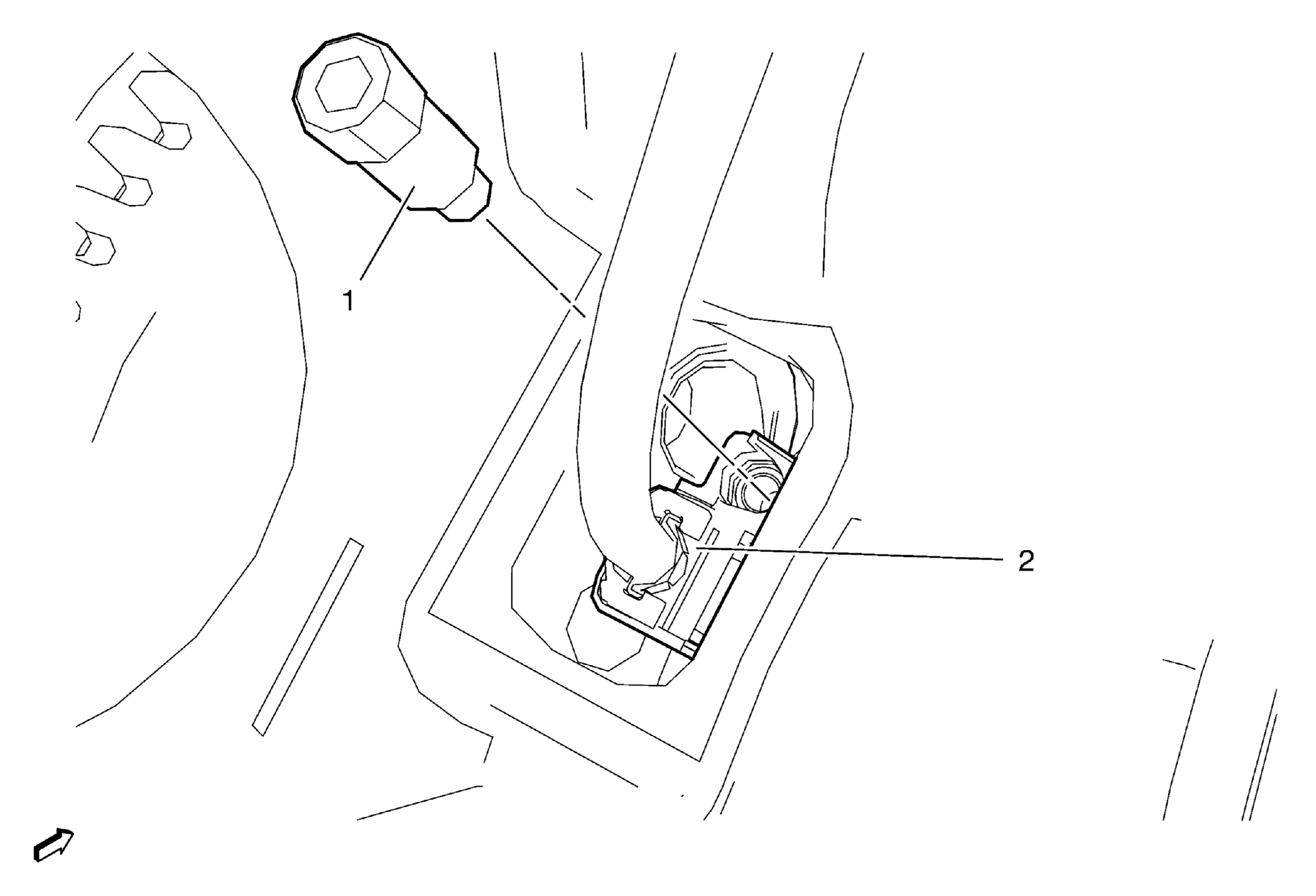

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the starter motor. Refer to Starter Replacement (1.8L LUW and LWE) . |
|
| 1 | Crankshaft Position Sensor Fastener
CAUTION:
Refer to Fastener Caution
. Procedure Remove the crankshaft position sensor bolt Tighten 4.5 N.m (40 lb in) |
| 2 | Crankshaft Position Sensor Procedure Disconnect all electrical connectors as needed. |
