Removal Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Remove the air cleaner upper housing. Refer to Air Cleaner Upper Housing Replacement (1.8L LUW)  and Air Cleaner Upper Housing Replacement (1.8L LWE) .
  2. Remove the air cleaner element. Refer to Air Cleaner Element Replacement .
  3. Unclip the water drain hose (3) from the air cleaner lower housing (1) if equipped.

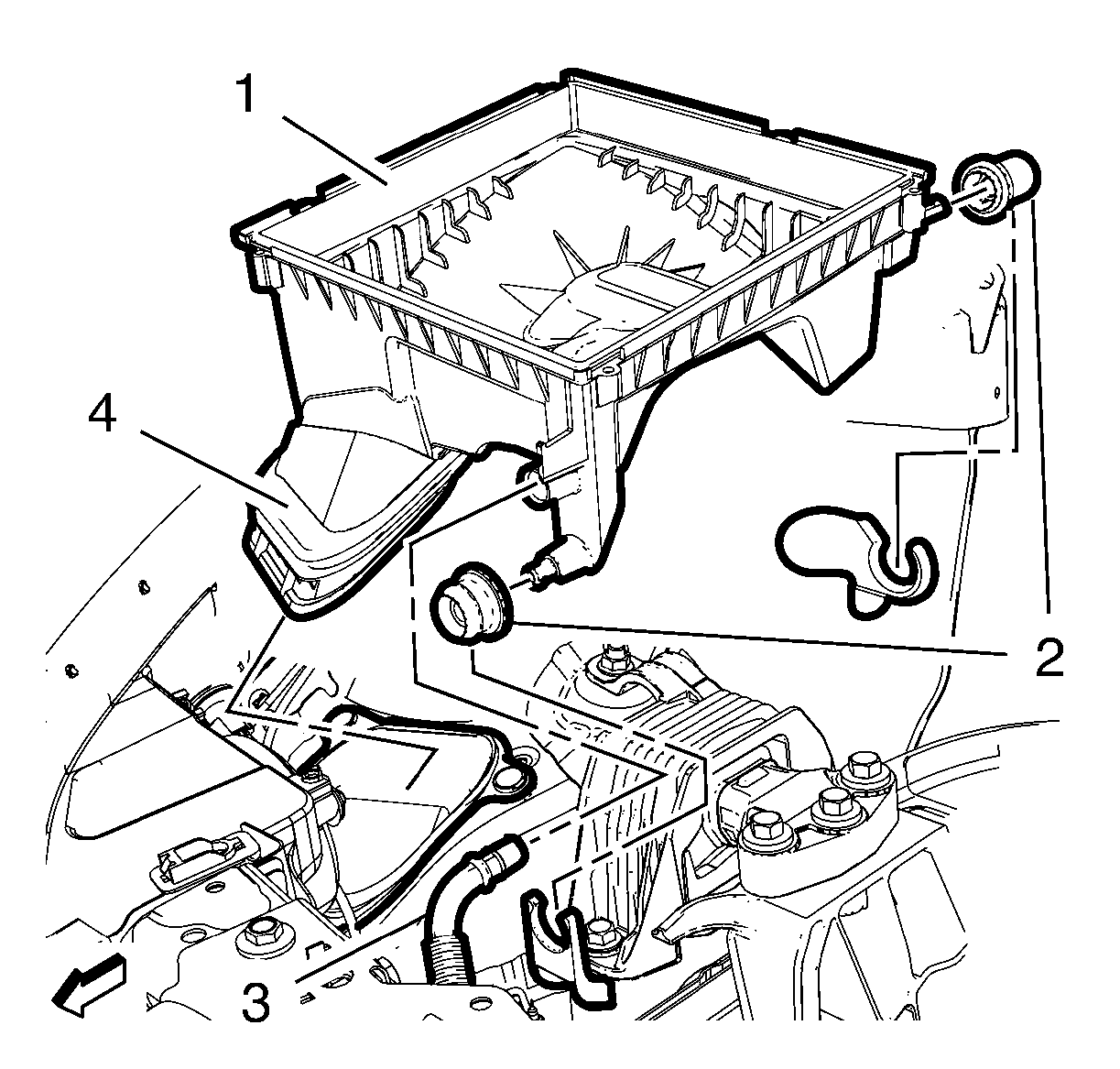

    Fig 1: Air Cleaner Insulator And Air Cleaner Lower Housing
    GM2756410Courtesy of GENERAL MOTORS COMPANY
  4. Remove the air cleaner lower housing (1) from the air cleaner brackets.
  5. Remove the air cleaner bracket insulators (2) from the air cleaner lower housing (1).
  6. Remove the air cleaner insulator (4) from the air cleaner lower housing (1).
