Installation Procedure

WARNING: This page is about a different variant/trim than selected.

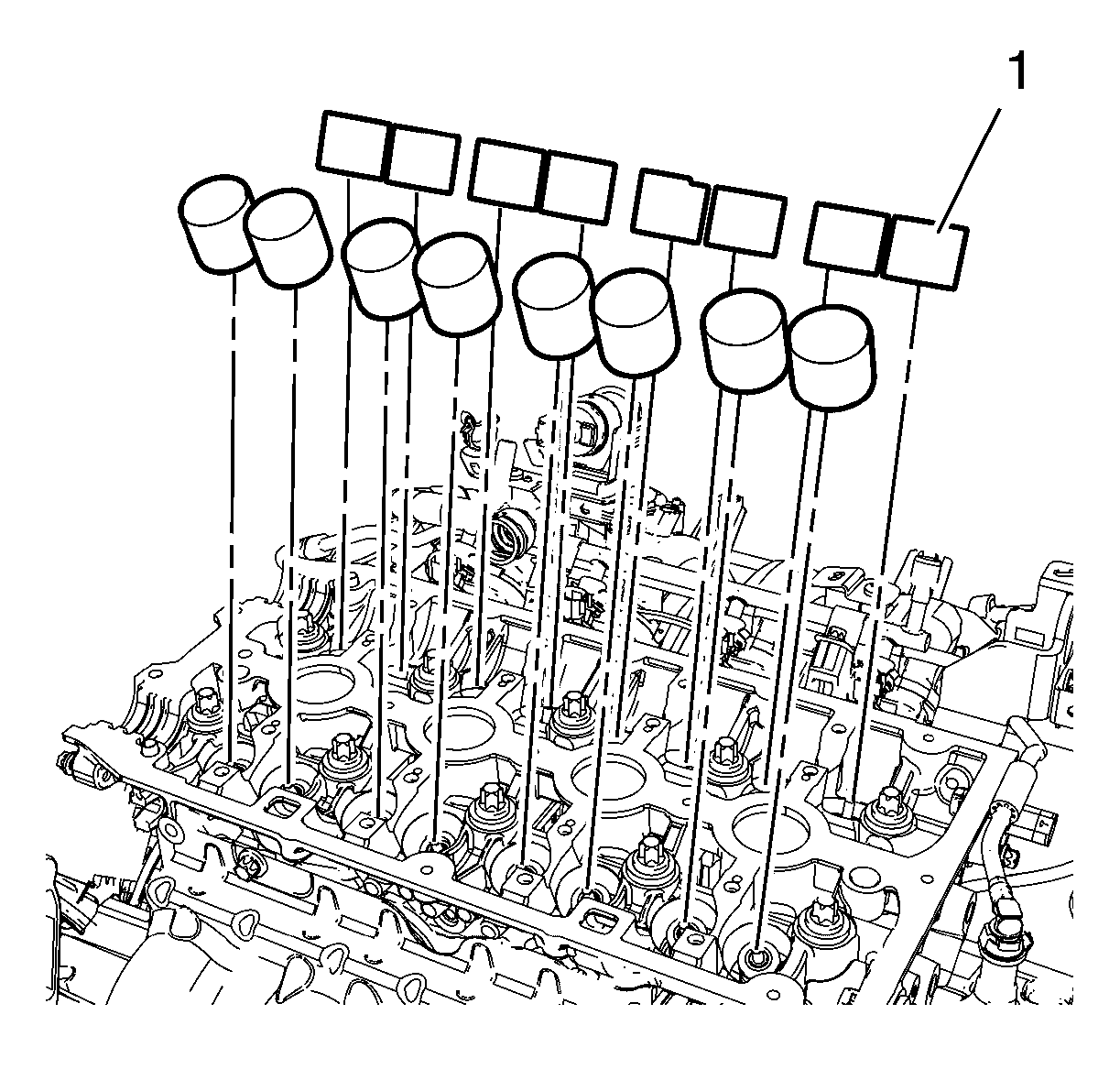

  1. Install the 16 valve lifters (1), using the EN-845  suction device.
    Fig 1: Valve Lifters
    GM2028318Courtesy of GENERAL MOTORS COMPANY
    NOTE: Observe the correct assignment.
    NOTE: Coat the sliding surfaces with NEW engine oil.
  2. Install the camshafts. Refer to Camshaft Replacement .
