Installation Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Install the timing belt upper front cover (1).
    Fig 1: Timing Belt Upper Front Cover
    GM2027572Courtesy of GENERAL MOTORS COMPANY
  2. Install the 2 timing belt upper front cover bolts (2) and tighten to 6 N.m (53 lb in).
    CAUTION: Refer to Fastener Caution .
  3. Connect the wiring harness plug (2).

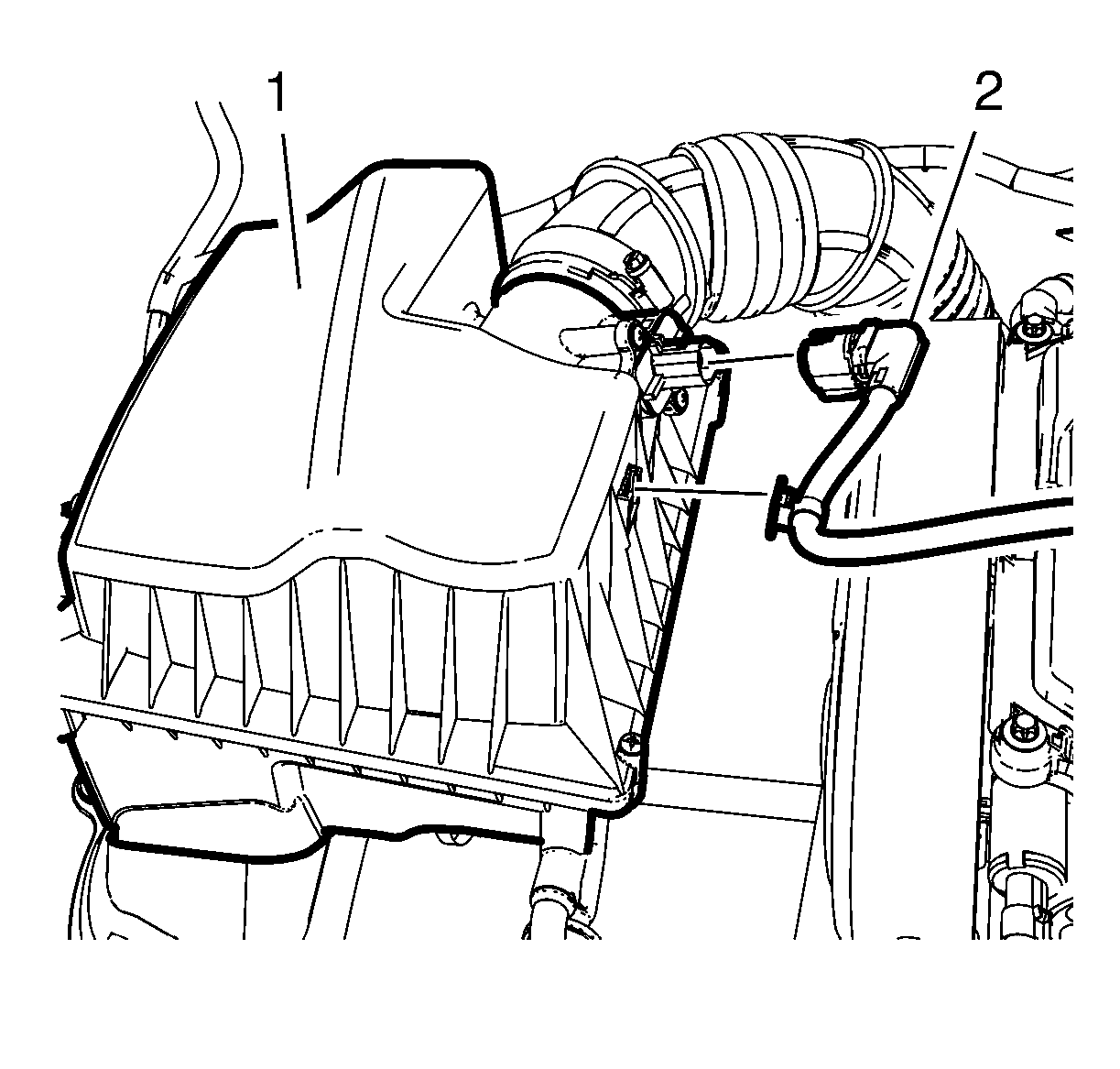

    Fig 2: Air Cleaner
    GM2652314Courtesy of GENERAL MOTORS COMPANY
  4. Clip in the wiring harness to the air cleaner (1).
