Installation Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Re-cut the 4 timing belt rear cover threads in the cylinder head and the 4 timing belt rear cover bolt threads.
  2. Install the timing belt rear cover (1).

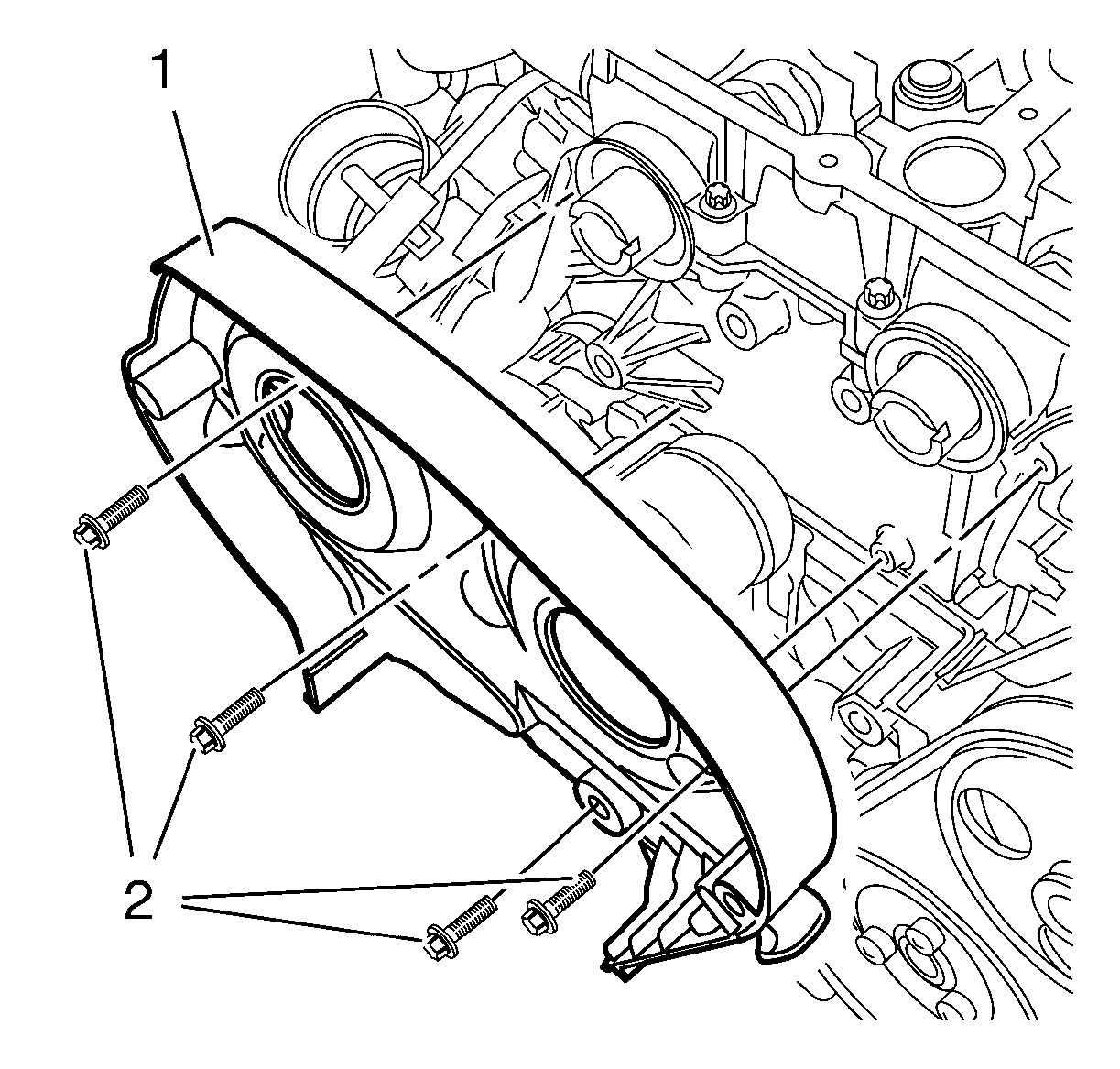

    Fig 1: Timing Belt Rear Cover And Bolts
    GM2026845Courtesy of GENERAL MOTORS COMPANY
    NOTE: If the cover is contaminated with oil. You have to clean it close.
  3. Install the 4 timing belt rear cover bolts (2) and tighten to 6 N.m (53 lb in).
    CAUTION: Refer to Fastener Caution .
    NOTE: Apply thread lock agent to the bolts.
  4. Install the timing belt tensioner. Refer to Timing Belt Tensioner Replacement .
  5. Install the camshaft position actuator adjuster. Refer to Camshaft Position Actuator Adjuster Replacement .
