Installation Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Install the lower timing belt cover (1).

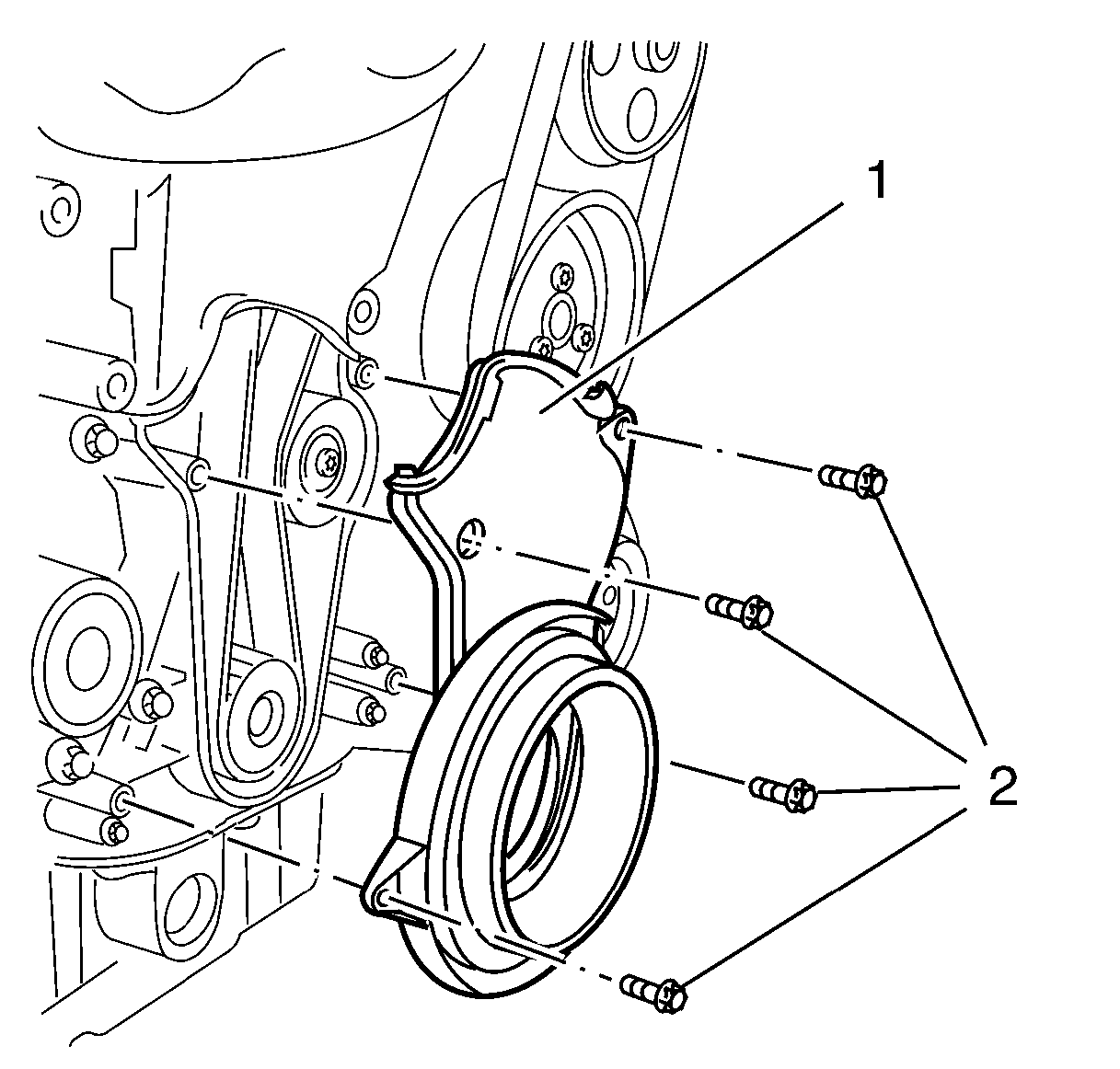

    Fig 1: Timing Belt Lower Front Cover
    GM2026840Courtesy of GENERAL MOTORS COMPANY
    CAUTION: Refer to Fastener Caution .
  2. Install the 4 lower timing belt cover bolts (2) and tighten to 6 N.m (53 lb in).
  3. Install the crankshaft balancer. Refer to Crankshaft Balancer Replacement (Automatic Transmission)  and Crankshaft Balancer Replacement (Manual Transmission) .
  4. Lower the vehicle.
