Installation Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Install the piston (3) and the spring (4).

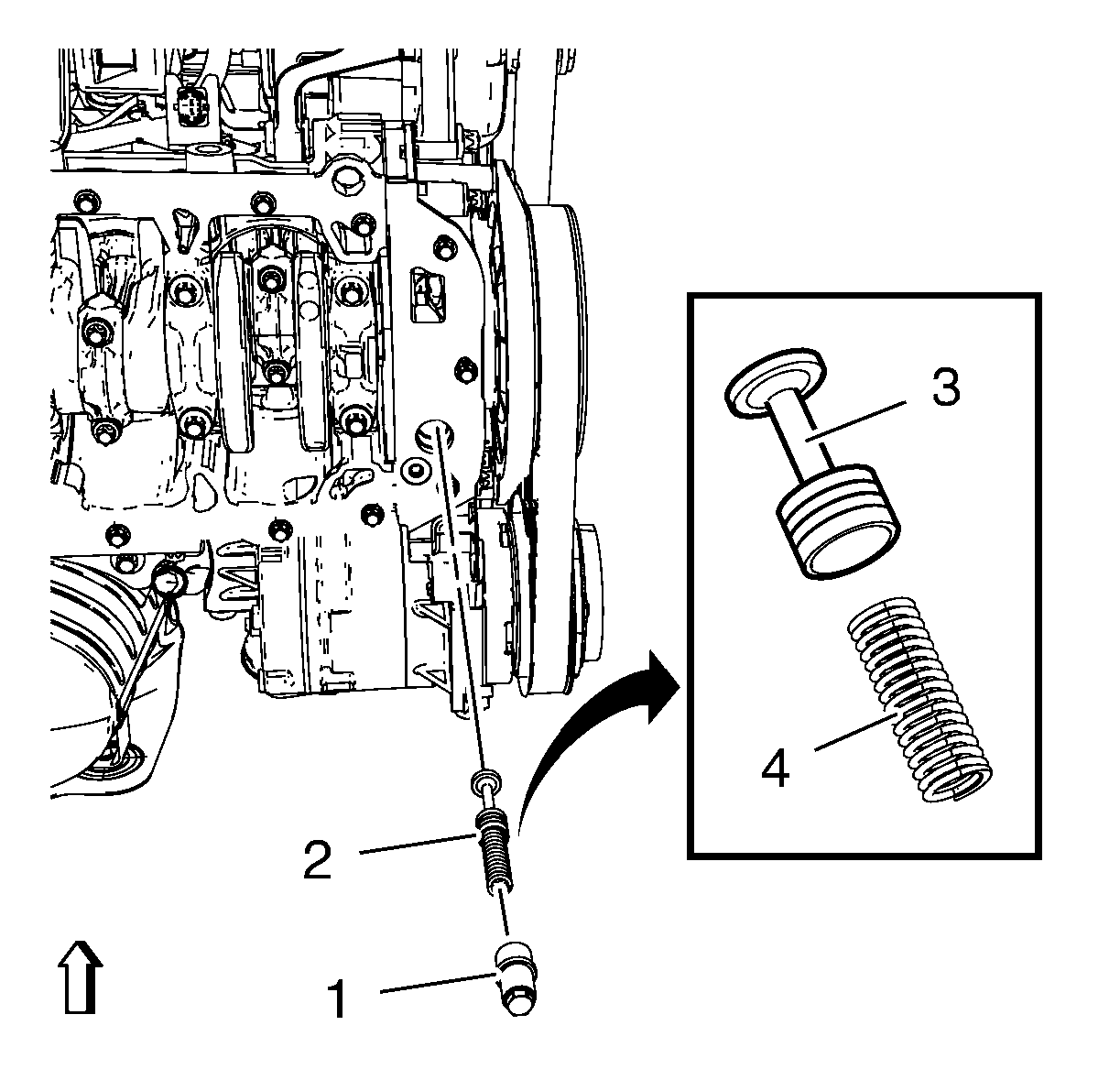

    Fig 1: Oil Pressure Relief Valve Assembly
    GM2028017Courtesy of GENERAL MOTORS COMPANY
  2. Install the oil pressure relief valve assembly (2).
  3. Install the oil pressure relief valve closure bolt (1) and tighten to 30 N.m (22 lb ft).
    CAUTION: Refer to Fastener Caution .
  4. Install the oil pan. Refer to Oil Pan Replacement (Manual Transmission)  and Oil Pan Replacement (Automatic Transmission) .
