Installation Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Install the oil level indicator tube (2).

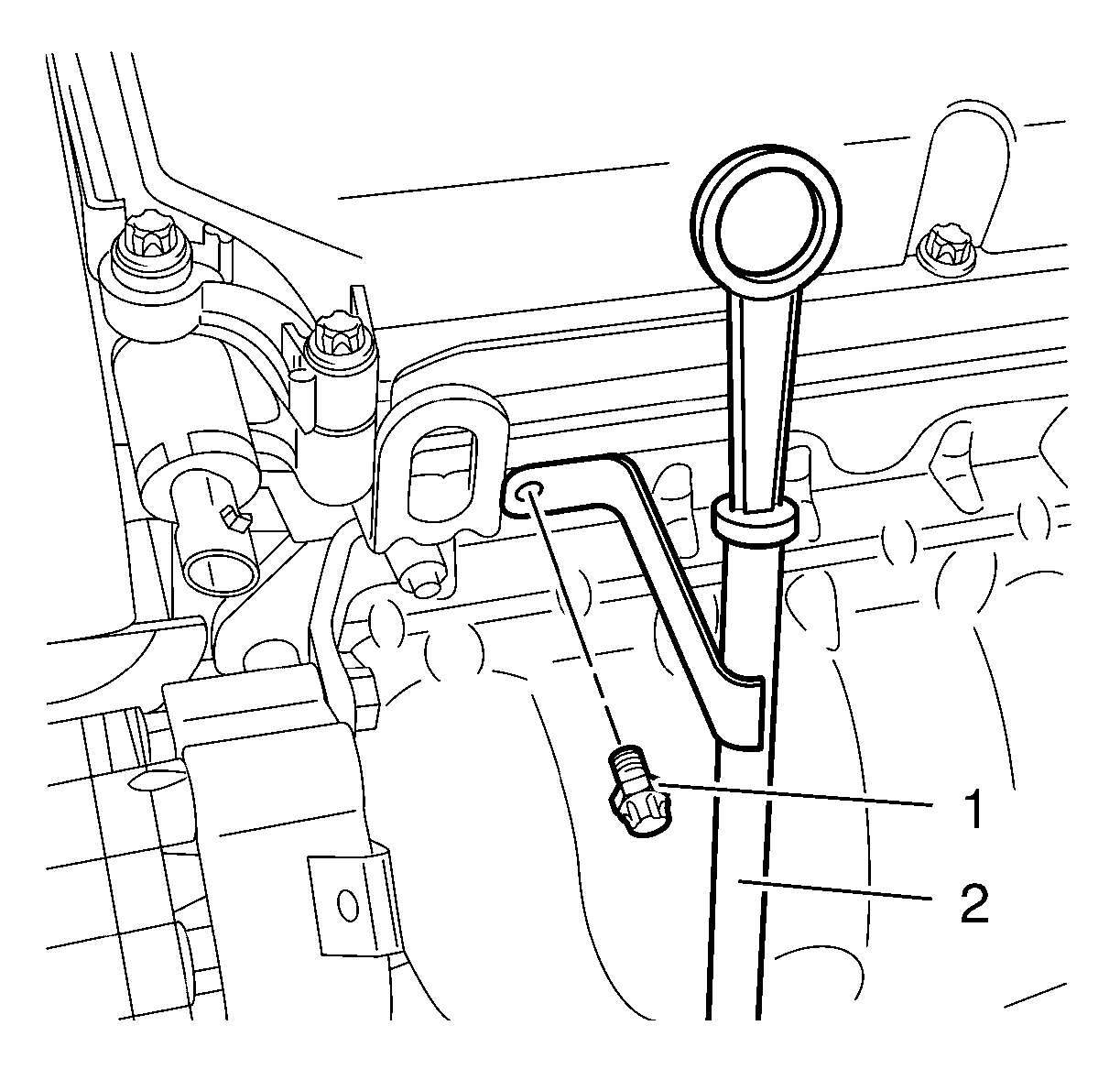

    Fig 1: Oil Level Indicator Tube And Bolt
    GM2026827Courtesy of GENERAL MOTORS COMPANY
  2. Install a NEW oil level indicator tube gasket.
  3. Install the oil level indicator tube bolt (1) and tighten to 15 N.m (11 lb ft).
    CAUTION: Refer to Fastener Caution .
  4. Install the oil dipstick.
  5. Close the hood.
