Oil Flow Check Valve Replacement
WARNING: This page is about a different variant/trim than selected.

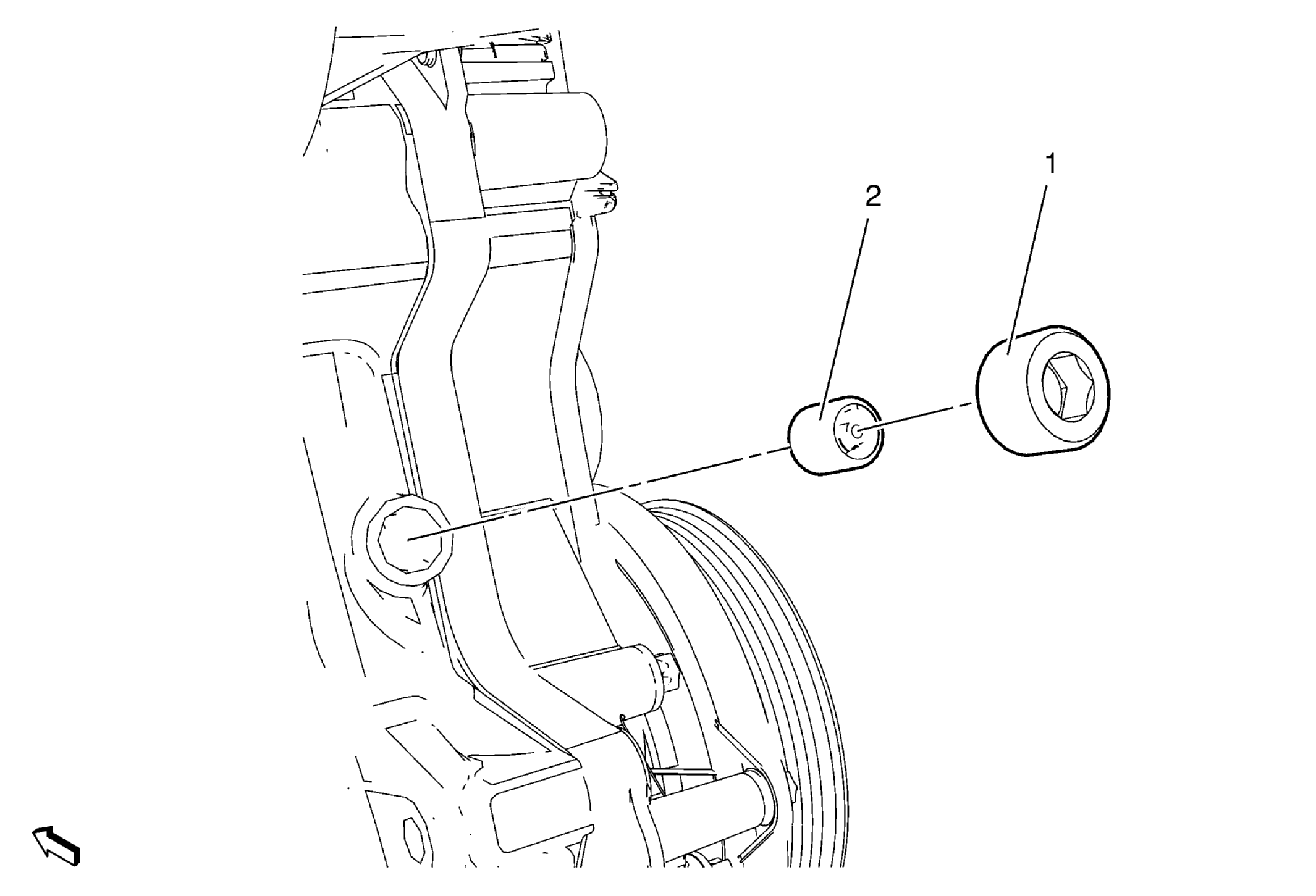

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the generator. Refer to Generator Replacement (1.8L LUW and LWE) . |
|
| 1 | Oil Flow Check Valve Bore Plug
CAUTION:
Refer to Fastener Caution
. Tighten 21 N.m (16 lb ft) |
| 2 | Oil Flow Check Valve |
