Engine Mount Replacement

WARNING: This page is about a different variant/trim than selected.

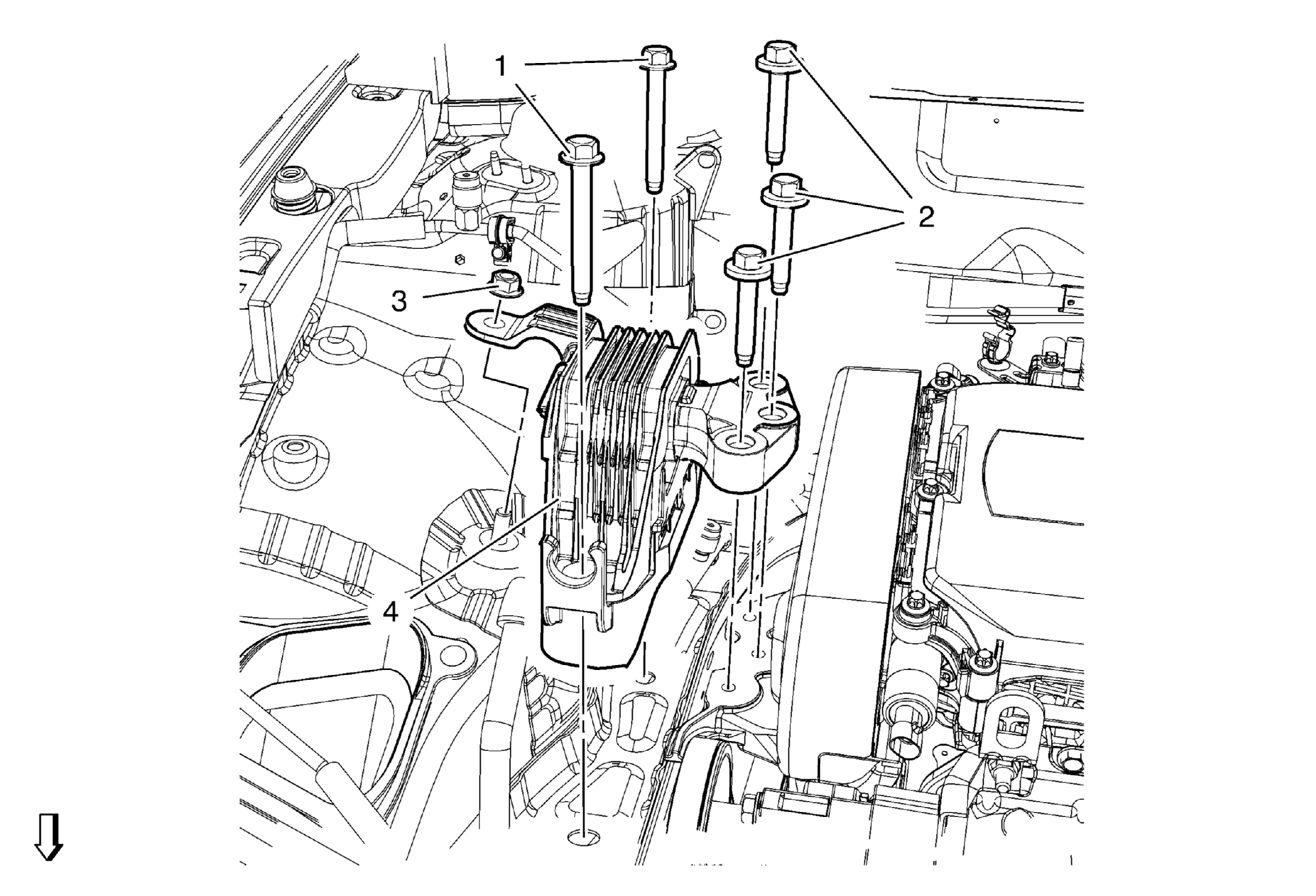

Fig 1: Engine Mount And Bolts

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the air cleaner assembly. Refer to Air Cleaner Assembly Replacement (1.8L LUW) and Air Cleaner Assembly Replacement (1.8L LWE) . Support the engine. Install a suitable engine lifting device. Install a suitable cable at the 3 engine lift brackets and at the engine lifting device.
1	Engine Mount Bolt (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 62 N.m (46 lb ft)
2	Engine Mount Bracket Bolt (Qty: 3) CAUTION: Refer to Torque-to-Yield Fastener Caution . Procedure Install NEW bolts, do NOT reuse old bolts Tighten 50 N.m + 60°-75° (37 lb ft + 60°-75°)
3	Engine Mount Nut Tighten 62 N.m (46 lb ft)
4	Engine Mount
