Installation Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Clean the drive belt tensioner thread.
  2. Install drive belt tensioner (2).

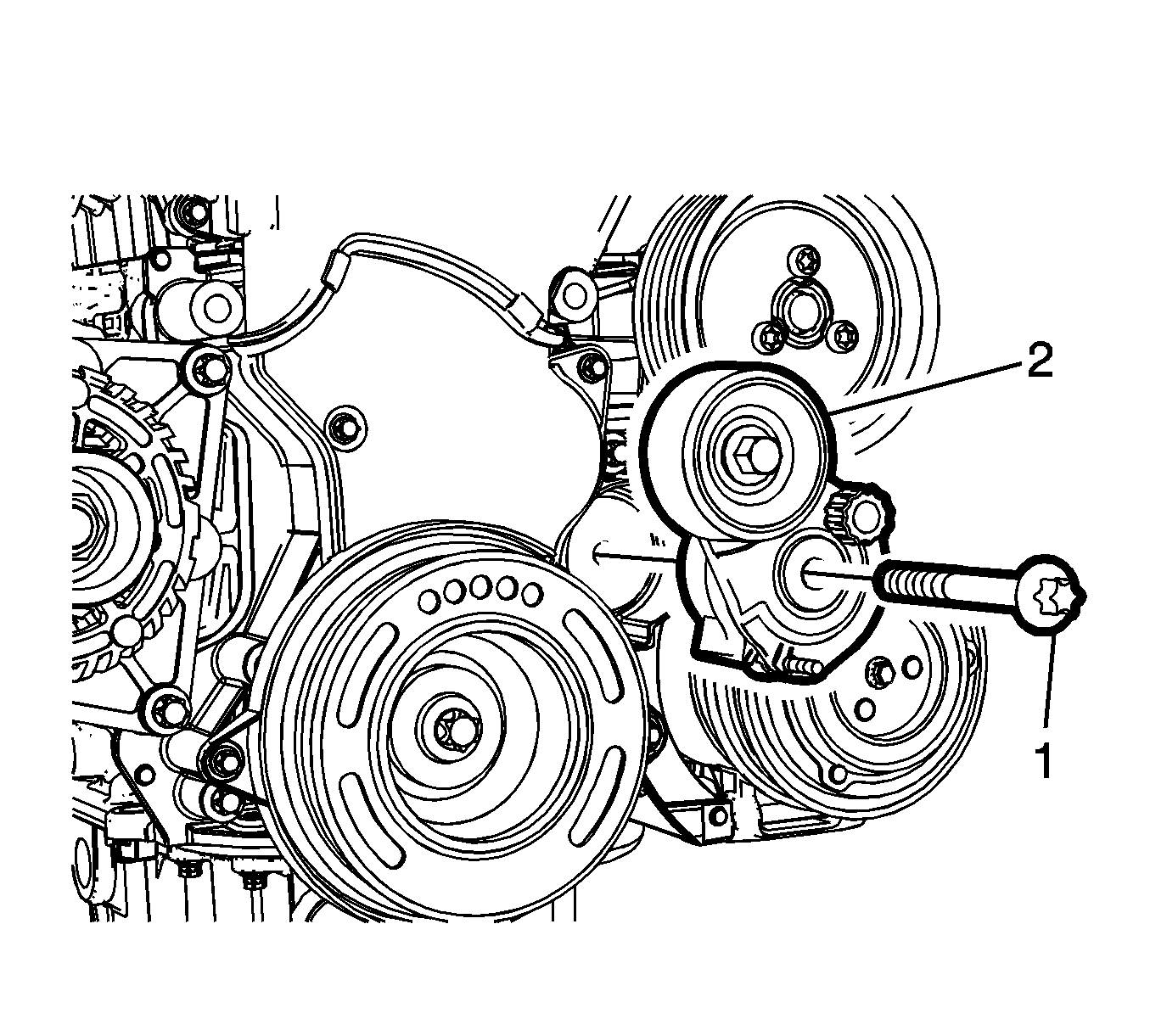

    Fig 1: Drive Belt Tensioner Bolt
    GM2495148Courtesy of GENERAL MOTORS COMPANY
  3. Install the drive belt tensioner bolt (1) and tighten to 55 N.m (41 lb ft).
    CAUTION: Refer to Fastener Caution .
  4. Install the generator and air conditioning compressor belt. Refer to Drive Belt Replacement .
