Installation Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Install the drive belt (1).

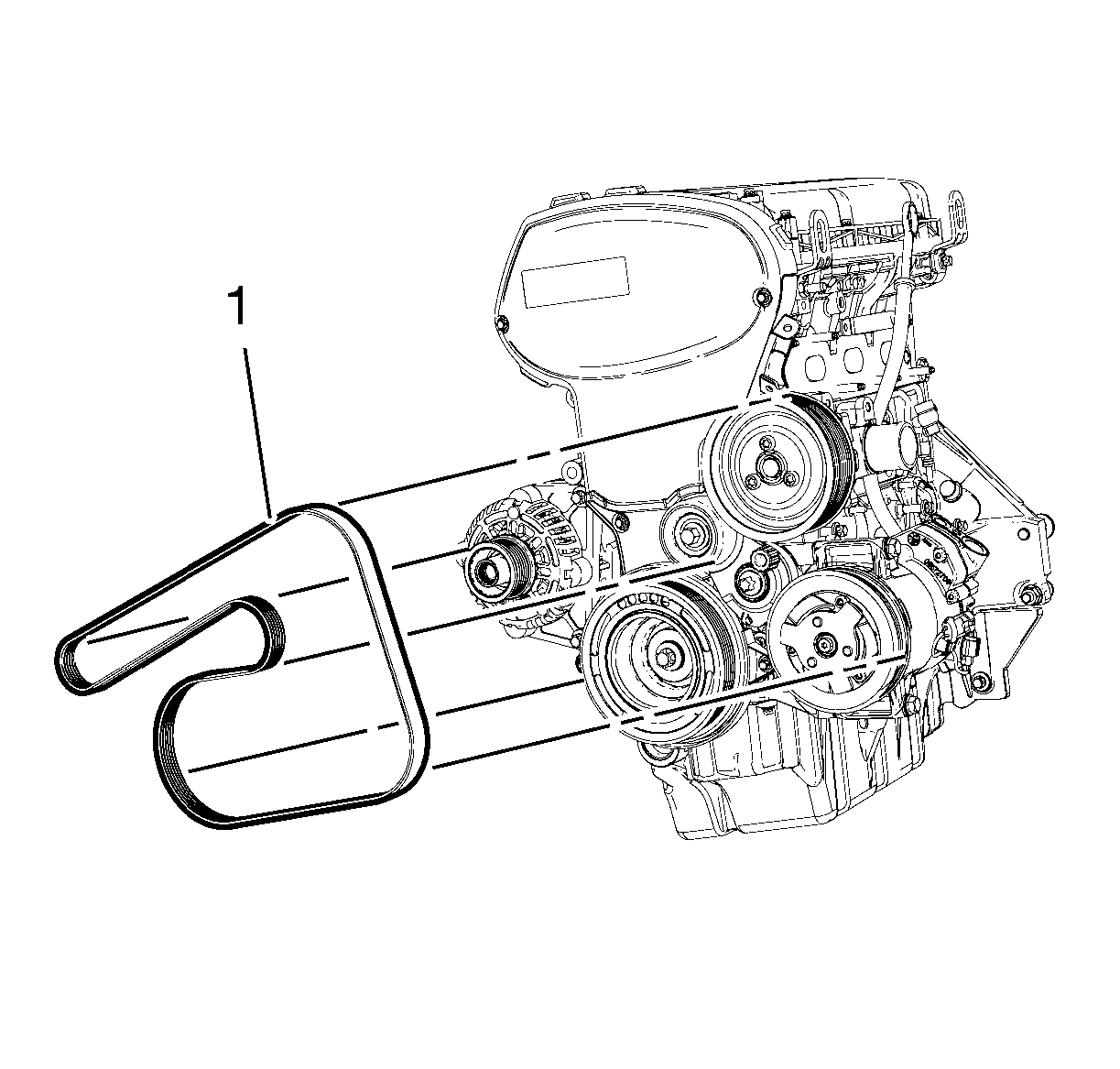

    Fig 1: Drive Belt Routing
    GM2191162Courtesy of GENERAL MOTORS COMPANY
  2. Check the position of the drive belt (3).

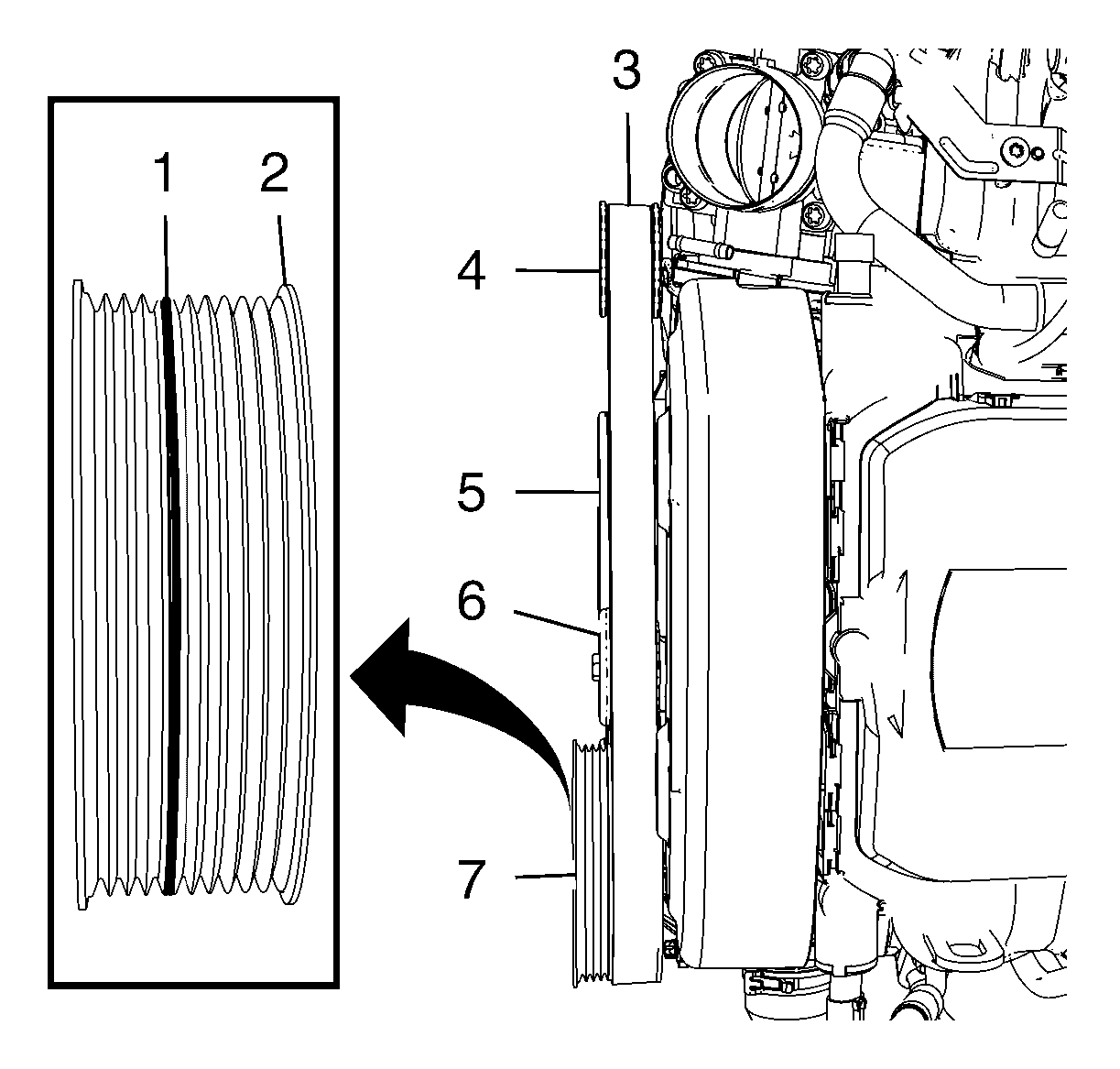

    Fig 2: Checking Drive Belt Position
    GM2547260Courtesy of GENERAL MOTORS COMPANY
    NOTE: Ensure that the drive belt is aligned on the generator pulley (4), crankshaft balancer (5), drive belt tensioner (6) water pump pulley (7) and A/C compressor. The drive belt must lie on the water pump pulley between the flange (1) and (2).
  3. Release tension to the tensioner by rotating counterclockwise (1).

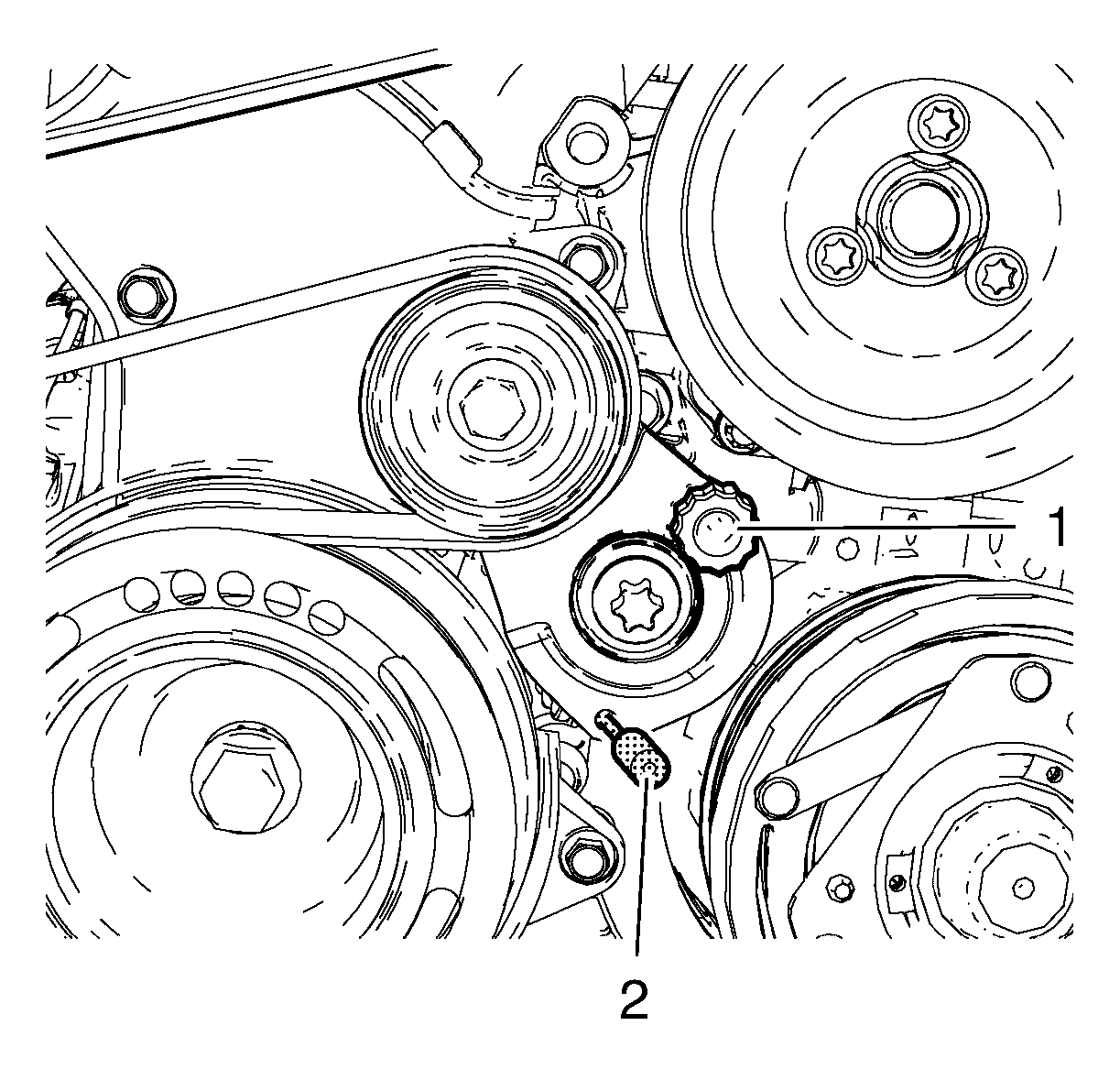

    Fig 3: Drive Belt Tensioner And Locking Pin
    GM2189264Courtesy of GENERAL MOTORS COMPANY
  4. Remove EN 6349  pin (2).
    NOTE: Allow tensioner to slide back slowly.
  5. Apply tension to the tensioner clockwise (1).
  6. Install the right front wheelhouse liner. Refer to Front Wheelhouse Liner Replacement .
  7. Lower the vehicle.
  8. Close the hood.
