Installation Procedure

WARNING: This page is about a different variant/trim than selected.

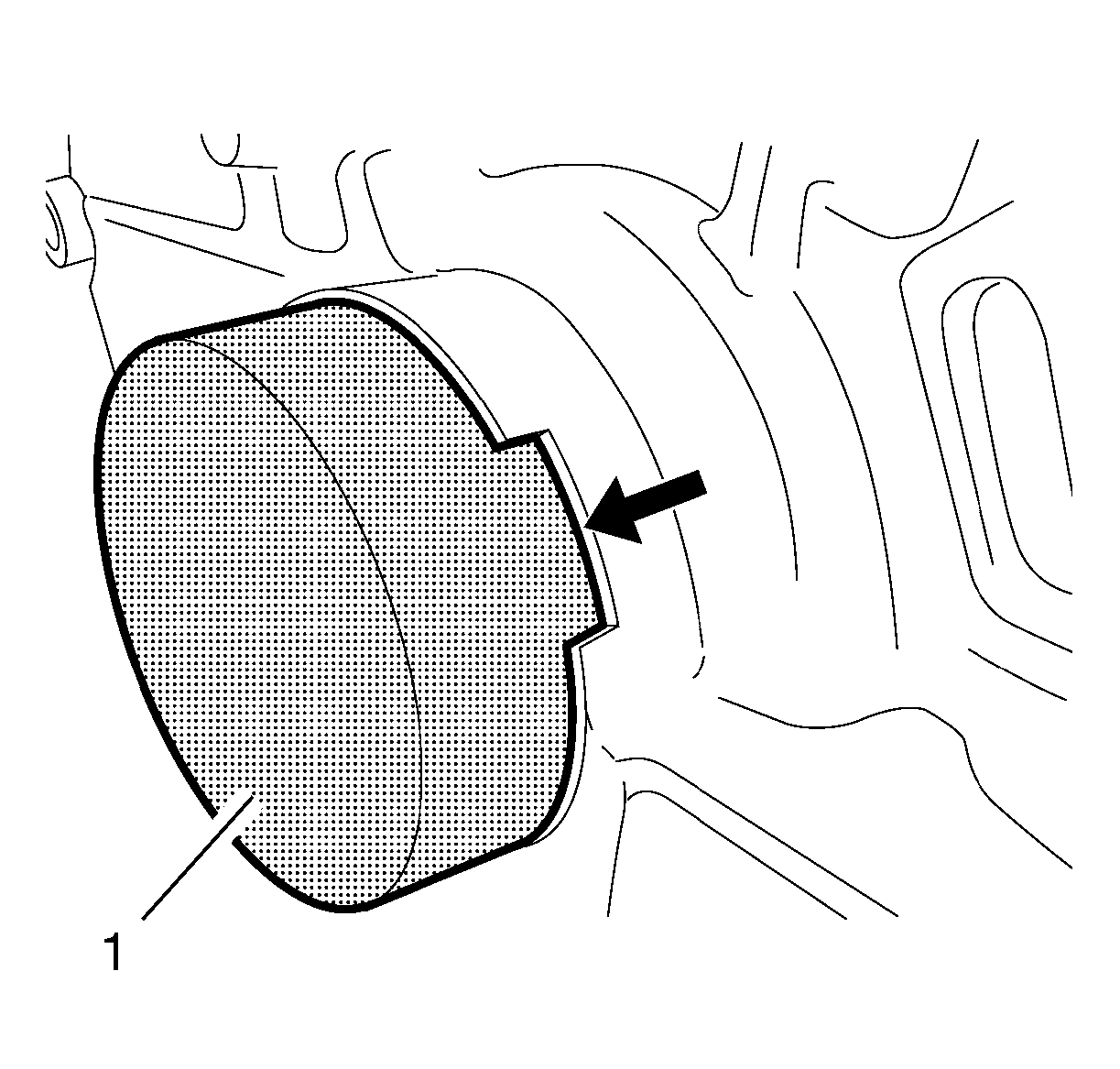

Slide the crankshaft rear oil seal (2) across the EN-235-6 installer (1).

Fig 1: Crankshaft Rear Oil Seal
Courtesy of GENERAL MOTORS COMPANY

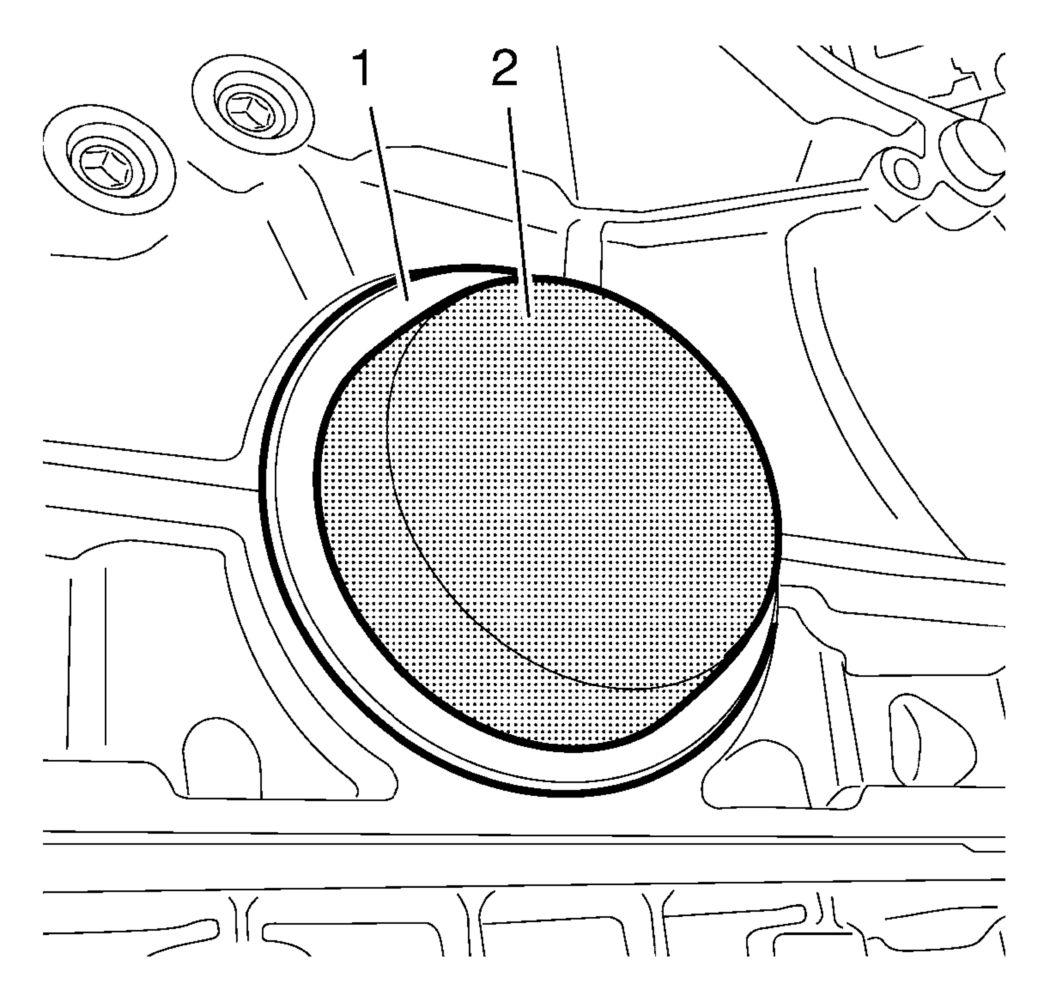

Install the crankshaft rear oil seal (1) with EN-235-6 installer (2) to the crankshaft.

Fig 2: Crankshaft Rear Oil Seal And Installer
Courtesy of GENERAL MOTORS COMPANY

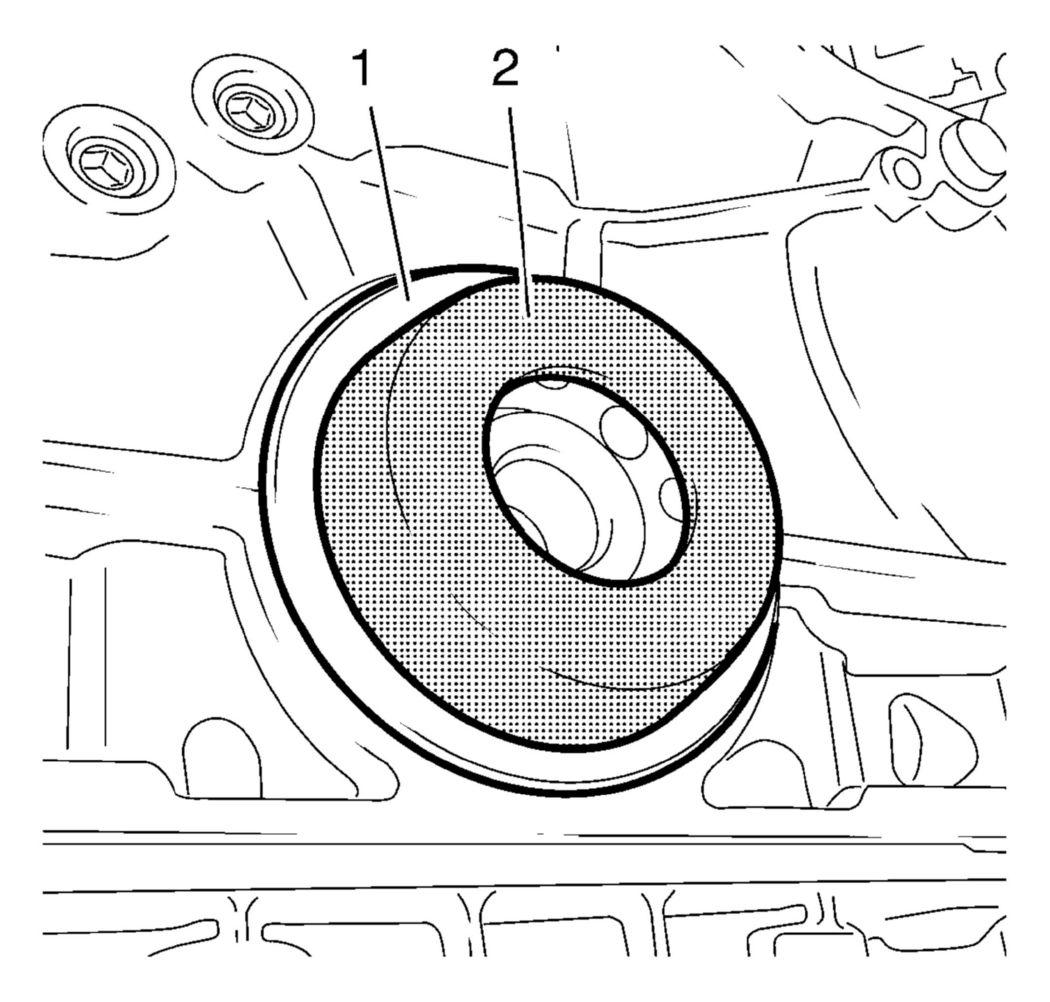

Use EN-658-1 installer (2) to strike the crankshaft rear oil seal (1)

Fig 3: Oil Seal Installer
Courtesy of GENERAL MOTORS COMPANY

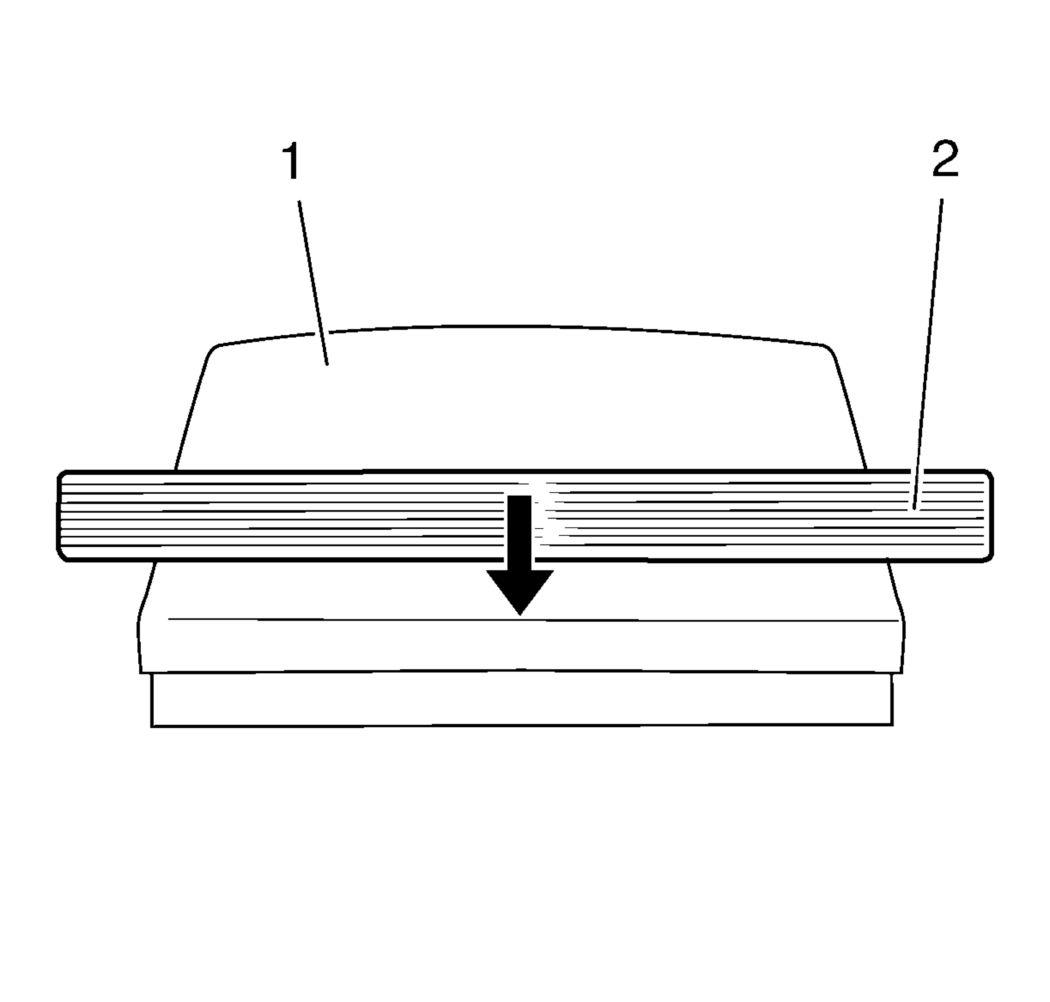

Check the crankshaft rear oil seal for proper seat, the EN-658-1 installer must be flush with the cylinder block at the position (1).

Fig 4: Check Crankshaft Rear Oil Seal For Proper Seat
Courtesy of GENERAL MOTORS COMPANY

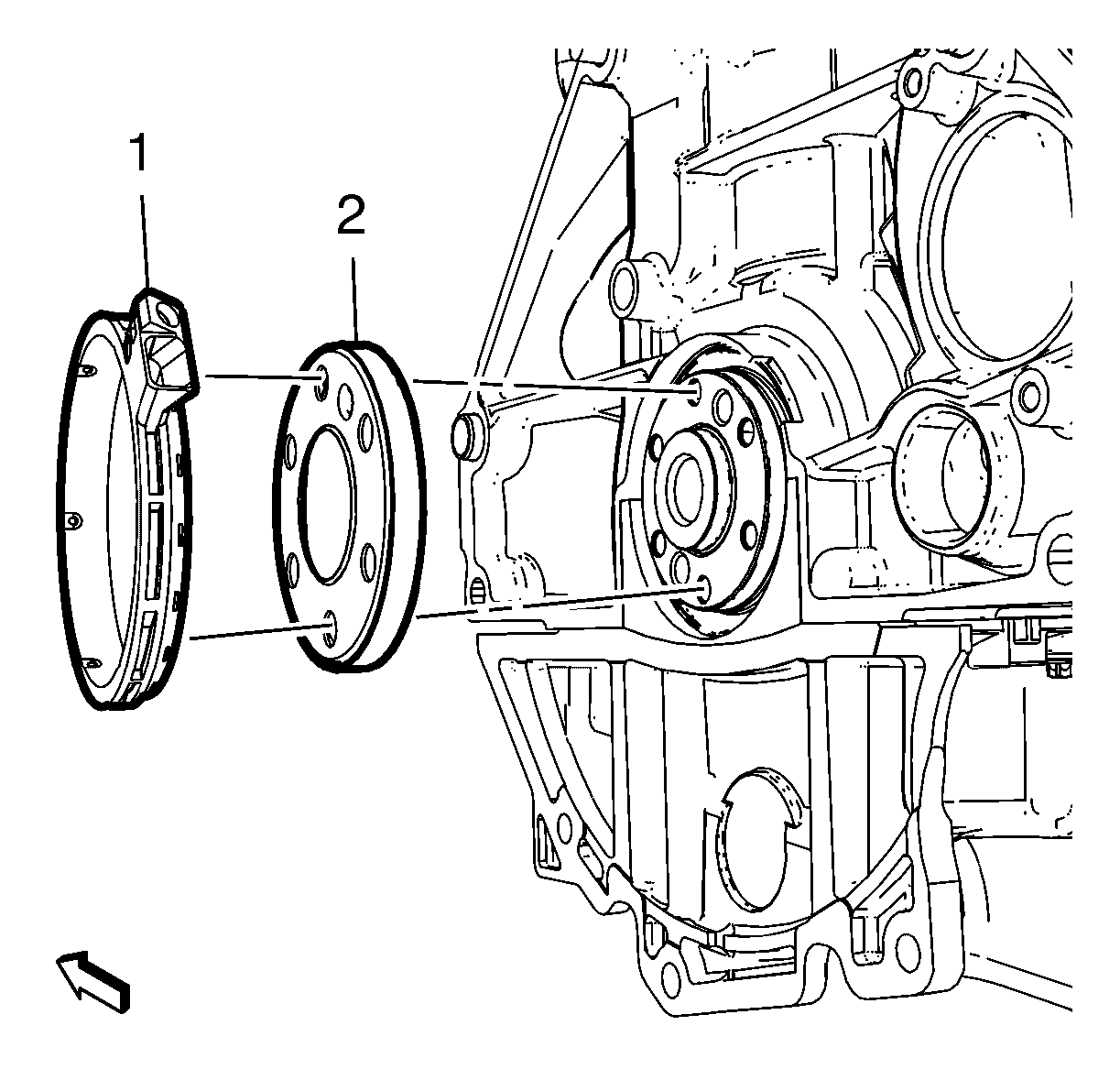

Install the crankshaft position sensor reluctor ring (2).

Fig 5: Crankshaft Position Sensor Reluctor Ring And Oil Seal Housing
Courtesy of GENERAL MOTORS COMPANY
Install the crankshaft rear oil seal housing (1).
CAUTION: Do not allow the crankshaft encoder wheel to come into contact with external magnetic fields or sharp metal objects. Do not drop the crankshaft encoder wheel. Do not damage the rubberized encoder track. Failure to follow these precautions may cause damage to the component.

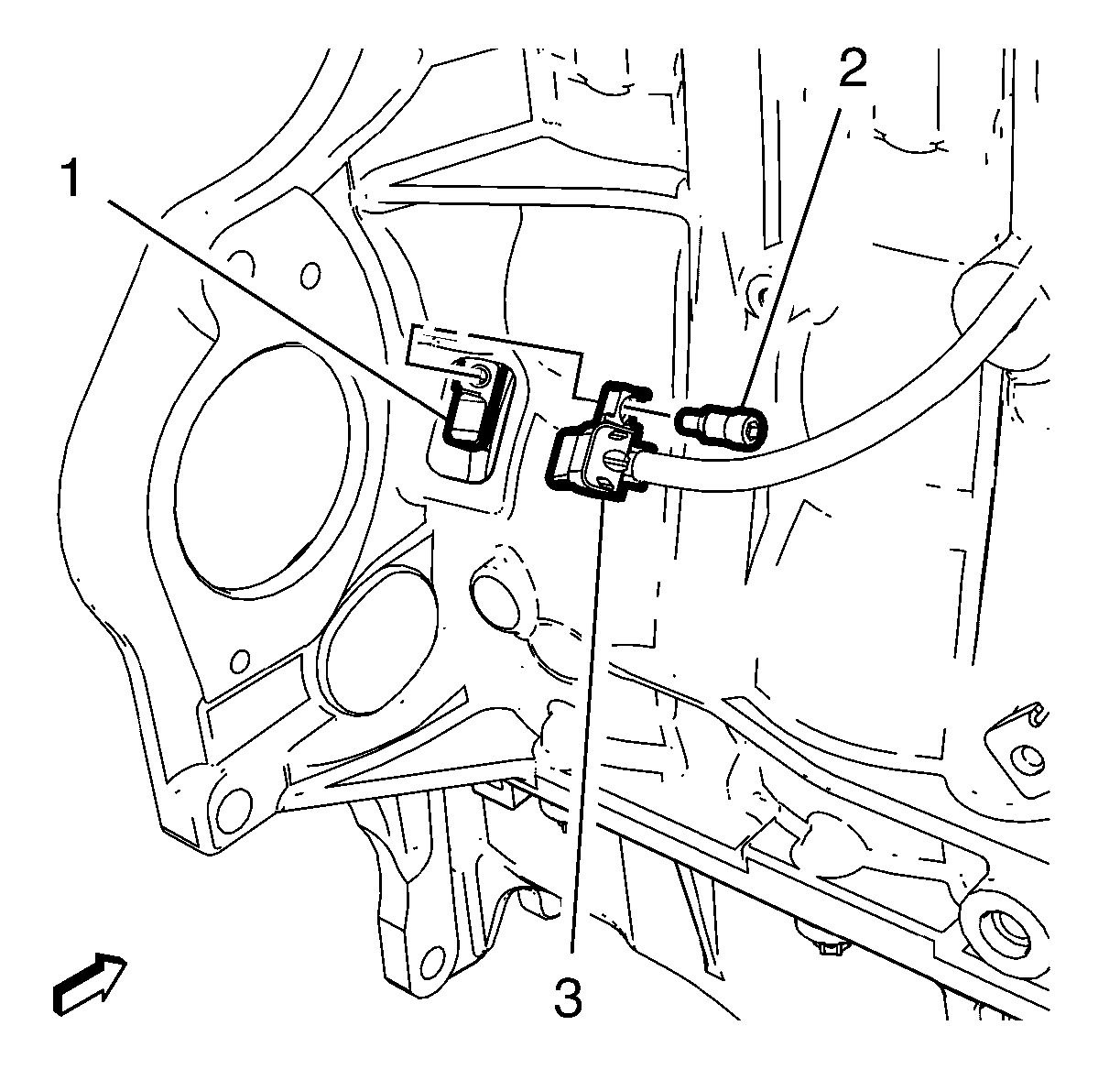

Install the crankshaft position sensor (3) to the crankshaft rear oil seal housing (1).

Fig 6: Crankshaft Position Sensor And Bolt
Courtesy of GENERAL MOTORS COMPANY
Install the crankshaft position sensor bolt (2) and tighten to 4.5 N.m (40 lb in).
CAUTION: Refer to Fastener Caution .
Remove the collecting basin.
For vehicle with manual transmission: install the engine flywheel. Refer to Engine Flywheel Replacement (Manual Transmission) .
For vehicle with automatic transmission: install the automatic transmission flex plate. Refer to Automatic Transmission Flex Plate Replacement .
