Removal Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Replace the timing belt. Refer to Timing Belt Replacement .
  2. Remove the crankshaft sprocket (1).
    Fig 1: Crankshaft Sprocket
    GM2028278Courtesy of GENERAL MOTORS COMPANY

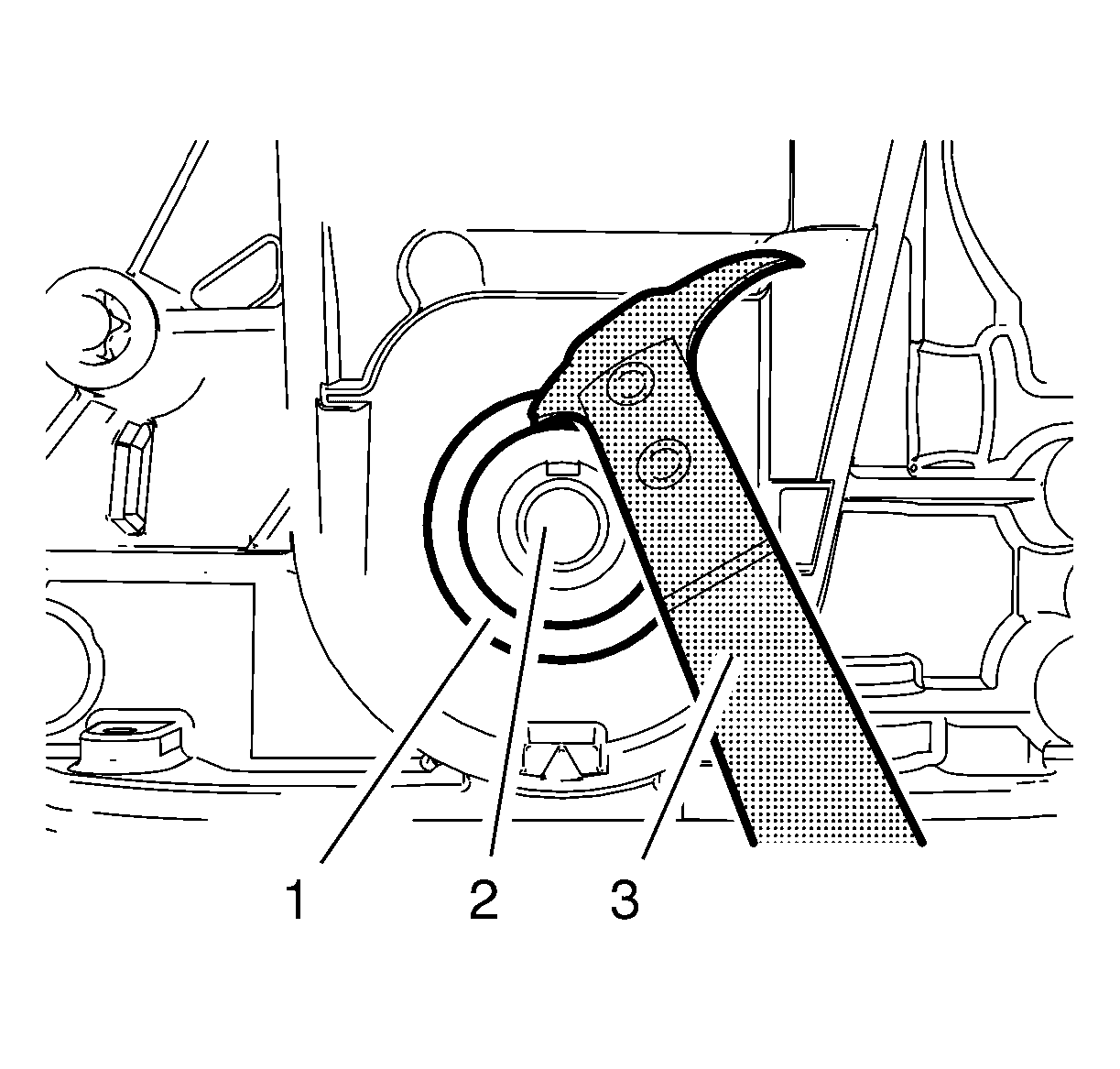

  3. Using the EN-45000  remover (3), remove the crankshaft front oil seal (1) from the crankshaft (2).
    Fig 2: Crankshaft Front Oil Seal Removal Tool
    GM2501418Courtesy of GENERAL MOTORS COMPANY
    CAUTION: Clean the crankshaft sealing surface with a clean, lint-free towel. Inspect lead-in edge of crankshaft for burrs/sharp edges that could damage the rear main oil seal. Remove burrs/sharp edges with crocus cloth before proceeding.
