Installation Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Clean the sealing surfaces.

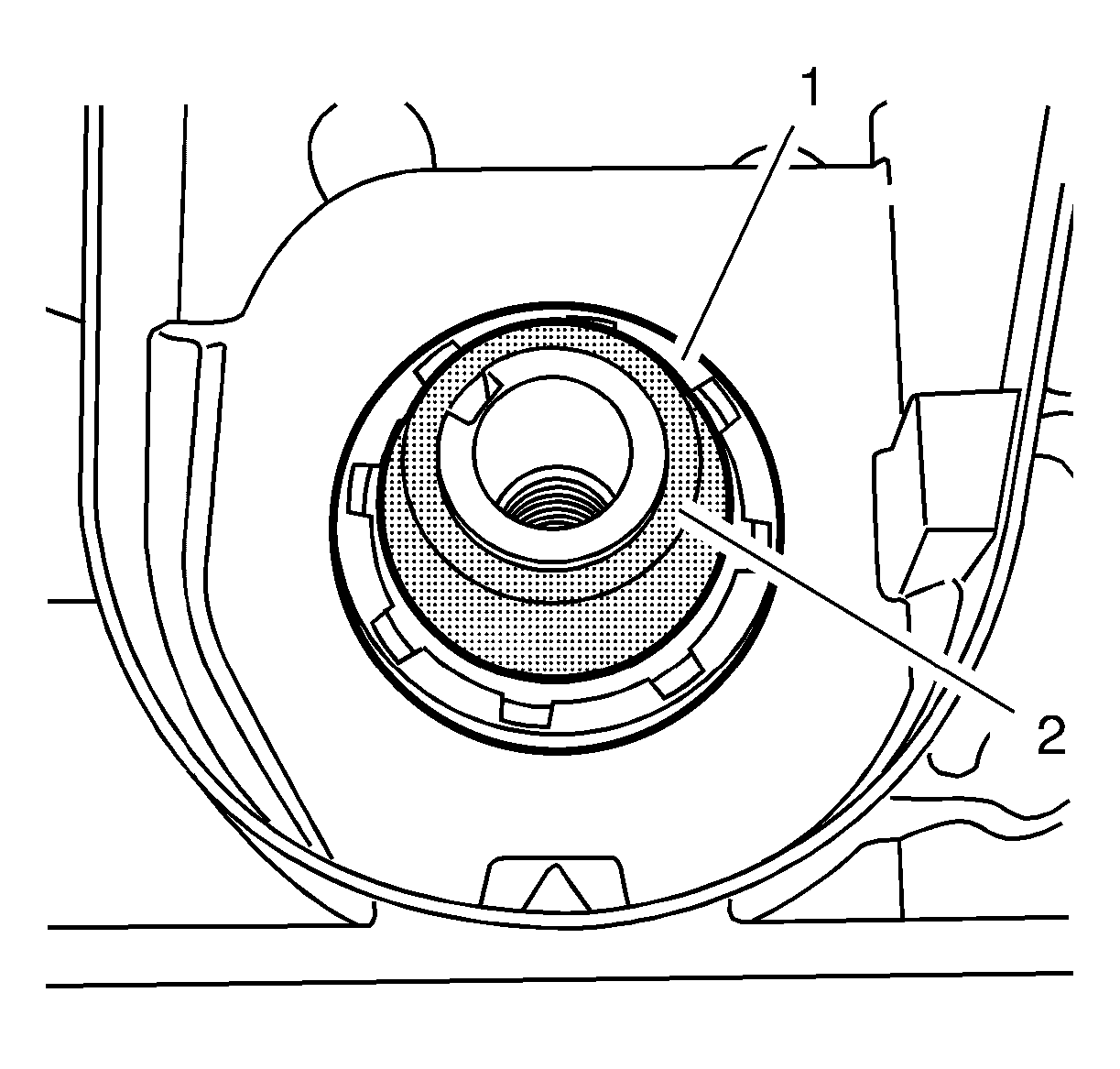

    Fig 1: Crankshaft & Front Oil Seal
    GM2373394Courtesy of GENERAL MOTORS COMPANY
  2. Slide the EN-6351  mounting sleeves (2) protective sleeve onto the crankshaft journal.
  3. Slide the crankshaft front oil seal (1) over the protective sleeve on the crankshaft journal.
  4. Remove the protective sleeve and using the EN-6351  mounting sleeves (3), press the seal ring into the pump housing.

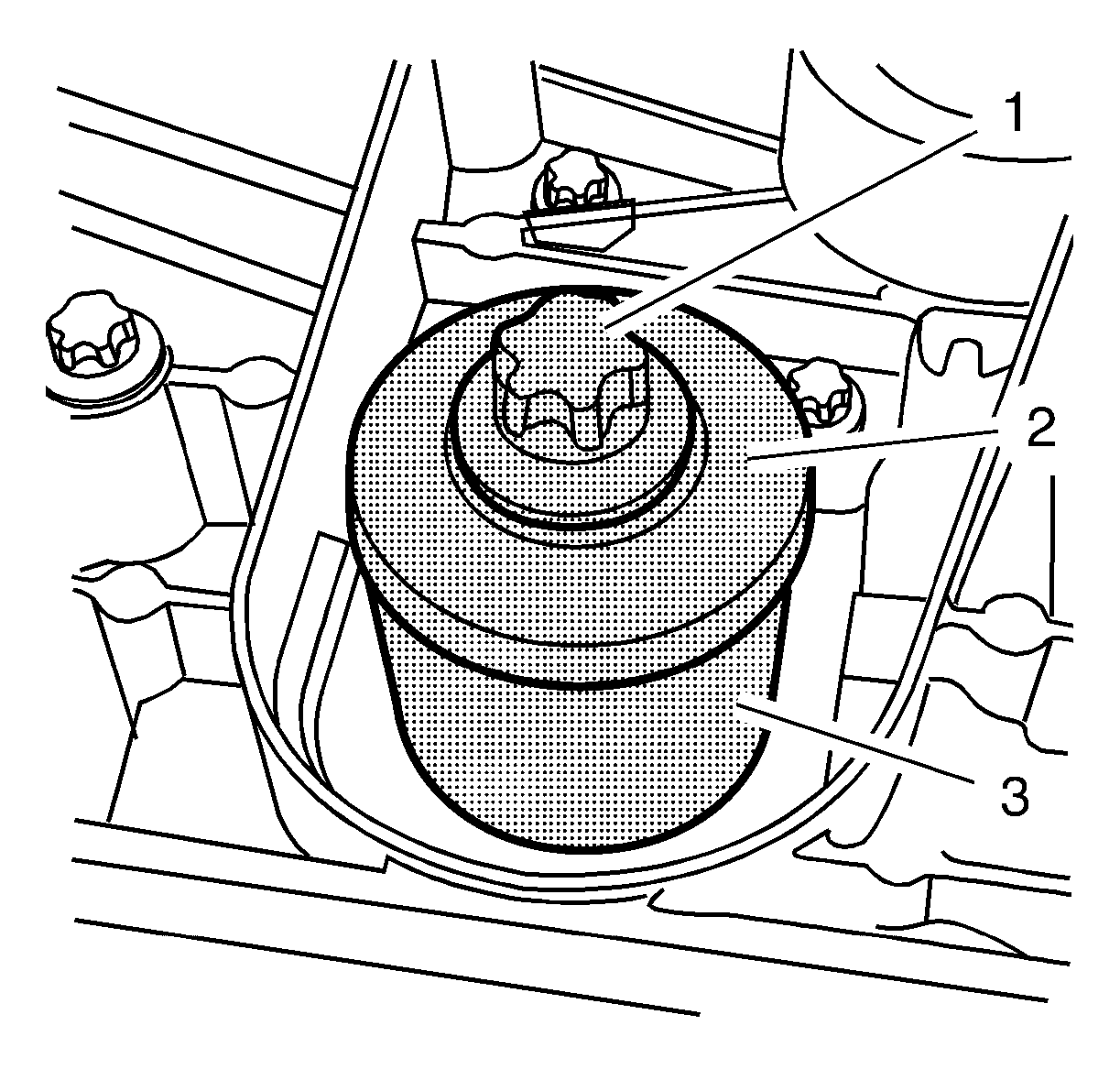

    Fig 2: Crankshaft Drive Gear Bolt, Washer & Sleeves
    GM2373395Courtesy of GENERAL MOTORS COMPANY
  5. Use the crankshaft drive gear bolt (1) and washer (2) to press in the crankshaft front oil seal.
  6. Install the crankshaft sprocket (1).
    Fig 3: Crankshaft Sprocket
    GM2028278Courtesy of GENERAL MOTORS COMPANY
    NOTE: When installing the crankshaft sprocket, the cam and the groove must align (2).
  7. Install the timing belt. Refer to Timing Belt Replacement .
