Removal Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
  2. Remove the right front wheelhouse liner. Refer to Front Wheelhouse Liner Replacement .
  3. Remove the drive belt. Refer to Drive Belt Replacement .
  4. Remove the transmission front mount. Refer to Transmission Front Mount Replacement .
  5. Remove the bolted connection (1).
    Fig 1: Connection Bolt
    GM2538035Courtesy of GENERAL MOTORS COMPANY

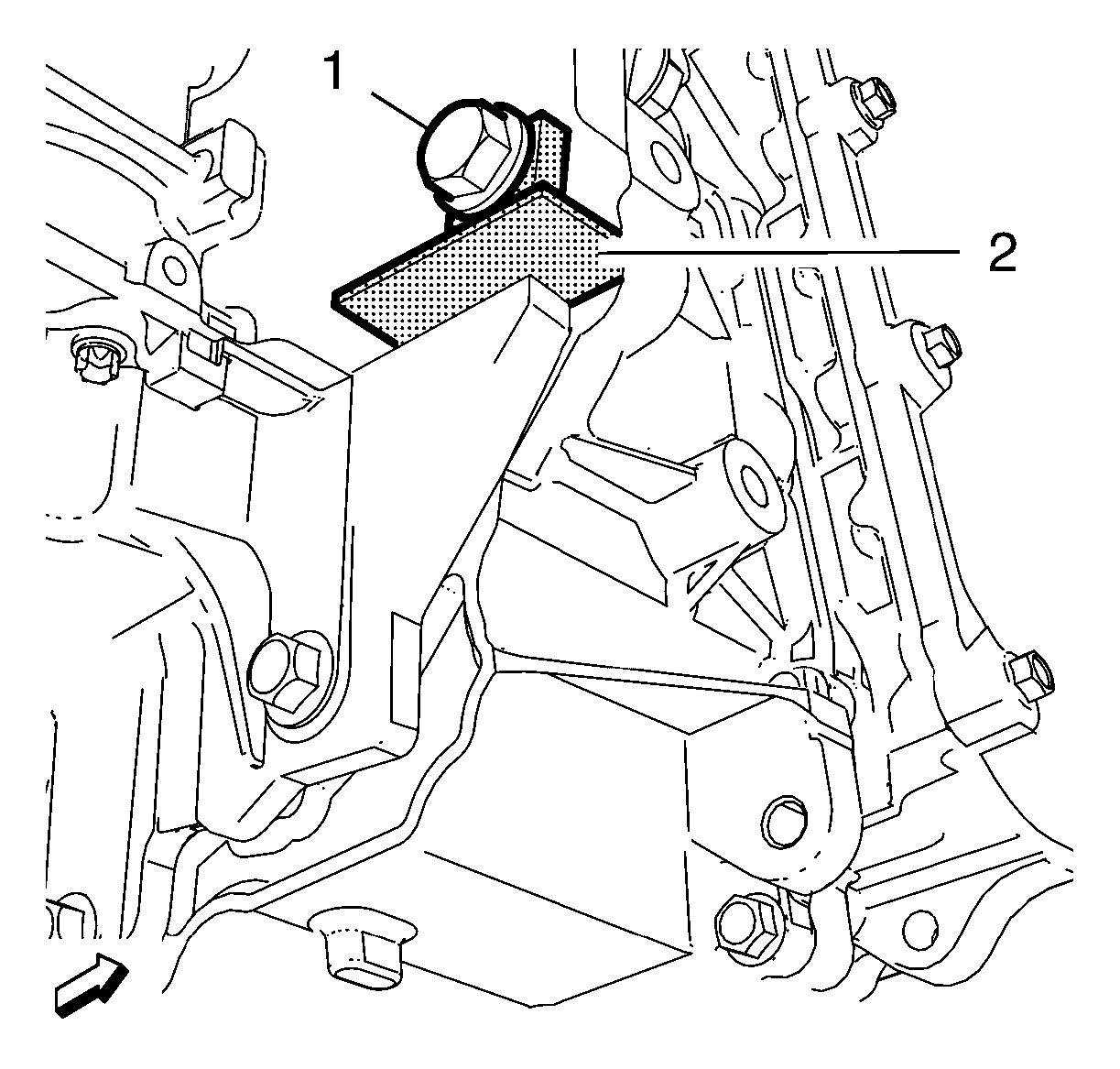

  6. Install the EN-6625  locking device (2) to lock the crankshaft.
    Fig 2: Locking Device
    GM2547255Courtesy of GENERAL MOTORS COMPANY
  7. Install the bolted connection (1).
  8. Remove and DISCARD the crankshaft balancer bolt (1).
    Fig 3: Crankshaft Balancer And Bolt
    GM2027569Courtesy of GENERAL MOTORS COMPANY
  9. Remove the crankshaft balancer (2).
