Removal Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Remove the camshaft position actuator adjuster. Refer to Camshaft Position Actuator Adjuster Replacement .
  2. Use the EN-45000  remover to loosen the camshaft front oil seals (1).

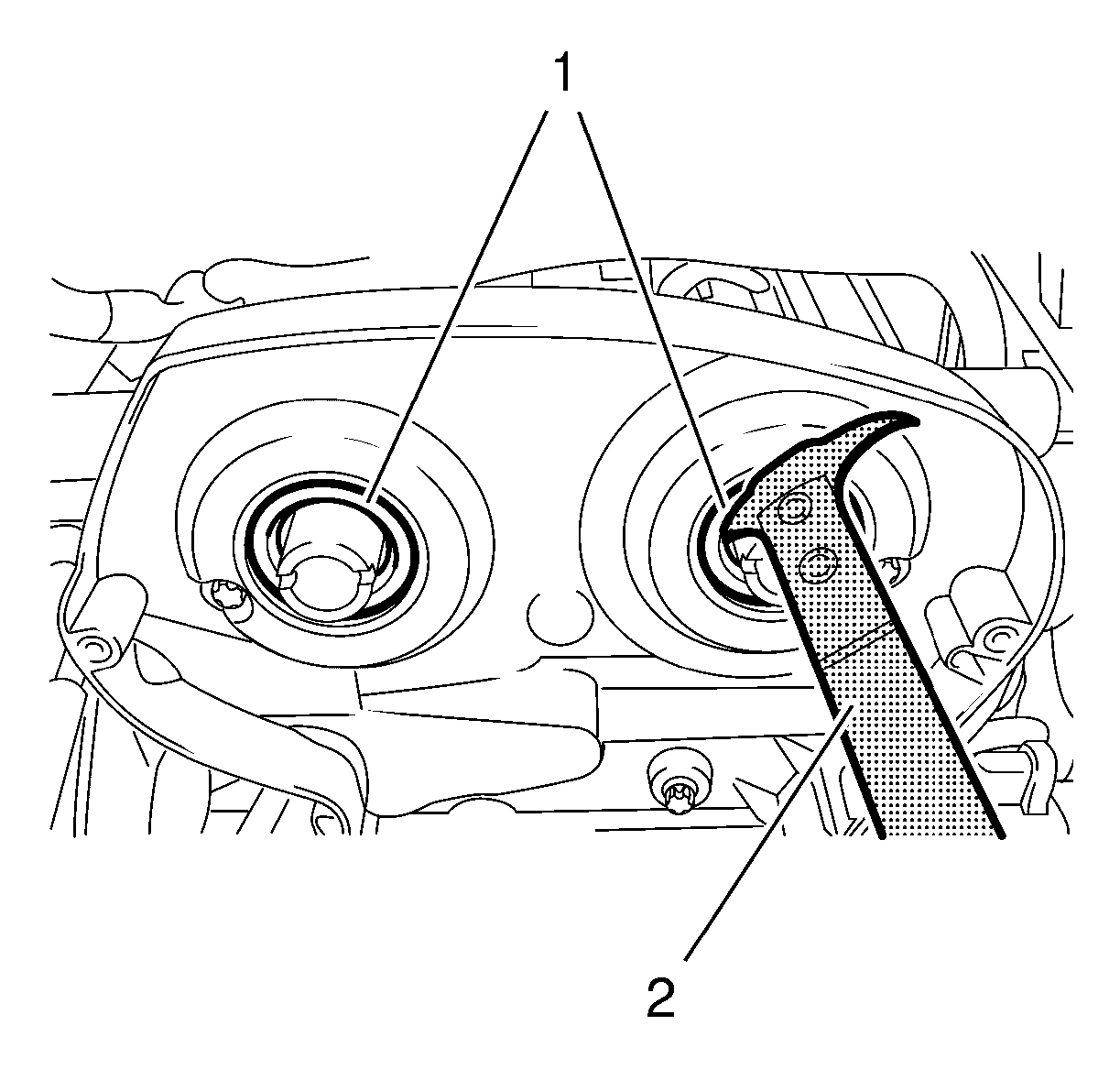

    Fig 1: Camshaft Front Oil Seals And Tool
    GM2191650Courtesy of GENERAL MOTORS COMPANY
    NOTE: Do not damage the sealing surfaces.
  3. Remove the camshaft front oil seals (1).

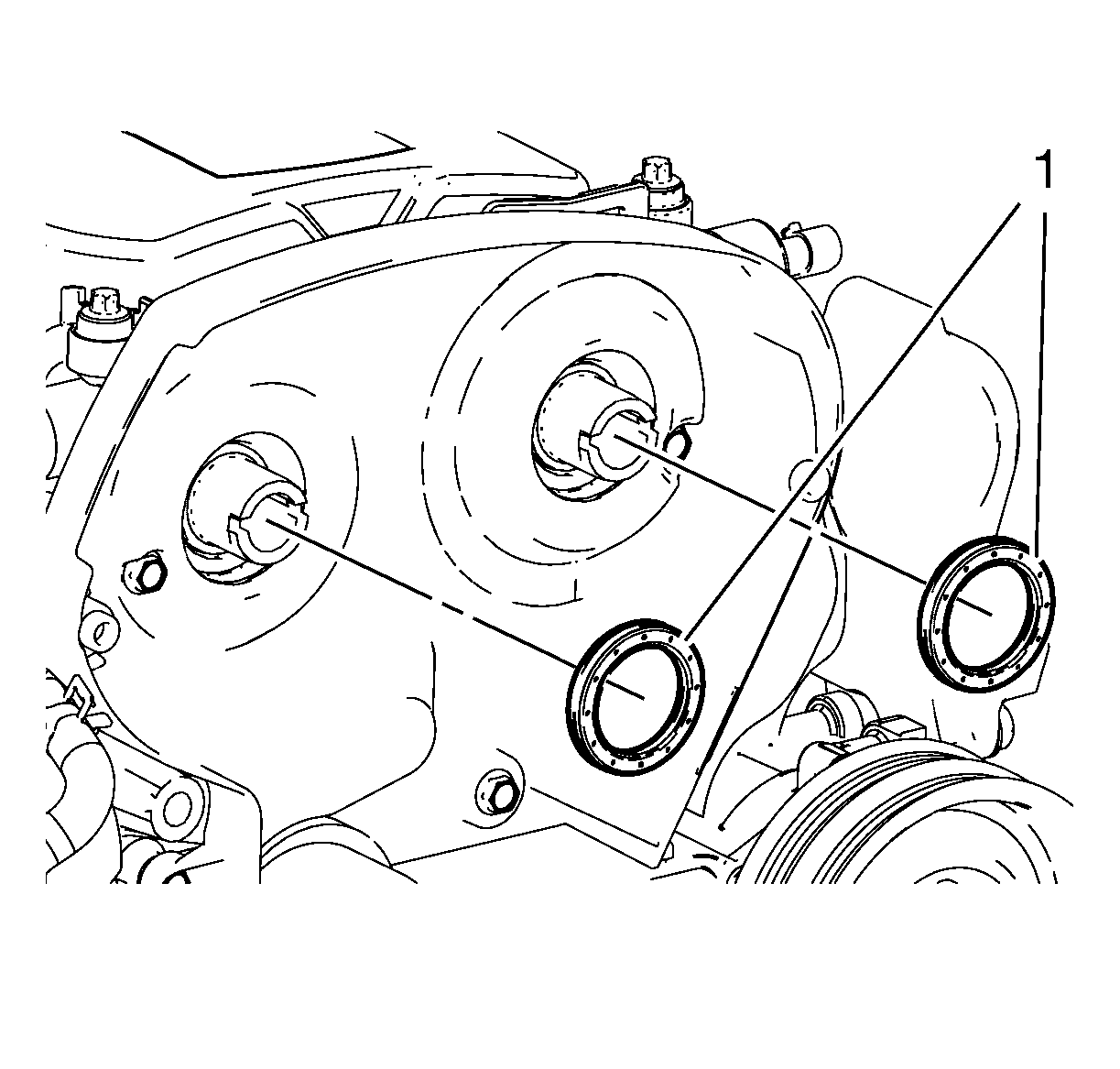

    Fig 2: Camshaft Front Oil Seals
    GM2189265Courtesy of GENERAL MOTORS COMPANY
