Installation Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Install the intake camshaft (1).

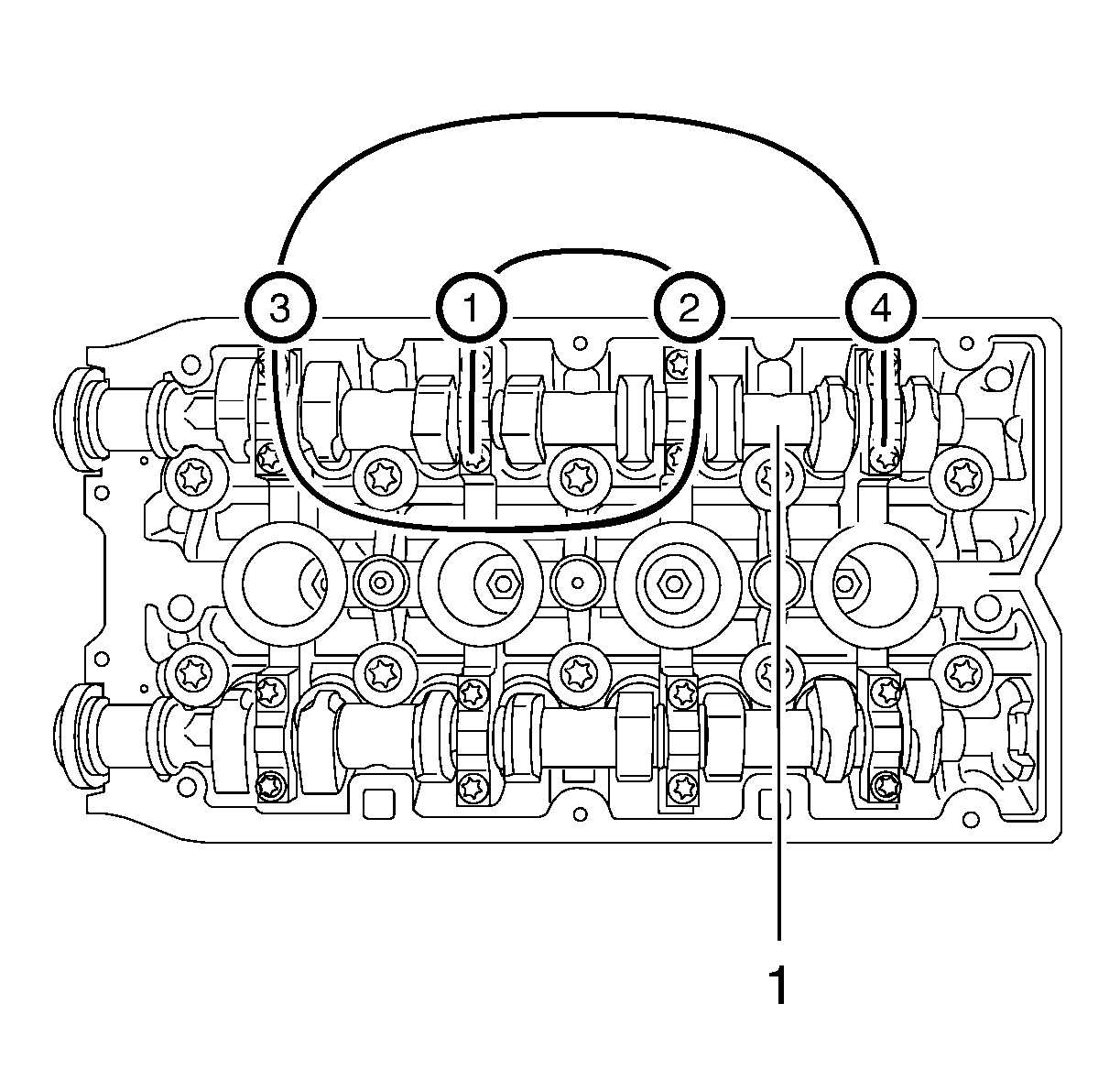

    Fig 1: Intake Camshaft Bearing Cover Bolts Tightening Sequence
    GM2027632Courtesy of GENERAL MOTORS COMPANY
    NOTE: Lubricate with clean engine oil.
  2. Install the 4 intake camshaft bearing cover Numbers 2-5.
    NOTE: Note the identification marking on the camshaft bearing cover.
  3. Install the 8 intake camshaft bearing cover bolts and tighten in a spiral from the inside to the outside to 8 N.m (71 lb in).
    CAUTION: Refer to Fastener Caution .
  4. Install the exhaust camshaft (1).

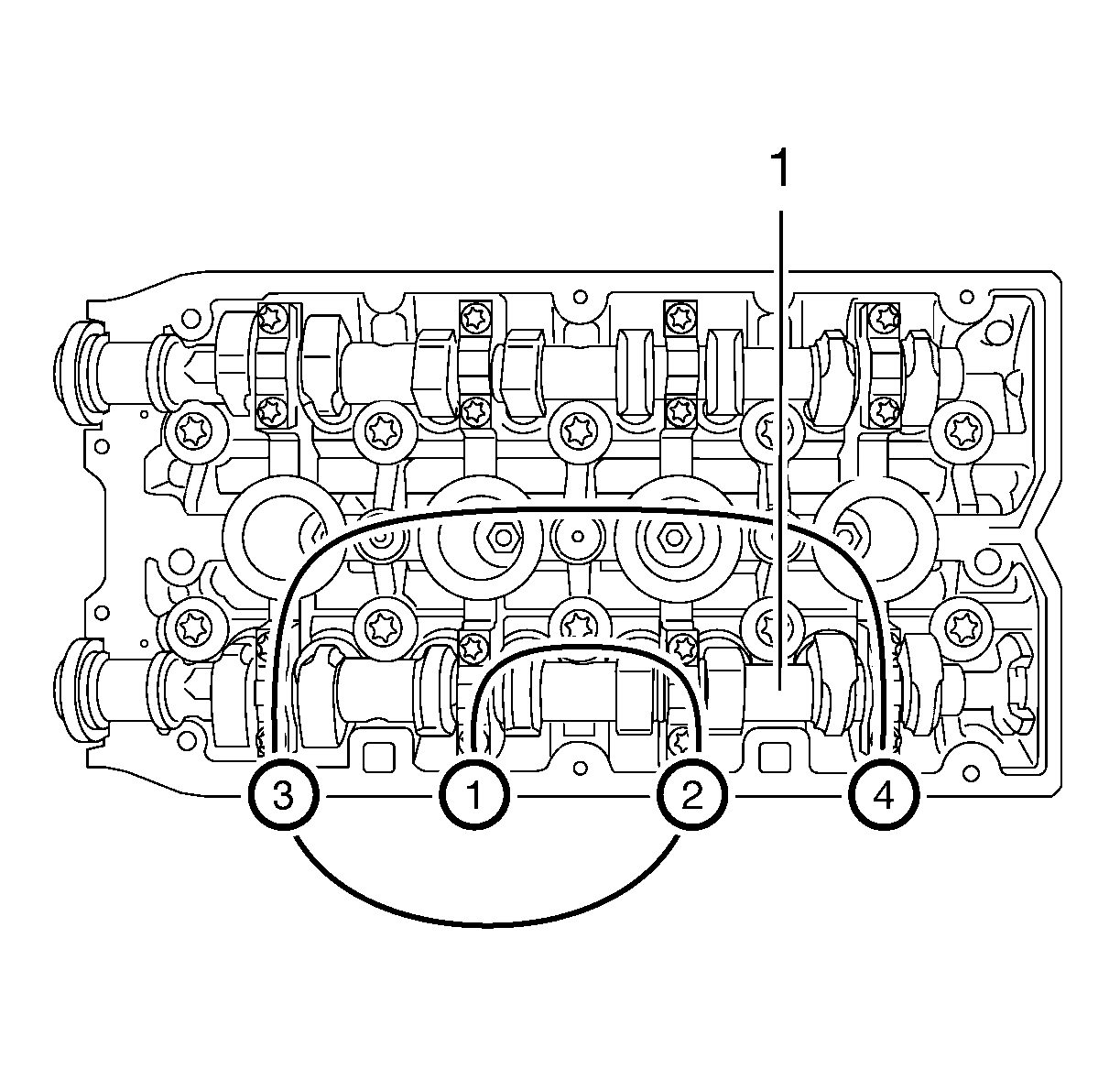

    Fig 2: Exhaust Camshaft Bearing Cover Bolts Tightening Sequence
    GM2027633Courtesy of GENERAL MOTORS COMPANY
    NOTE: Lubricate with clean engine oil.
  5. Install the 4 exhaust camshaft bearing cover Numbers 6-9.
    NOTE: Note the identification marking on the camshaft bearing cover.
  6. Install the 8 exhaust camshaft bearing cover bolts and tighten in a spiral from the inside to the outside to 8 N.m (71 lb in).
  7. Clean sealing surfaces of the first camshaft bearing support and the cylinder head with a suitable tool.
    Fig 3: View Of Oil Duct
    GM1947413Courtesy of GENERAL MOTORS COMPANY
    NOTE: Sealing surfaces must be free from oil and grease.

    Clean oil duct from any sealant residue.

  8. Apply surface sealant to sealing surfaces (1) of the first camshaft bearing cap thinly and evenly.

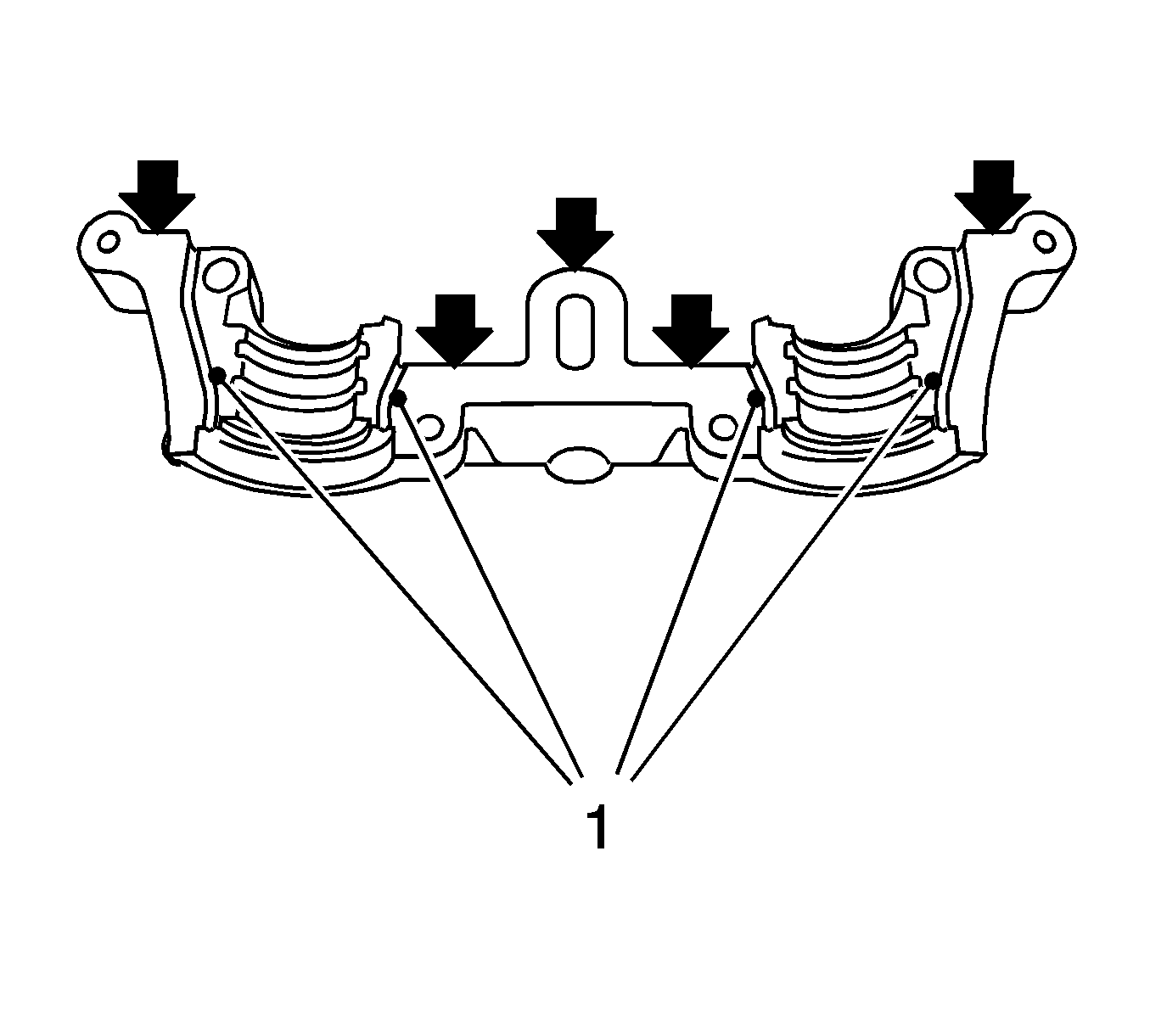

    Fig 4: View Of Sealing Surfaces And Grooves
    GM1947417Courtesy of GENERAL MOTORS COMPANY
    NOTE:
    • Sealing surfaces must be free from oil and grease.
    • It is essential to ensure that no sealant is applied outside the marked sealing areas.
    • The grooves adjacent to the sealing surfaces must remain free from sealant.
  9. Position the first camshaft bearing cap on the cylinder block and tighten the bolts approximately to 2 N.m (18 lb in).
  10. Install the first camshaft bearing cap (1).

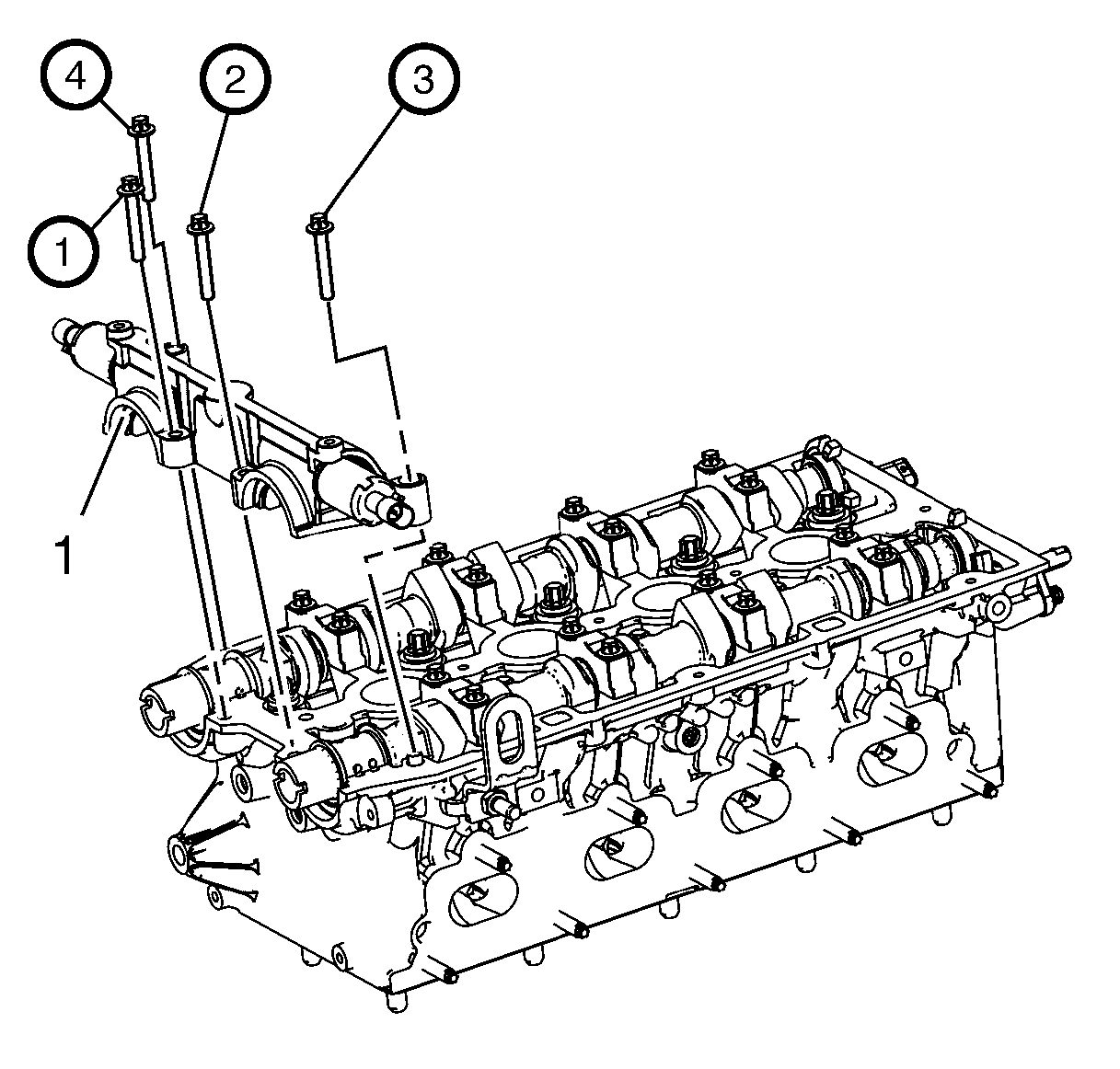

    Fig 5: Camshaft Bearing Cap
    GM2027009Courtesy of GENERAL MOTORS COMPANY
    NOTE: No sealant may reach the camshafts.
  11. Install the first camshaft bearing cap bolts and tighten to 8 N.m (71 lb in).
    NOTE: Note installation sequence 1-4.
  12. Install 2 NEW sealing rings to the camshafts.

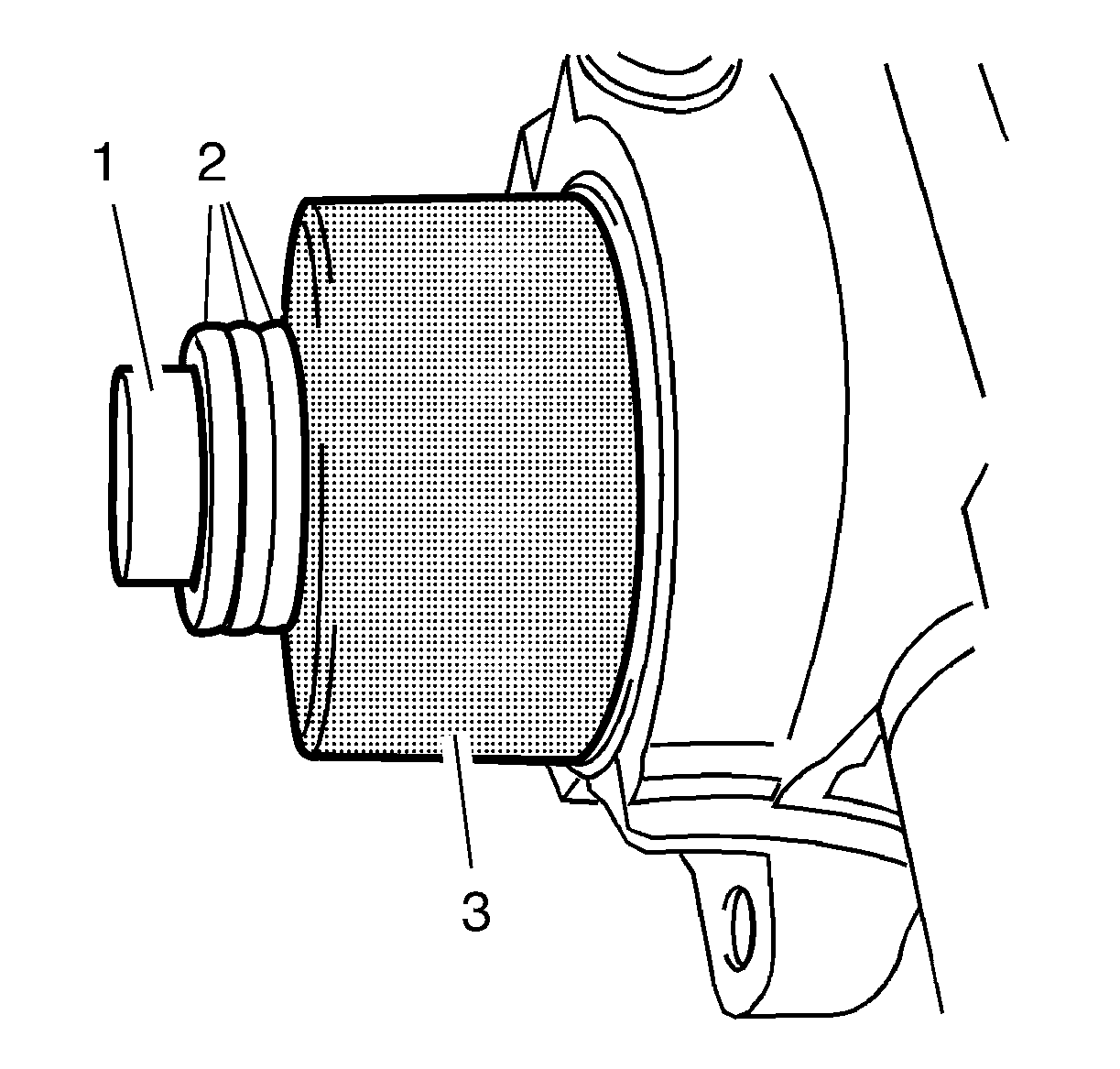

    Fig 6: Camshaft Sprocket Bolt, Shims And Tool
    GM2373396Courtesy of GENERAL MOTORS COMPANY
  13. Tighten the seal ring with EN-422  installer (3) on the camshaft until this is in contact with the cylinder head.
  14. To install, use camshaft sprocket bolt (1) in conjunction with shims (2) with a total thickness of approximately 10 mm (0.394 in).
  15. Remove the EN-422  installer (3).
  16. Turn the intake camshaft against the direction of engine rotation.
  17. Install EN-6628-A  locking tool.
  18. Turn the exhaust camshaft in the direction of rotation of the engine.
  19. Install EN-6628-A  locking tool.
  20. Install exhaust camshaft position sensor. Refer to Camshaft Position Sensor Replacement .
  21. Install intake camshaft position sensor. Refer to Camshaft Position Sensor Replacement .
  22. Install the rear timing belt cover. Refer to Timing Belt Rear Cover Replacement .
  23. Install the camshaft adjuster. Refer to Camshaft Position Actuator Adjuster Replacement .
