Camshaft Position Actuator Solenoid Valve Replacement

WARNING: This page is about a different variant/trim than selected.

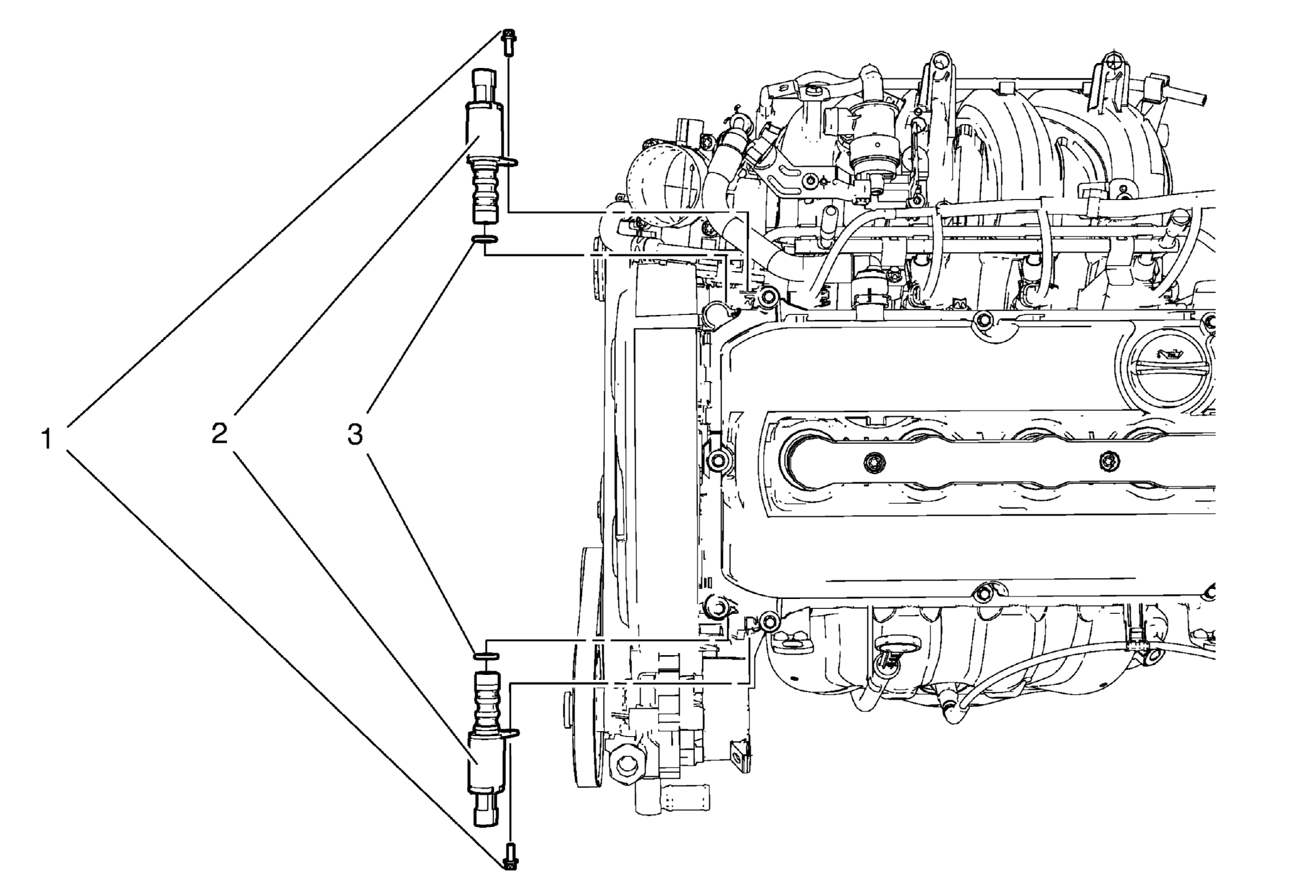

Fig 1: Camshaft Position Actuator Solenoid Valve
GM2028298Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Camshaft Position Actuator Solenoid Valve Bolt (Qty: 2)
CAUTION: Refer to Fastener Caution .

Tighten
6 N.m (53 lb in)
2 Camshaft Position Actuator Solenoid Valve (Qty: 2)
3 Camshaft Position Actuator Solenoid Valve Seal (Qty: 2)
TIP:  Coat the camshaft position actuator solenoid valve seals with NEW engine oil.
