Removal Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Remove the ignition coil. Refer to Ignition Coil Replacement .
  2. Unclip the ECM wiring harness guide (1) from the cylinder head cover.

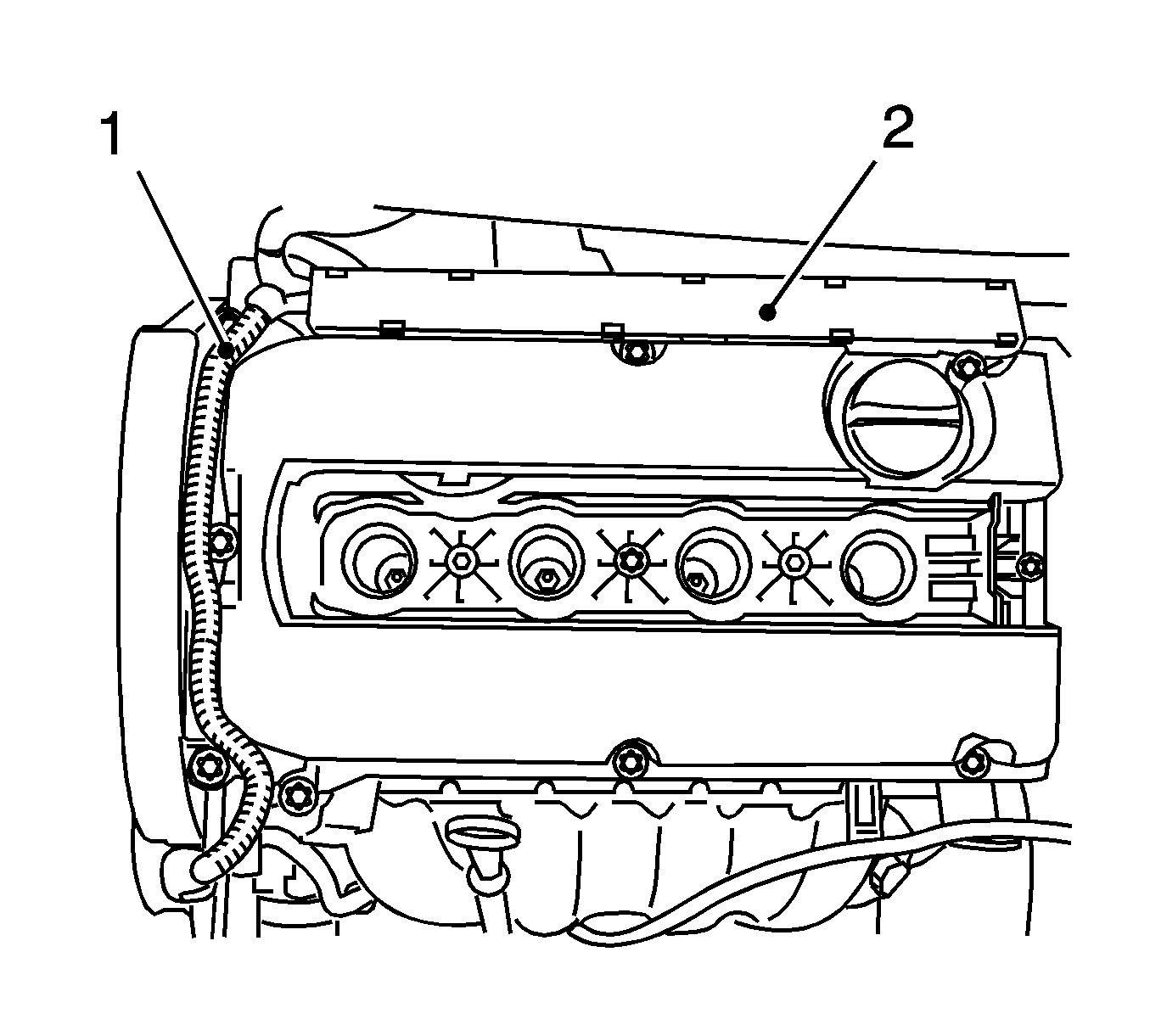

    Fig 1: Wiring Harness Guide And Cylinder Head Cover
    GM1945815Courtesy of GENERAL MOTORS COMPANY
  3. Disconnect the wiring guide (2).
  4. Remove the positive crankcase ventilation tube. Refer to Positive Crankcase Ventilation Hose/Pipe/Tube Replacement .
  5. Remove the 11 bolts (2, 3).

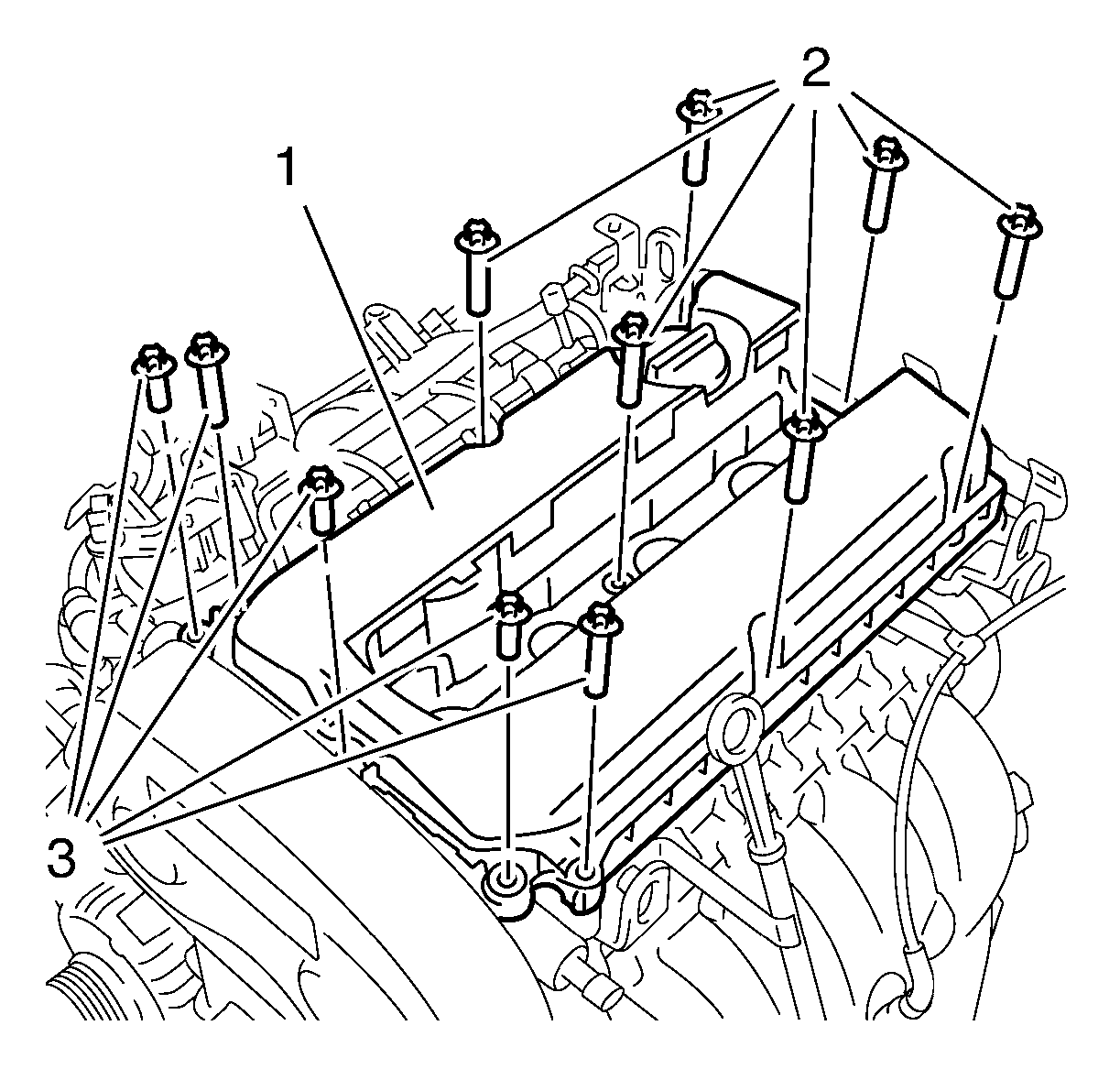

    Fig 2: Camshaft Cover And Bolts
    GM2026821Courtesy of GENERAL MOTORS COMPANY
  6. Remove the camshaft cover (1).
