Installation Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Clean the bolt and the camshaft cover bolt (4) thread.

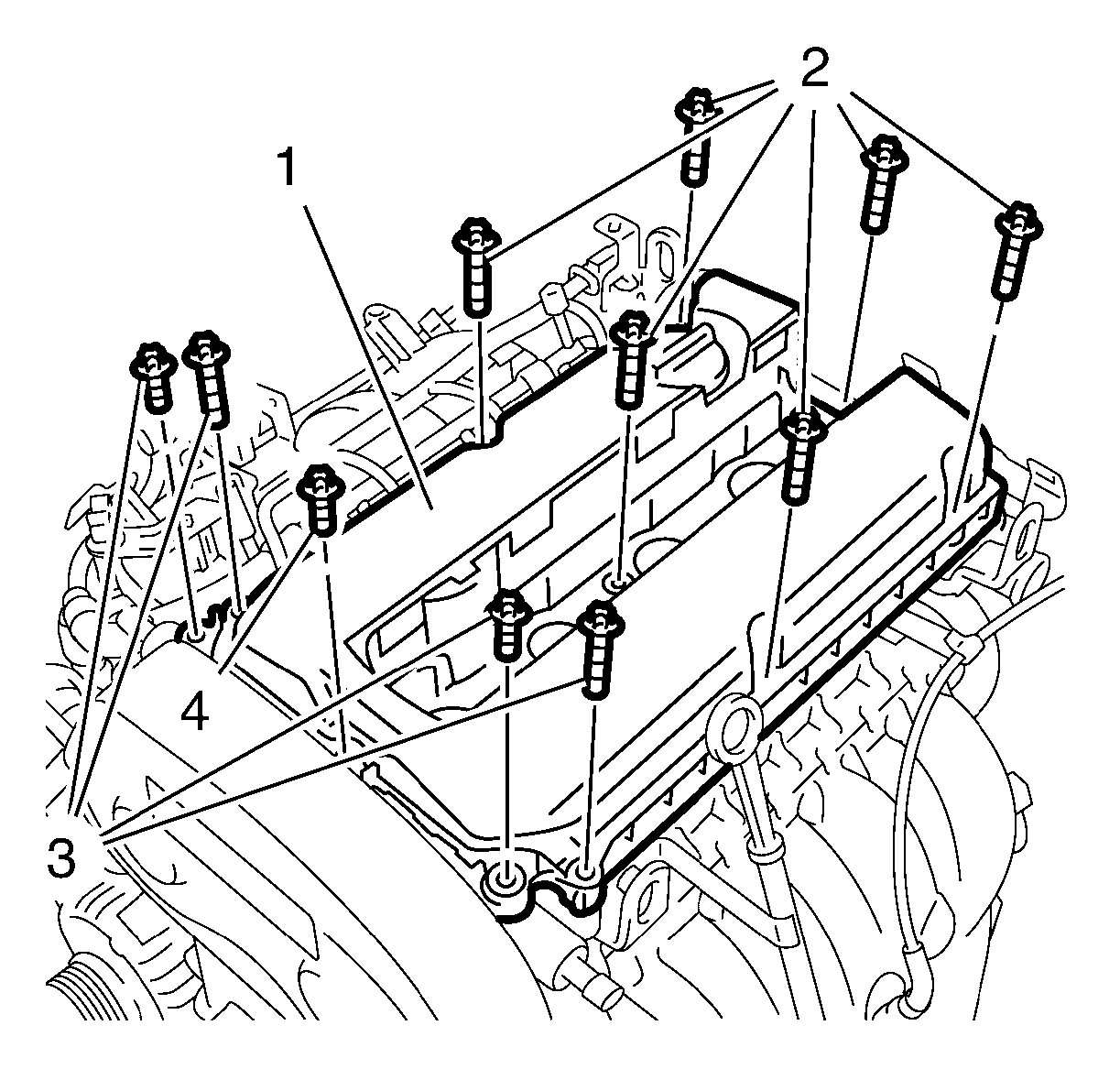

    Fig 1: Camshaft Cover Bolt
    GM3213247Courtesy of GENERAL MOTORS COMPANY
  2. Apply sealant to the camshaft cover bolt (4). Refer to Adhesives, Fluids, Lubricants and Sealers
  3. Insert a NEW gasket in the cylinder head cover.
  4. Install the camshaft cover (1).
  5. Install the 11 bolts (2, 3, 4) and tighten to 8 N.m (71 lb in).
    CAUTION: Refer to Fastener Caution .
  6. Install the positive crankcase ventilation tube. Refer to Positive Crankcase Ventilation Hose/Pipe/Tube Replacement .
  7. Clip in the ECM wiring harness guide (1) to the cylinder head cover.
    Fig 2: Wiring Harness Guide And Cylinder Head Cover
    GM1945815Courtesy of GENERAL MOTORS COMPANY
  8. Connect the wiring guide (2).
  9. Install the ignition coil. Refer to Ignition Coil Replacement .
